3" x 1-1/4" Cast Iron V-Groove Wheel Swivel Caster
SKU
Q523001VG
Regular price
$20.08
Couldn't load pickup availability

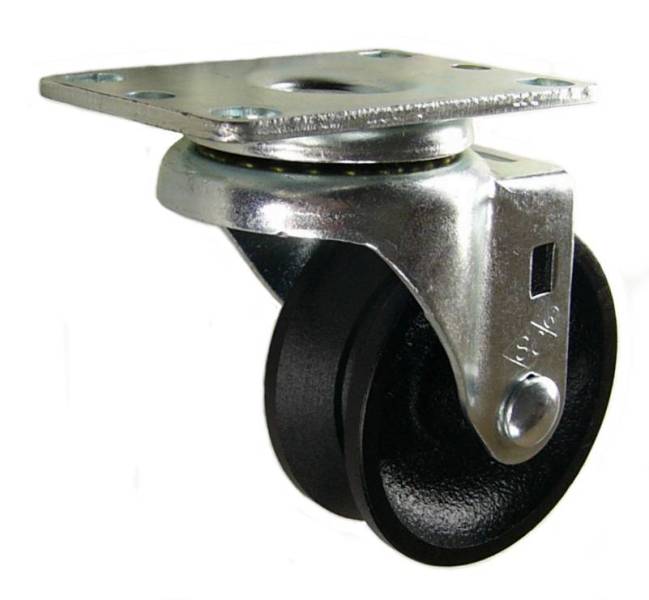

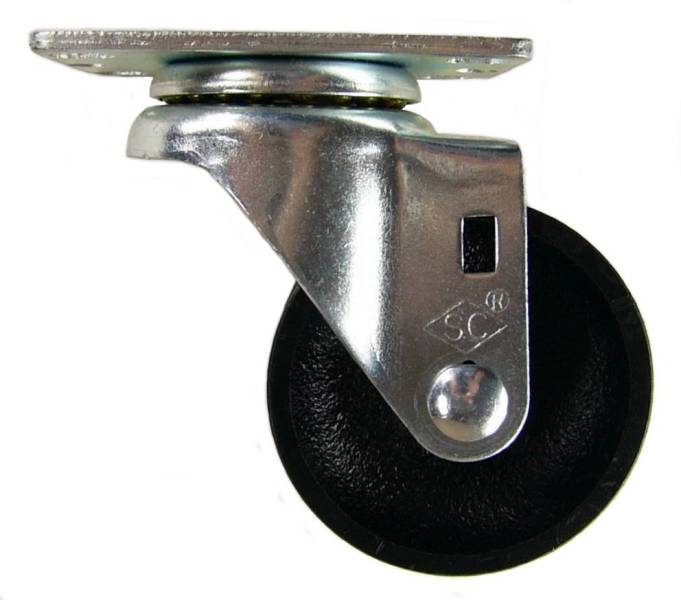

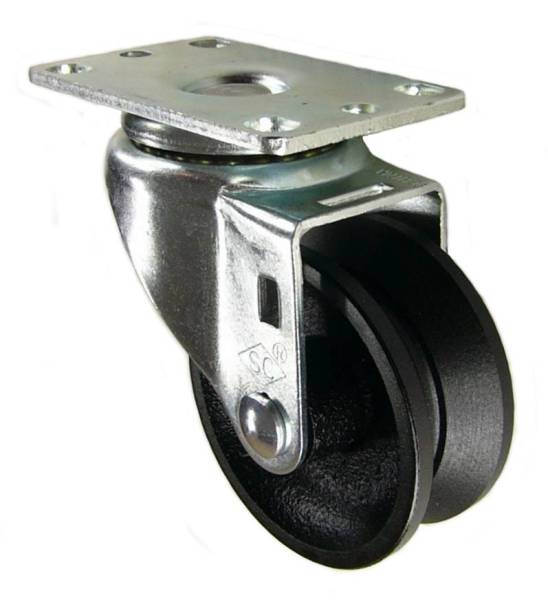

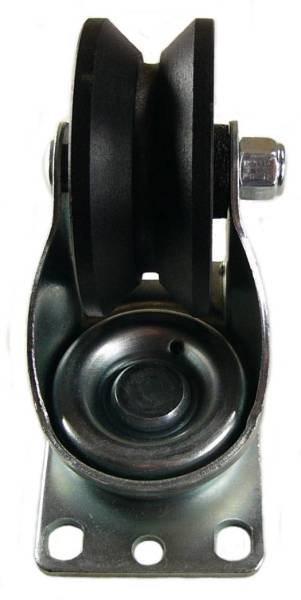

3" x 1-1/4" Cast Iron V-Groove Wheel Swivel Caster - Part # Q523001VG
V groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the larger sizes or the heavier duty ducitle steel and forged steel wheels.
Specifications:
| Load Capacity (lbs.): 350 | Link to Matching Rigid Caster: Q5230R01VG |
| Wheel Diameter: 3" | Wheel Durometer: Brinell 145 |
| Tread Width: 1-1/4" | Wheel Color: Black |
| Wheel Type: Cast Iron V-Groove | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: Plain Bore | Swivel Radius: 2-15/16" |
| Overall Height: 4-1/8" | Swivel Construction: Double Ball Raceway |

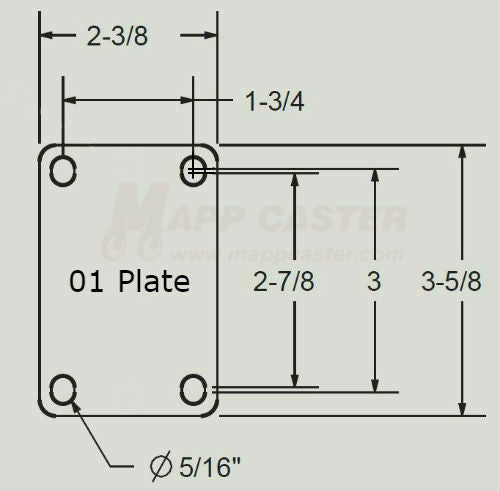

| Temp Range: - 45°F to 600°F | Mounting Plate: 2-3/8" x 3-5/8" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 5/16" or Smaller |
| Link to Replacement Wheel: LVG314 | Weight: 1.94 Lbs |
