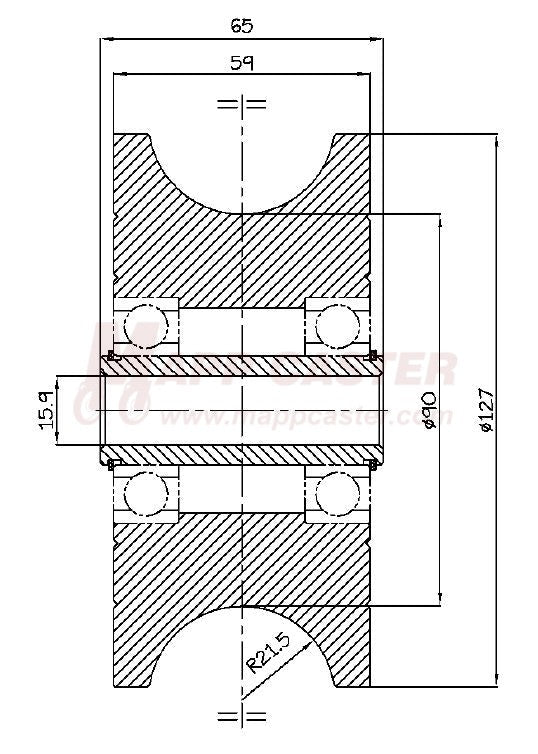

5" x 2-5/16" U-Groove Solid Steel Wheel - Part # PMUG5050SB Drawing
5" x 2-5/16" U-Groove Solid Steel Wheel - Part # PMUG5050SB Drawing

5" x 2-5/16" U-Groove Zinc Plated Steel Wheel - 6,000 Lbs Capacity

SKU

PMUG5050SB
$111.24

5" x 2-5/16" U-Groove Solid Steel Wheel - Part # PMUG5050SB

This 5" x 2-5/16" U-groove wheel is made out of solid steel providing exceptionally low rolling resistance, outstanding wear resistance, and extremely high static and dynamic load capacity.

This wheel is designed to be used with pipe with and O.D. of 1-5/8" or smaller

Specifications:

Capacity (lbs.): 6,000

Hub Length: 2-9/16"

  • For 1" & 25mm bearings options hub length is 2-5/16"
Wheel Diameter: 5" Groove Width: 1.680"
Tread Width: 2-5/16" Groove Depth: 5/8"
Wheel Type: Solid Steel U-Groove Durometer: N/A
Bearing ID: See Bearing Options Temp Range: -40˚F to 180˚F
Bearing Type Sealed Ball Bearings Weight: 9.00 Lbs
