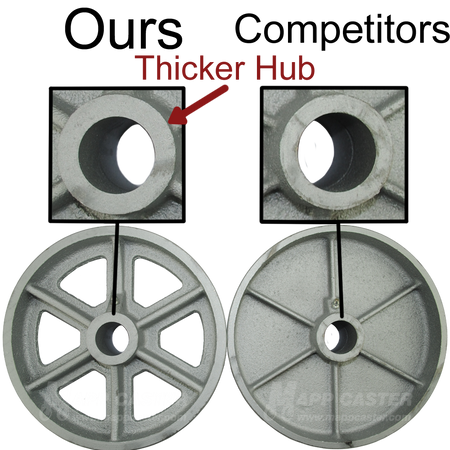

5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB THICKER HUB

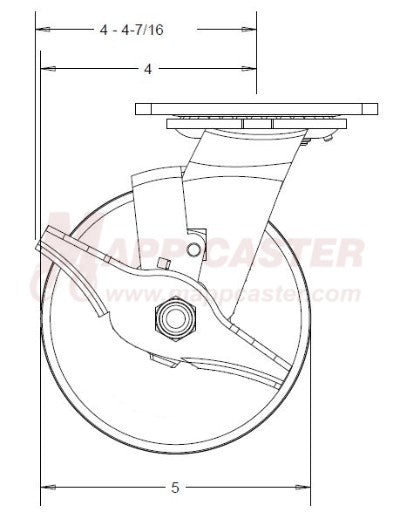

5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB SIDE VIEW
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB FRONT VIEW
5" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster - 1,200 Lbs Capacity Part # P51052CIRBTLB
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB COMPETITORS
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB THICKER TREADS
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB THICKER CORE
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB THICKER HUB
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB SIDE VIEW
5" x 2" Cast Iron Wheel Swivel Brake Caster - 1,200 Lbs Capacity 146CIRB520SB FRONT VIEW

5" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster - 1,200 Lbs Capacity

SKU

P51052CIRBTLB
$81.31

5" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster - Part # P51052CIRBTLB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

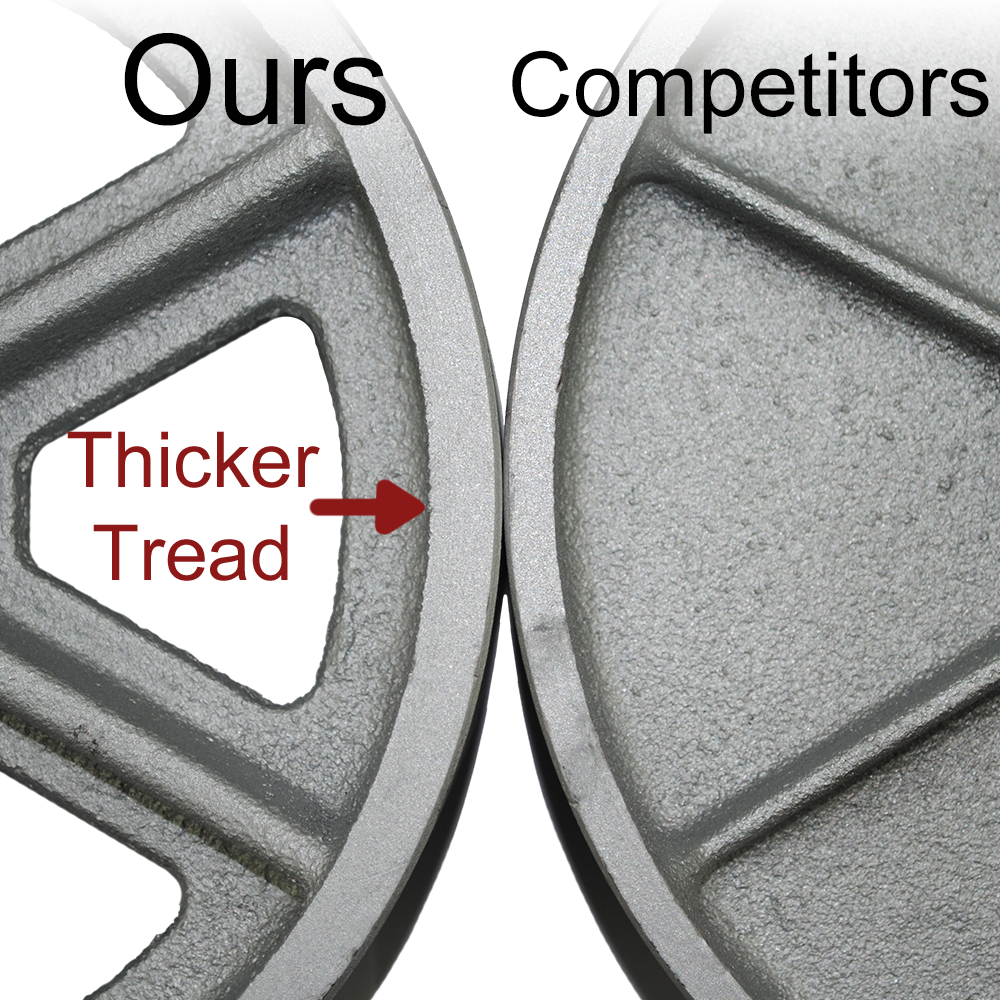

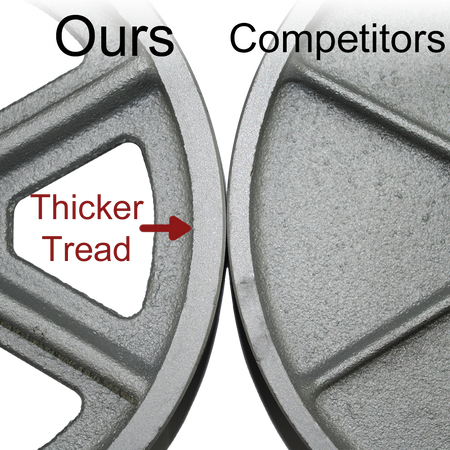

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Load Capacity (lbs.): 1200 Link to Matching Rigid Brake Caster: P50052CIRBTLB
Wheel Diameter: 5" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Cast Iron Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 4"

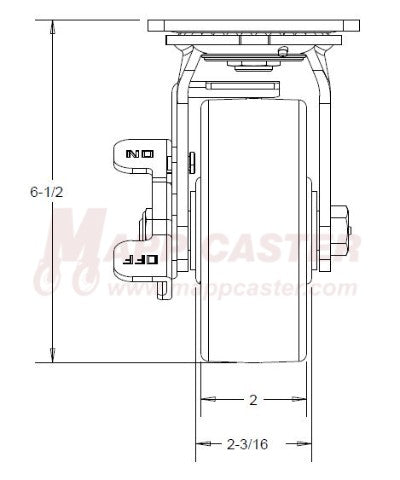

Overall Height: 6-1/2" Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

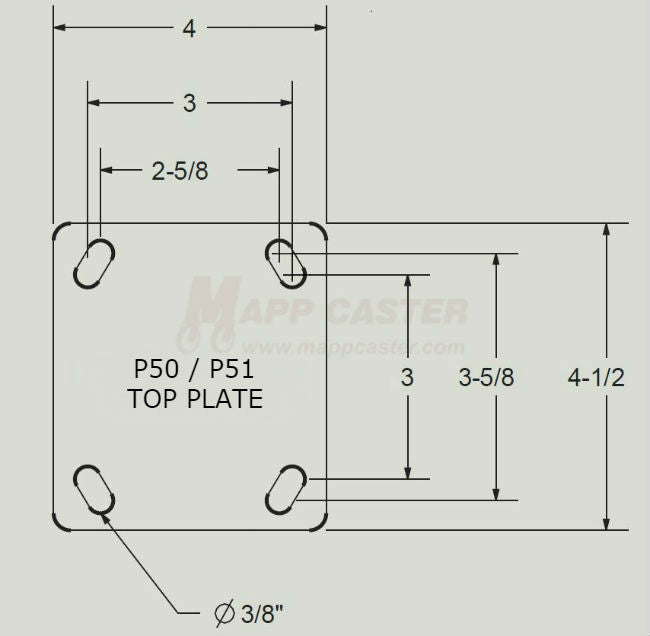

Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Brinell 145 Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Silver Mounting Bolt Size: 3/8" or Smaller

Link to Replacement Wheel: QSTL5MO

 Weight: 8.842 lbs.
