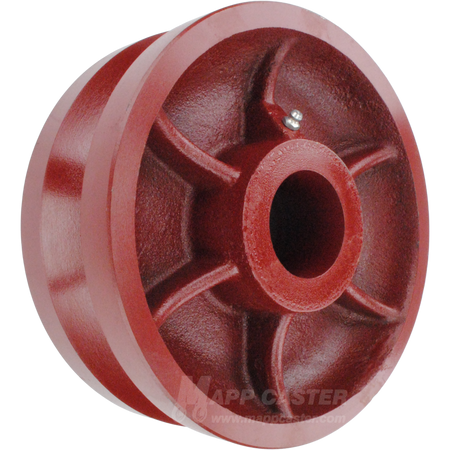

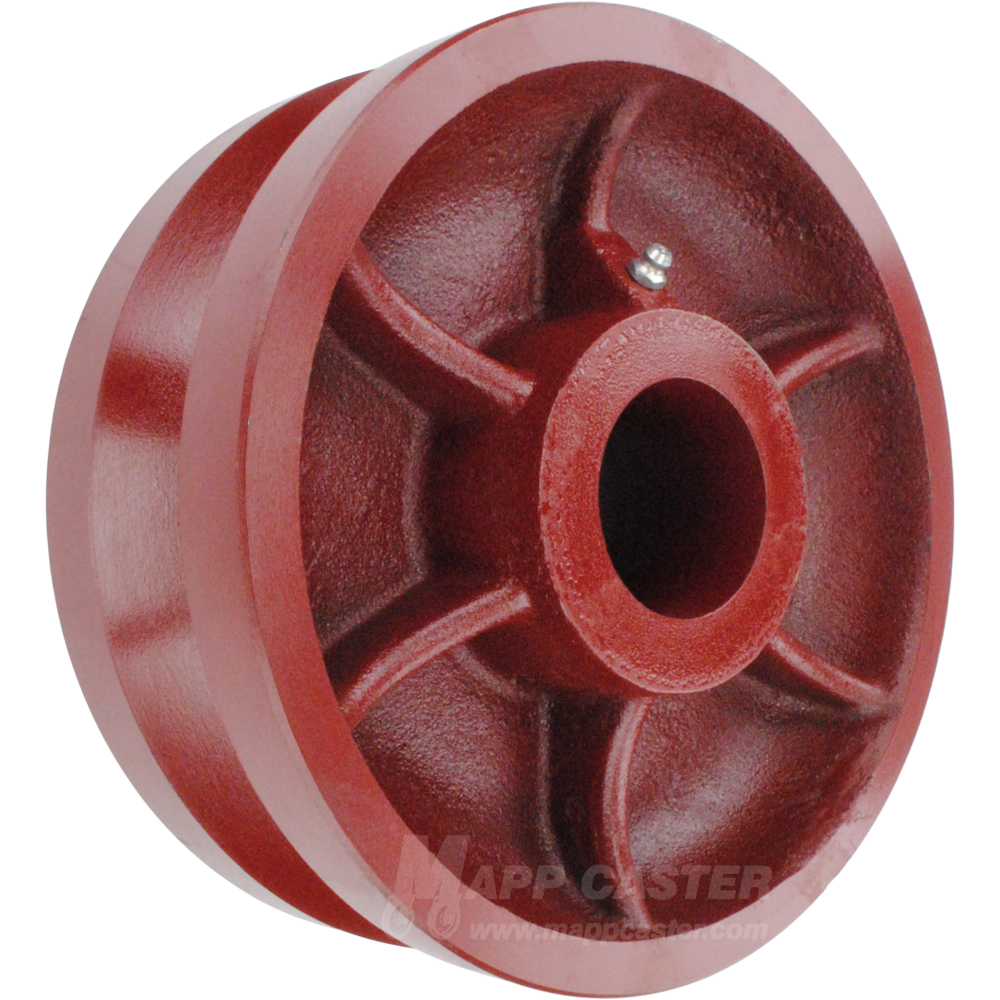

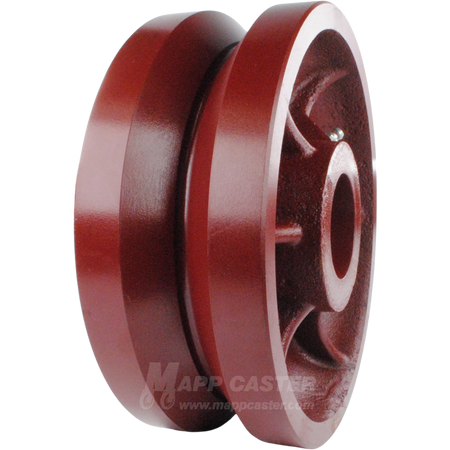

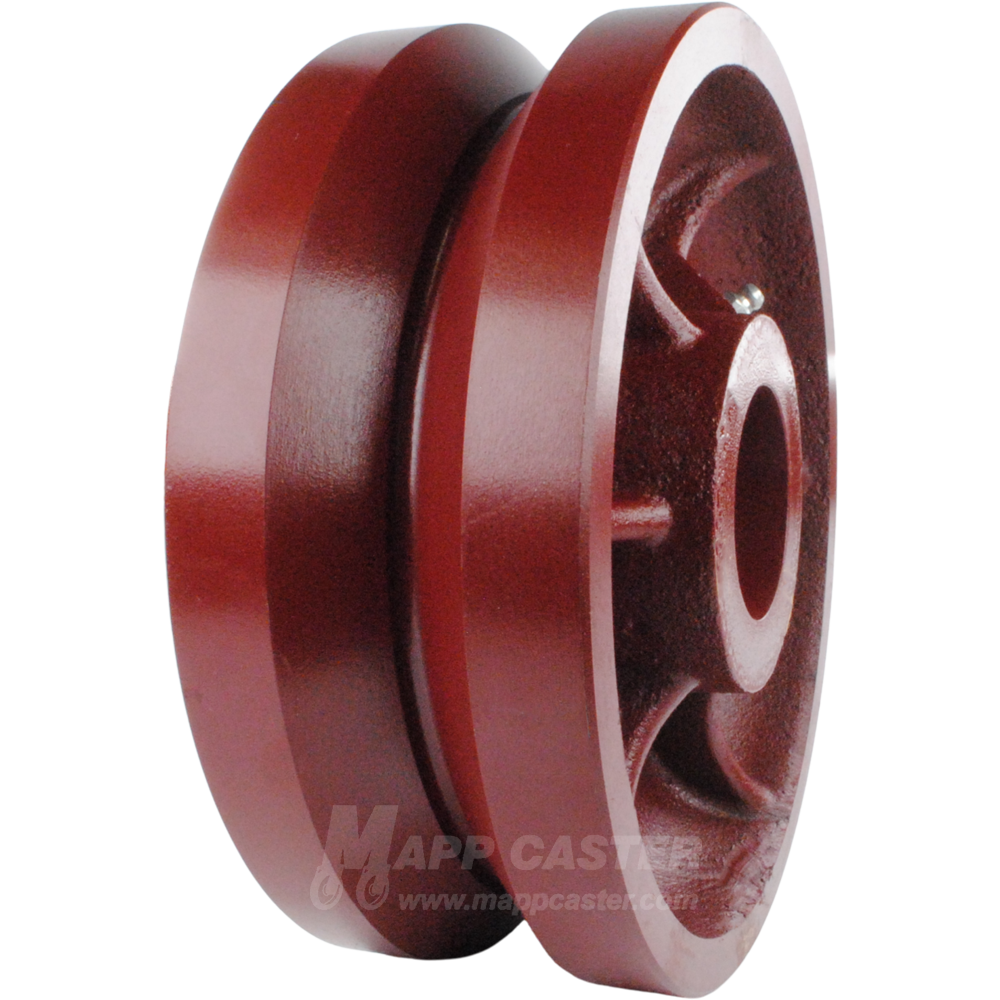

8" x 3" V-Groove Ductile Steel Wheel (1-3/8" Wide Groove) - 5,000 Lbs Capacity

SKU

LDV80LW85
$243.15

8" x 3" V-Groove Ductile Steel Wheel - Part # LDV80LW85

Ductile steel is a combination of alloys that provide more capacity, impact strength, and durability when compared to cast iron wheels. These wheels are a great choice for those wanting an improvement from cast iron. For maximum weight capacities, impact strength, and durability, check out our forged steel v-groove wheels.

V groove wheels are designed to guide equipment by rolling on inverted angle iron track. Please note if more than one track is being used, it is critical for the tracks to be parallel, strait and level. Otherwise the wheels could bind or derail. Recommend track tolerance is 1/64" per 20 Feet.

Please note temperature ratings are dependent upon the bearings selected.

Specifications:

Capacity (lbs.): 5,000 Hub Length (Plain Bore): 3-1/4"
Wheel Diameter: 8"

Hub Length (with Bearings): 3-3/8"

  • 3-1/4" for bearing options that say "short"
  • All other lengths will be listed in the bearing options.
Tread Width: 3" Groove Width: 1-3/8"
Wheel Type: Ductile Steel Groove Depth: 11/16"
Plain Bore ID: 1-15/16" Durometer: Rockwell 74B
Bearing ID: See Bearing Options Temp Range: -45˚F to 800˚F Dependent on Bearings Selected
Bearing Type: See Bearing Options Weight: 11 Lbs
