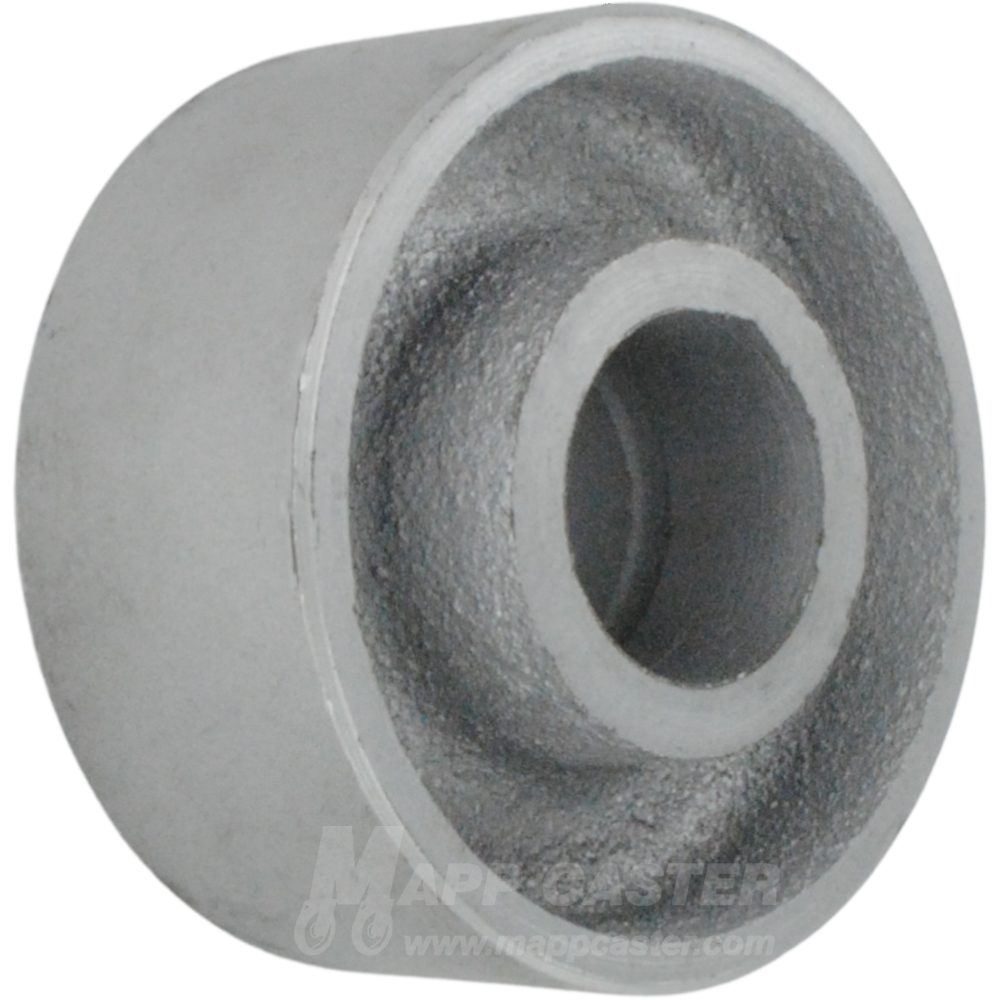

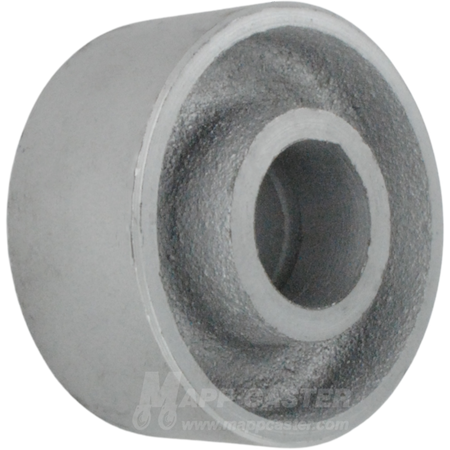

Cast Iron Wheel 3-1/4" by 1-1/2" - 400 lbs capacity
SKU
LSS3415Couldn't load pickup availability
Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance. Smooth face allows for symmetrical ride.
Common Applications: Dollies, Parts Bins, Portable Storeage Racks, Bakery Racks, Food Service Applications, Rolling Tool Boxes, Lighter General Duty Uses, Store Displays & Merchandisers, Laundry Carts, Linen Baskets & Hampers
Wheel comes without bearings. Please select the type of bearing you would like by clicking on the drop down labeled bearings next to the picture. For more information on bearings, please visit our buying guide.
Wheel Specifications:
| Load Capacity (lbs.): 400 | Hub Length (Plain Bore): 1-5/8" |
| Wheel Diameter: 3-1/4" | Hub Length (with Bearings): 1-7/8"
|
| Tread Width: 1-1/2" | Wheel Color: Silver |
| Bearing Type: See Bearing Options | Wheel Durometer: Brinell 145 |
| Plain Bore ID: 1-3/16" | Low Temp Range: - 40˚F |
| Bearings ID: See Bearing Options | High Temp Range: 600˚F - Dependent on Bearings Selected |
| Wheel Type: Cast Iron | Weight: 2.00 Lbs |
