8" x 3" Forged Steel V-groove Wheel Swivel Caster - 5000 lbs Capacity
SKU
P8008301251Couldn't load pickup availability
The forged wheel is the ultimate heavy duty wheel. Forged steel has the maximum weight capacity, impact strength, durability, abrasion resistance, and roll-ability of all our wheels.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Caster Specifications
| Load Capacity (lbs.): 5,000 | Matching Rigid Caster: P8008301252 |
| Wheel Diameter: 8" | Wheel Durometer: Rockwell 80B |
| Tread Width: 3" | Wheel Color: Silver |
| Wheel Type: Forged Steel V-Groove | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearing Options | Swivel Radius: 6-1/4" |
| Overall Height: 10-1/2" | Swivel Construction: Kingpinless - 3/8" Ball Bearings |

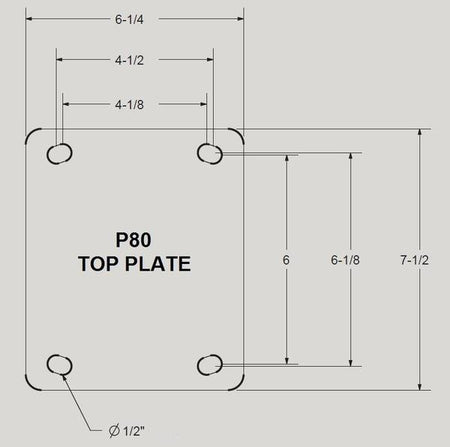

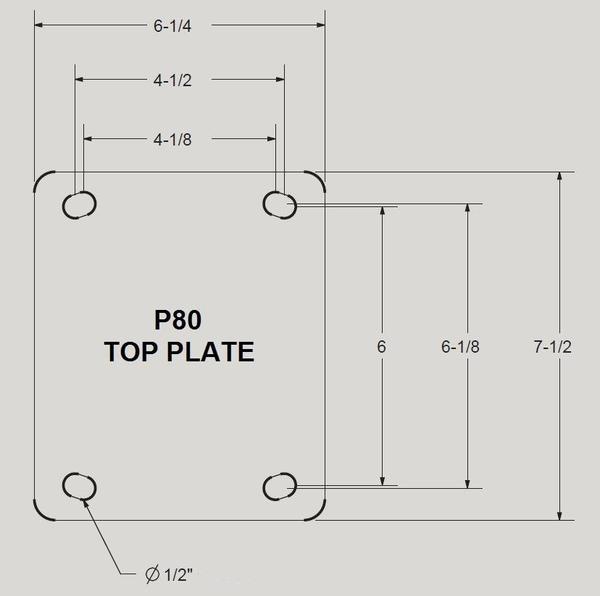

| Temp Range: - 45°F to 1,300°F* | Mounting Plate: 6-1/4" x 7-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 4-1/2" x 6" to 4-1/8" x 6-1/8" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: P083012520 | Weight: 39 Lbs |
V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.
Common Applications: V-groove wheels are used for where precise alignment or indexing of equipment is necessary. These casters are capable of guiding industrial ovens, paint booths, gates, inverted track and other similar equipment.
