8" x 3" Ductile Steel Rigid Caster
SKU
P7008301112Couldn't load pickup availability
Ductile steel has similar capacities, impact strength, and durability when compared to forged steel wheels, but is more economically priced. Ductile steel is a combination of alloys that give it a much higher weight capacity than standard cast iron wheels, but not quite the capacity and durability of forged steel wheels.
While ductile steel is very resilient, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Caster Specifications:
| Load Capacity (lbs.): 5,400 | Matching Swivel Caster: P7108301111 |
| Wheel Diameter: 8" | Caster Rig Material Type: AISI 1045 Heat Treated Laser Cut Steel |
| Tread Width: 3" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Ductile Steel | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 10-1/2" | Swivel Construction: N/A |

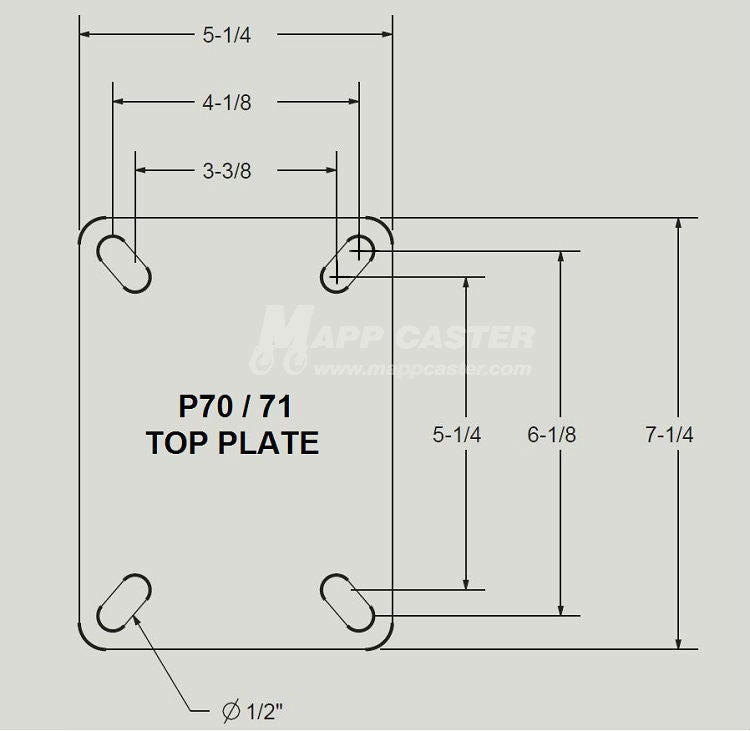

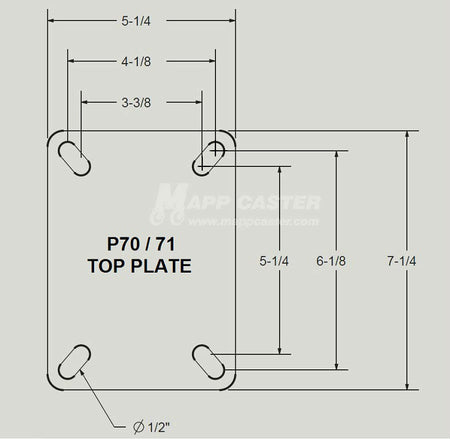

| Temp Range: -45°F to 800°F (Depending on Bearings) | Mounting Plate: 5-1/4" x 7-1/4" |
| Wheel Hardness: Rockwell 74B | Bolt Hole Pattern: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Wheel Color: Dark Red | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: LDS830 | Weight: 30.00 lbs. |
