8" x 3" Cast Iron Wheel Rigid Caster
SKU
P7008301102Couldn't load pickup availability
Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride
Common Applications: Platform Trucks, Material Handling Carts, A-Frame Carts, Freight Terminal Dollies, Ground Support Equipment, Gantries and Hoppers, Trash Containers.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Caster Specifications:
| Load Capacity (lbs.): 2,500 | Matching Swivel Caster: P7108301111 |
| Wheel Diameter: 8" | Caster Rig Material Type: AISI 1045 Heat Treated Laser Cut Steel |
| Tread Width: 3" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 10-1/2" | Swivel Construction: N/A |

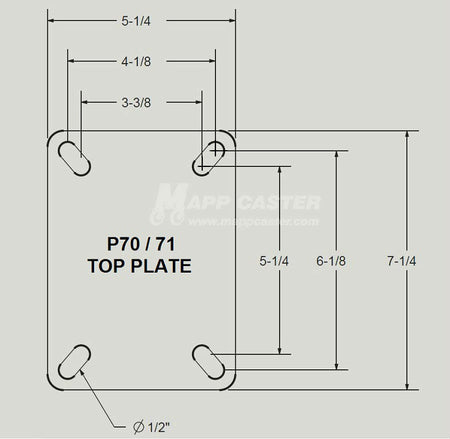

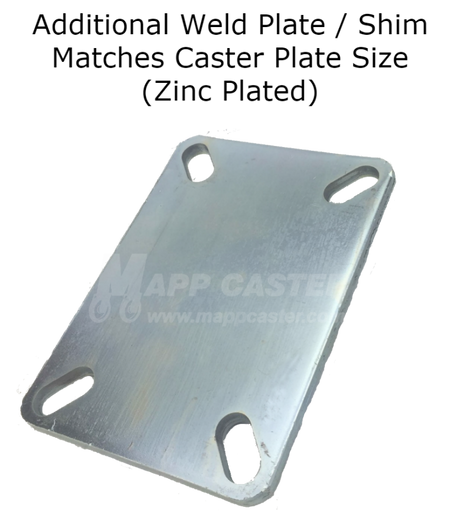

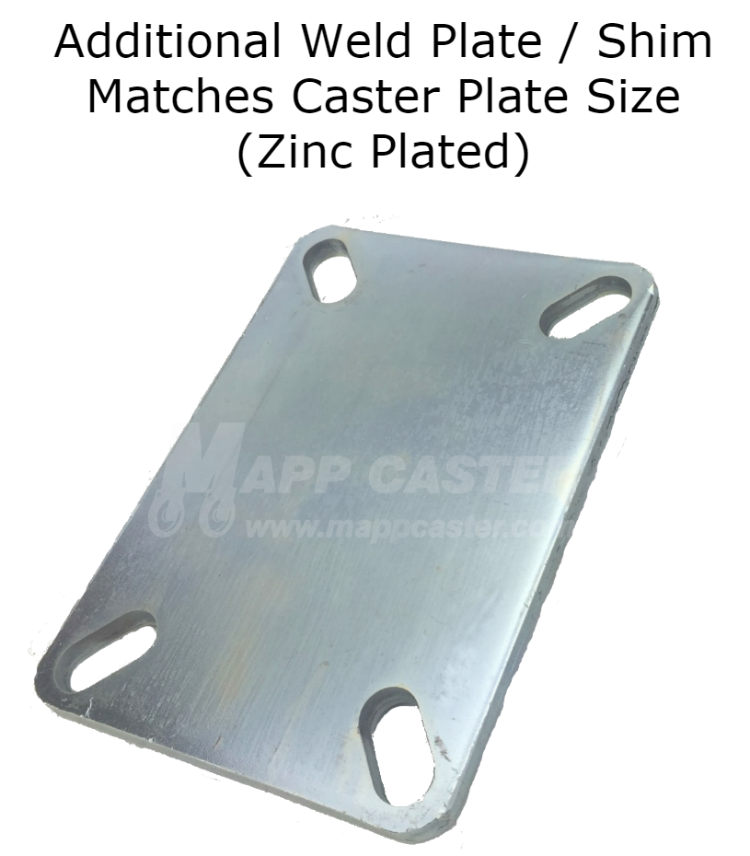

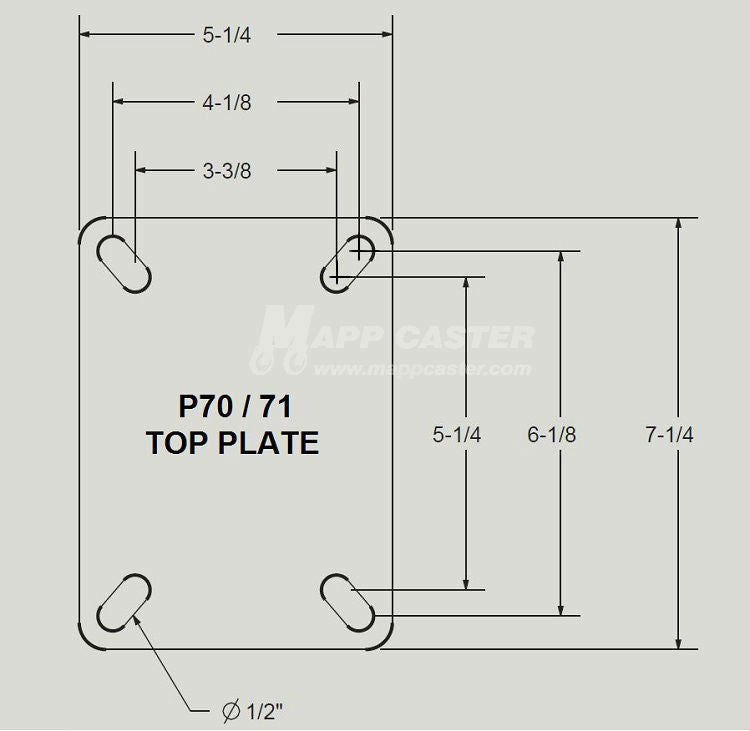

| Temp Range: -45°F to 600°F | Mounting Plate: 5-1/4" x 7-1/4" |
| Wheel Hardness: Brinell 145 | Bolt Hole Pattern: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Wheel Color: Grey | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: QSTL8R0 | Weight: 26.00 lbs. |
