8" x 2" Ductile Steel Wheel Swivel Caster w/ Total Lock Brake
SKU
146DUCT820SBTLCouldn't load pickup availability
8" x 2" Ductile Steel Wheel Swivel Caster w/ Total Lock Brake - Part #: 146DUCT820SBTL
Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.
For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.
Specifications:
| Load Capacity (lbs.): 1,250 | Link to Matching Rigid Brake Caster: 146DUCT820RB |
| Wheel Diameter: 8" | Caster Rig Material Type:Â AISIÂ 1045 Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type:Â Ductile Steel | Swivel or Rigid Caster:Â Swivel |
| Wheel Bearing Type:Â See Bearings Options |
Swivel Radius: 6-5/8" |
|

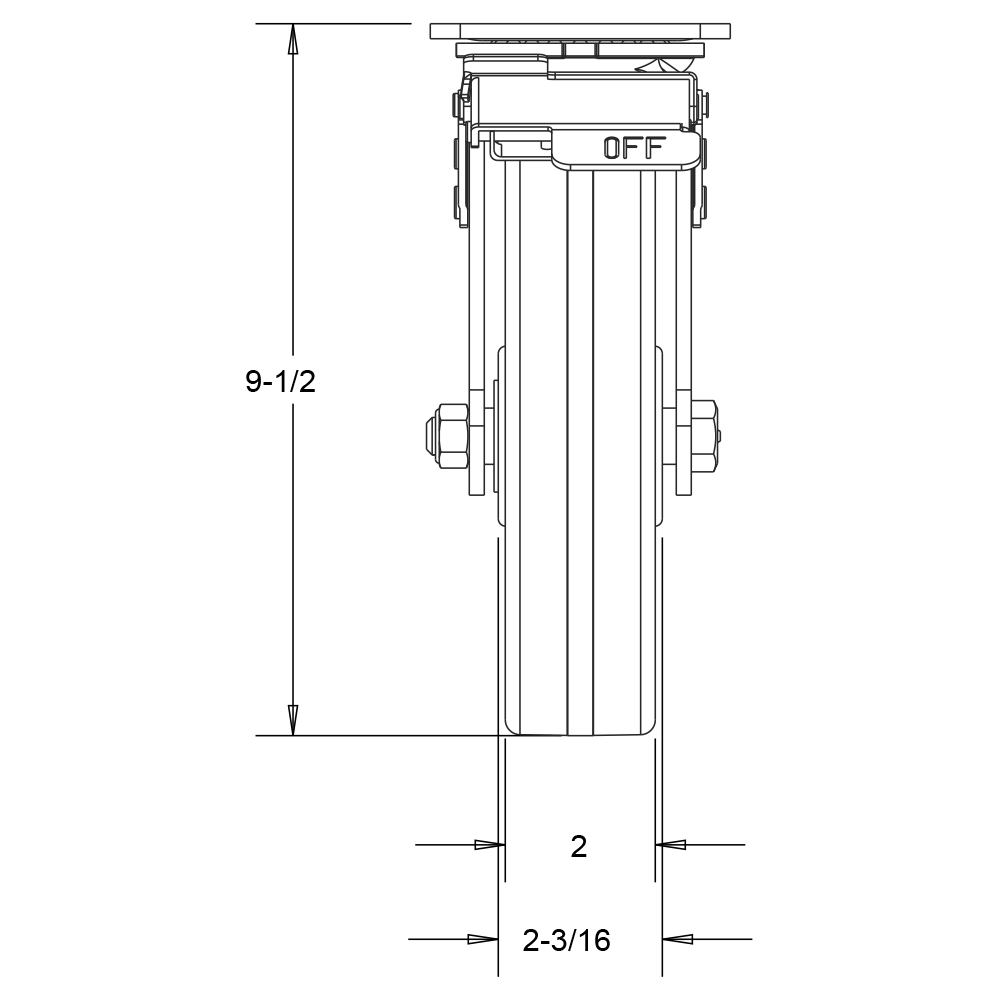

Overall Height: 9-1/2" |
Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Temp Range: -45°F to 800°F | Mounting Plate: 4" x 4-1/2" |

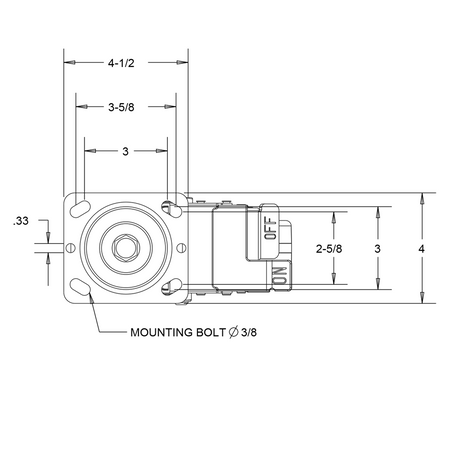

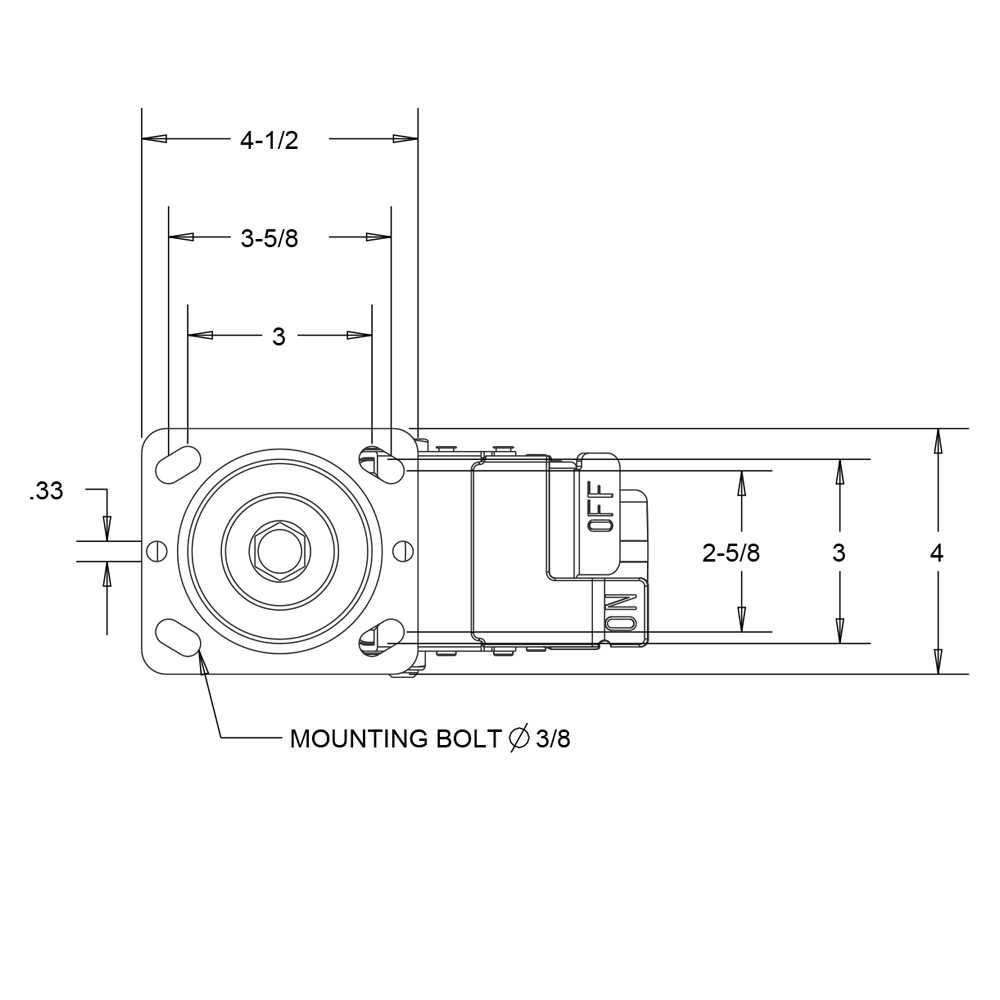

| Wheel Durometer:Â Rockwell 75BÂ | Bolt Hole Pattern:Â 2-5/8" x 3-5/8" slotted to 3"x 3" |
| Wheel Color:Â Red | Mounting Bolt Size:Â 3/8" or Smaller |
| Link to Replacement Wheel: LDS820 | Weight: 12.17 Lbs |
