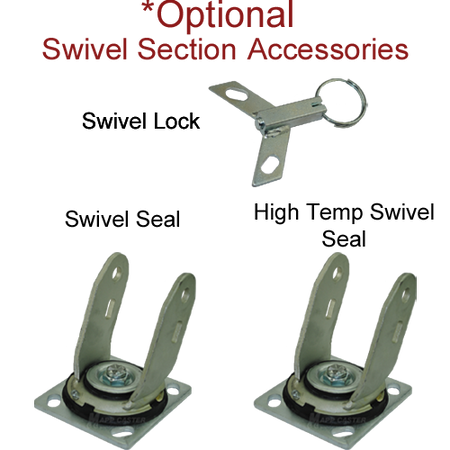

5" x 2" Ductile Steel Wheel Swivel Brake Caster - 1250 Lbs Capacity 146DUCT520SB SWIVEL SECTION ACCESSORIES

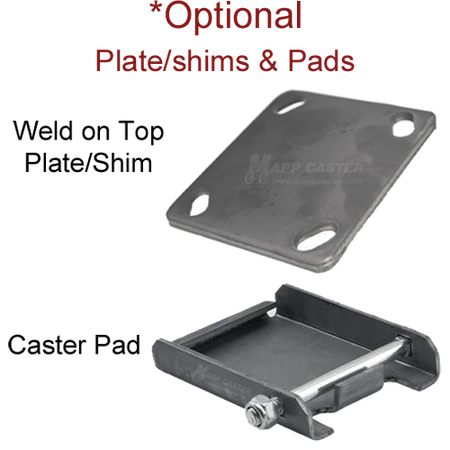

5" x 2" Ductile Steel Wheel Rigid Brake Caster - 1250 Lbs Capacity 146DUCT520RB OPTIONAL PLATE/SHIMS AND PADS

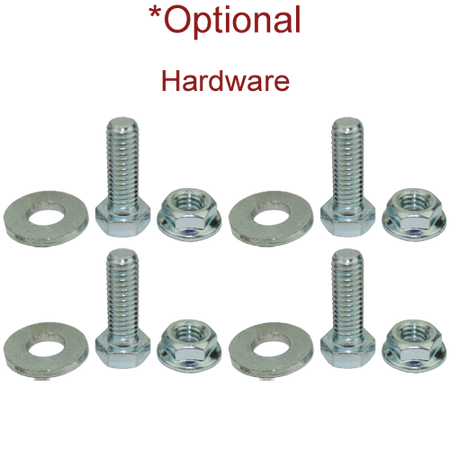

5" x 2" Ductile Steel Wheel Rigid Brake Caster - 1250 Lbs Capacity 146DUCT520RB HARDWARE
8" x 2" Heavy Duty Ductile Steel Wheel Swivel Caster - 1,250 Lbs Capacity
5" x 2" Ductile Steel Wheel Swivel Brake Caster - 1250 Lbs Capacity 146DUCT520SB SWIVEL SECTION ACCESSORIES
5" x 2" Ductile Steel Wheel Rigid Brake Caster - 1250 Lbs Capacity 146DUCT520RB OPTIONAL PLATE/SHIMS AND PADS
5" x 2" Ductile Steel Wheel Rigid Brake Caster - 1250 Lbs Capacity 146DUCT520RB HARDWARE

8" x 2" Ductile Steel Wheel Swivel Caster - 1,250 Lbs Capacity

SKU

146DUCT820S
$71.28

8" x 2" Ductile Steel Wheel Swivel Caster - Part # 146DUCT820S

Manufactured from a high strength steel alloy, ductile steel offers improved capacity, durability & impact resistance compared to standard cast iron wheels. Ductile steel provides approximately 45,000 PSI tensile strength & features a thicker tread, spokes & hubs to withstand abusive industrial applications. Its moderately crowned tread design further reduces friction during rolling, swiveling & directional changes for improved maneuverability.

While ductile steel is very hard, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our forged steel caster.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1,250 Link to Matching Rigid Caster: 146DUCT820R
Wheel Diameter: 8" Caster Rig Material Type: AISI 1045 Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Ductile Steel Swivel or Rigid Caster: Swivel

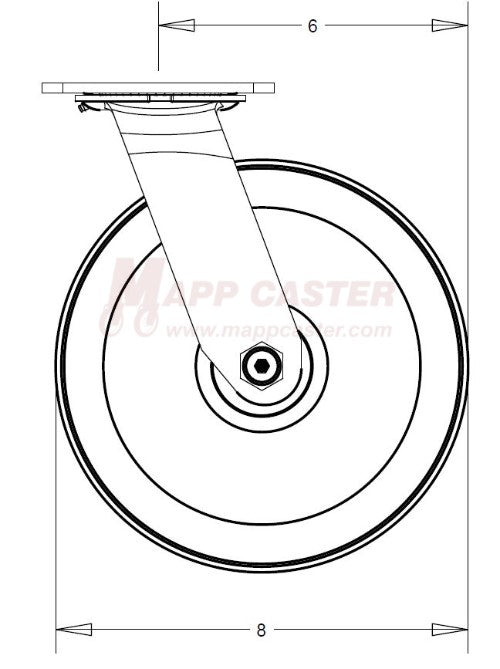

Wheel Bearing Type: See Bearings Options Swivel Radius: 6"

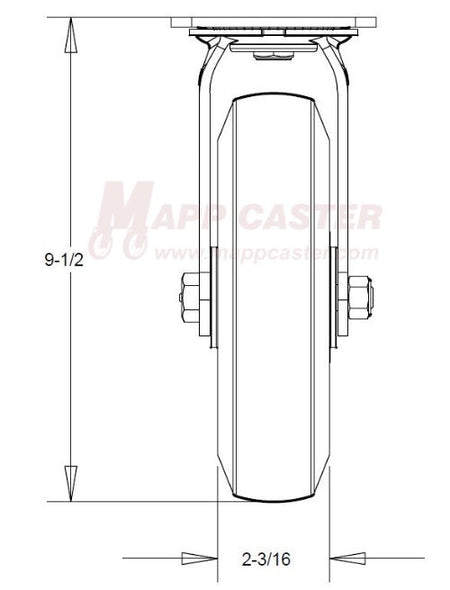

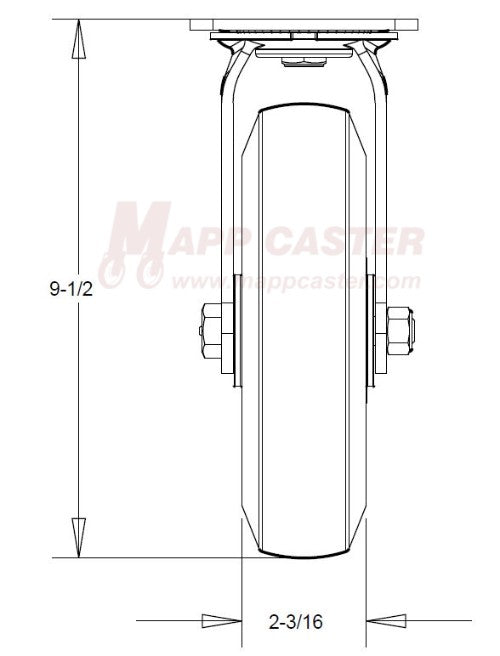

Overall Height: 9-1/2"
 Swivel Construction: Double Ball Raceway - 5/8" Kingpin

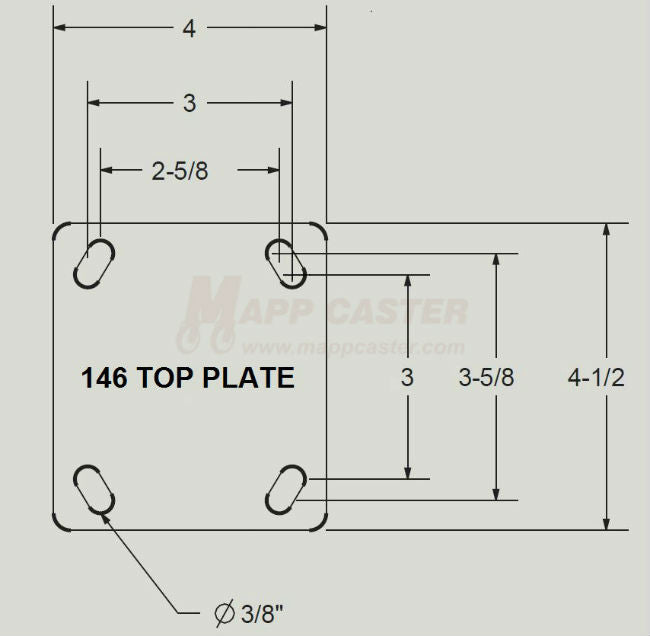

Temp Range: -45°F to 800°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Rockwell 75B  Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Red Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LDS820 Weight: 10.82 Lbs
