8" x 2" Ductile Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity

8" x 2" Ductile Steel Wheel Kingpinless Swivel Caster - Part # P51082DUCT

Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 2,000 Lbs.	Mounting Plate: 4" x 4-1/2"

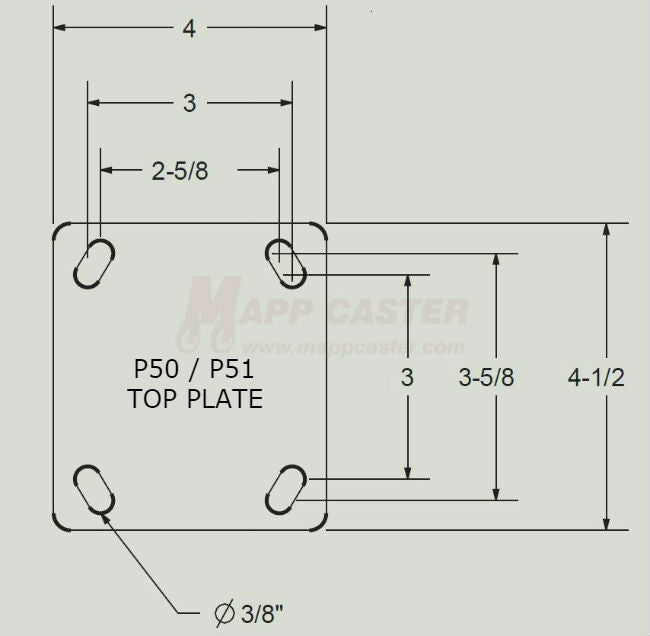

Wheel Diameter:8"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned	Overall Height:9-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Ductile Steel	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 75B	Swivel Radius: 6"
Wheel Color: Red	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 800˚F	Weight: 12.812 Lbs
Link to Replacement Wheel: LDS820	Link to Matching Rigid Caster: P50082DUCT

Capacity: 2,000 lbs.

Wheel Diameter:8"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Slightly Crowned

Bearing Type: See Bearings Options

Wheel Type: Ductile Steel

Wheel Durometer:Rockwell 75B

Overall Height:9-1/2"

Swivel Radius:6"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Red

Temp Range:-45˚F to 800˚F

Weight:12.812 Lbs

Link to Replacement Wheel:LDS820

Link to Matching Rigid Caster:P50082DUCT
