8" x 2" Ductile Steel Wheel Kingpinless Swivel Brake Caster - 2,000 Lbs Capacity

8" x 2" Ductile Steel Wheel Kingpinless Swivel Brake Caster - Part # P51082DUCTTLB

Manufactured from a high strength steel alloy, ductile steel offers improved capacity, durability & impact resistance compared to standard cast iron wheels. Ductile steel provides approximately 45,000 PSI tensile strength & features a thicker tread, spokes & hubs to withstand abusive industrial applications. Its moderately crowned tread design further reduces friction during rolling, swiveling & directional changes for improved maneuverability.

While ductile steel is very hard, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our forged steel caster.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 2,000 Lbs.	Mounting Plate: 4" x 4-1/2"

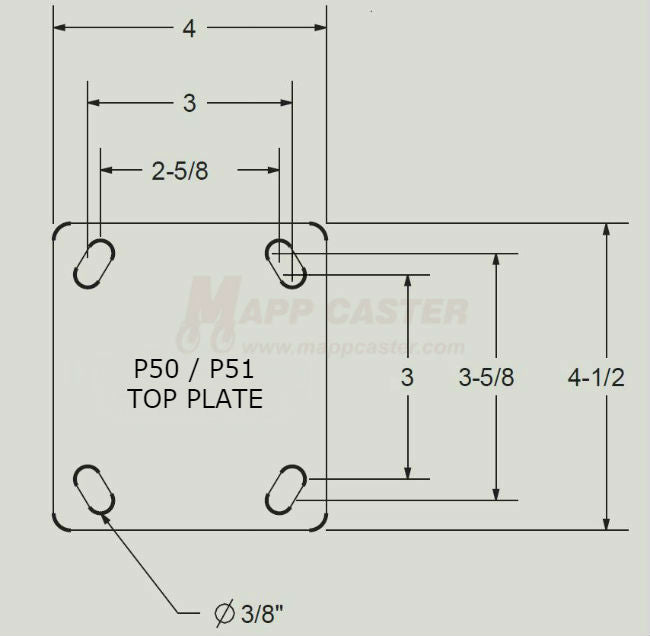

Wheel Diameter:8"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned	Overall Height:9-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Ductile Steel	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 75B	Swivel Radius: 6"
Wheel Color: Red	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 800˚F	Weight: 13.272 Lbs
Link to Replacement Wheel: LDS820	Link to Matching Rigid Brake Caster: P50082DUCTTLB

Capacity: 2,000 lbs.

Wheel Diameter:8"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Slightly Crowned

Bearing Type: See Bearings Options

Wheel Type: Ductile Steel

Wheel Durometer:Rockwell 75B

Overall Height:9-1/2"

Swivel Radius:6"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Red

Temp Range:-45˚F to 800˚F

Weight:13.272 Lbs

Link to Replacement Wheel:LDS820

Link to Matching Rigid Brake Caster:P50082DUCTTLB
