146CIRB820RB 8" x 2" Cast Iron Wheel Rigid Brake Caster - 1,250 Lbs Capacity
146CIRB820RB 8" x 2" Cast Iron Wheel Rigid Brake Caster - 1,250 Lbs Capacity

8" x 2" Cast Iron Wheel Rigid Brake Caster - 1,250 Lbs Capacity

SKU

146CIRB820RB
$59.23

8" x 2" Cast Iron Wheel Rigid Brake Caster - Part # 146CIRB820RB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1,250 Lbs.
Mounting Plate: 4" x 4-1/2"

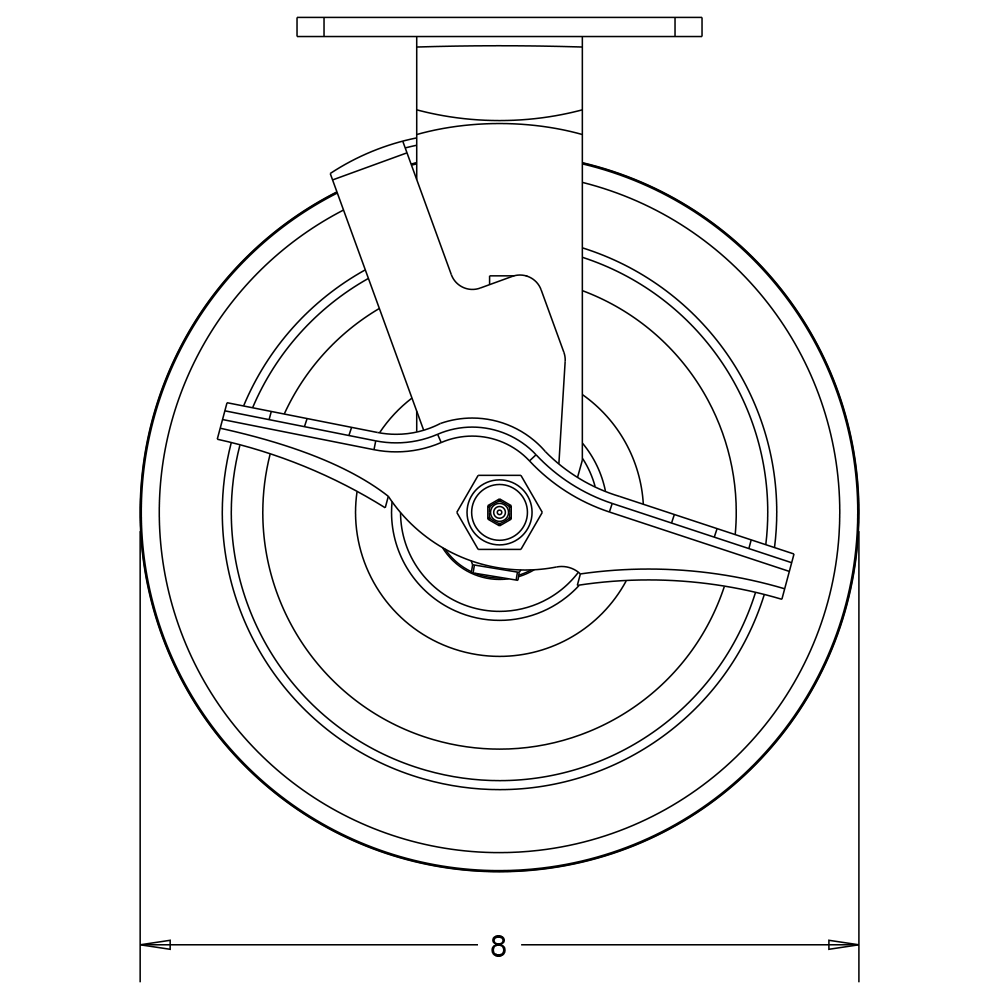

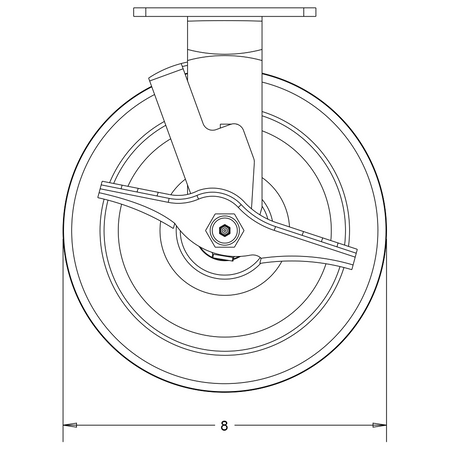

Wheel Diameter:8"

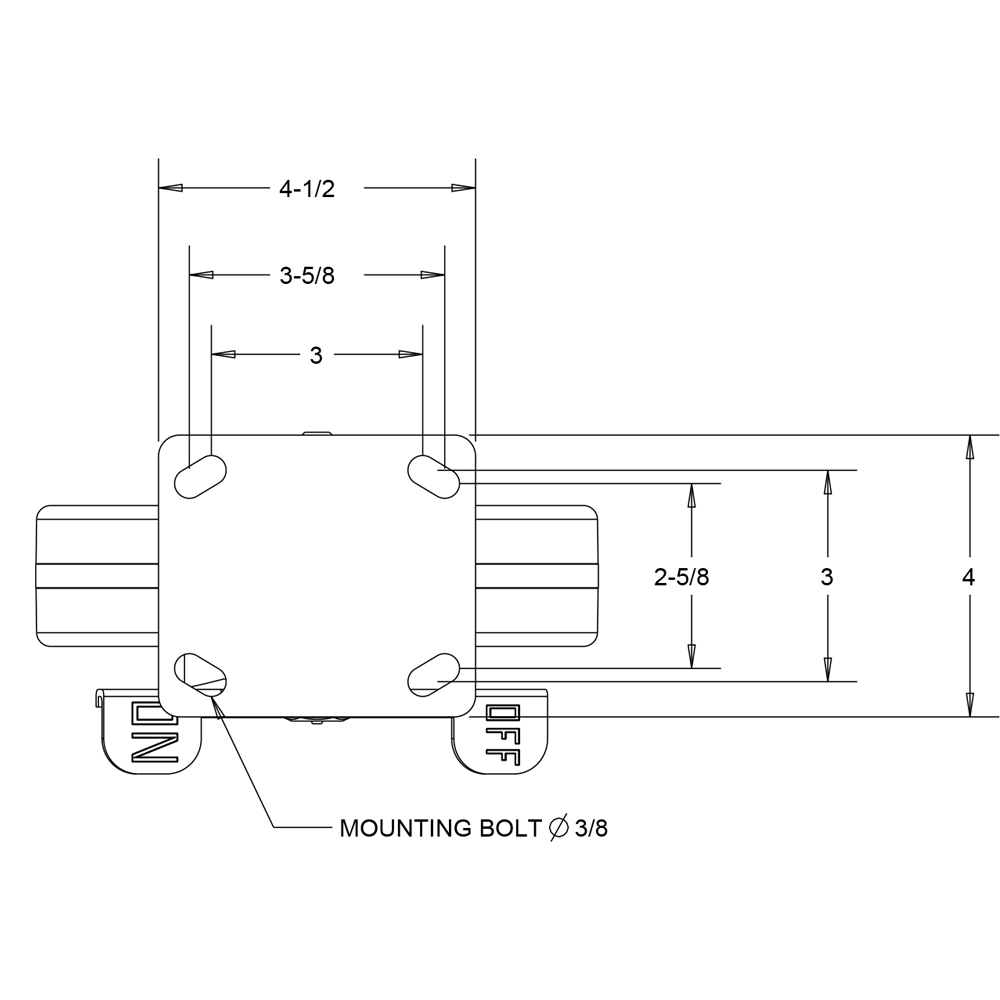

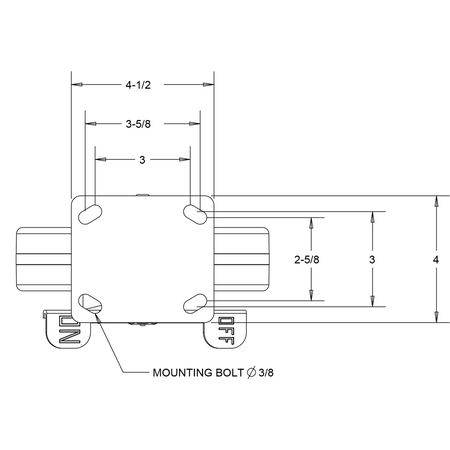

Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat

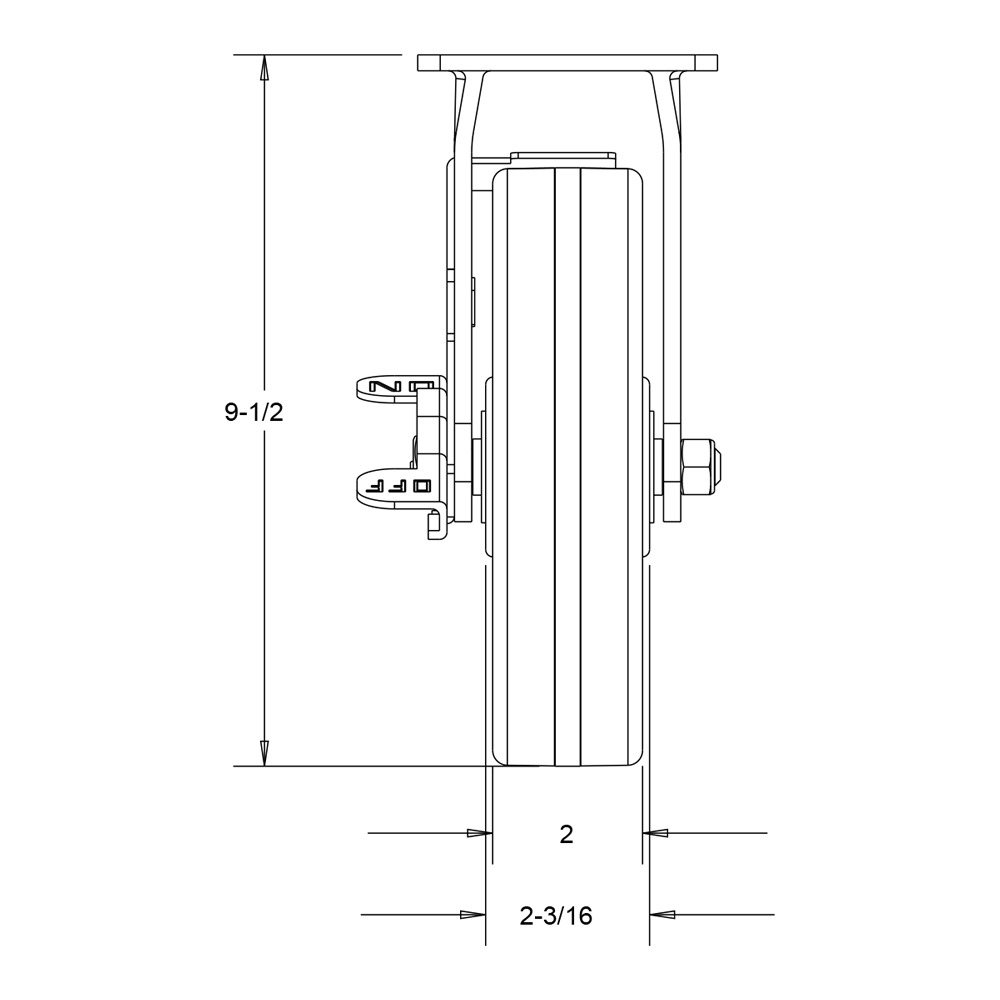

Overall Height:9-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Temp Range: -45˚F to 600˚F
Wheel Color: Silver
Weight: 11.622 Lbs
Link to Replacement Wheel: QSTL8MO
Link to Matching Swivel Brake Caster: 146CIRB820SB
Link to Matching Swivel Caster w/ Total Locking Brake: 146CIRB820SBTL
Link to Matching Swivel Caster w/ Face Contact Brake: 146CIRB820SFCB
Capacity icon Capacity: 1,250 lbs.
Wheel Type iconWheel Diameter:8"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Flat
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Cast Iron
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:9-1/2"
Temp Range icon Caster Rig Material Type: Cold Rolled Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45˚F to 600˚F
Weight icon Weight:11.622 Lbs
Wheel Color iconLink to Replacement Wheel:QSTL8MO
Weight icon Link to Matching Swivel Brake Caster:146CIRB820SB
Weight icon Link to Matching Swivel Caster w/ Face Contact Brake:146CIRB820SFCB
Weight icon Link to Matching Swivel Caster w/ Total Locking Brake:146CIRB820SBTL
