8" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster - 1,600 Lbs Capacity
SKU
P51082CIRBTLBCouldn't load pickup availability
8" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster - Part # P51082CIRBTLB
Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.
ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.
Specifications:
 Capacity: 1,600 Lbs. |
 Mounting Plate: 4" x 4-1/2" |
 Wheel Diameter:8" |

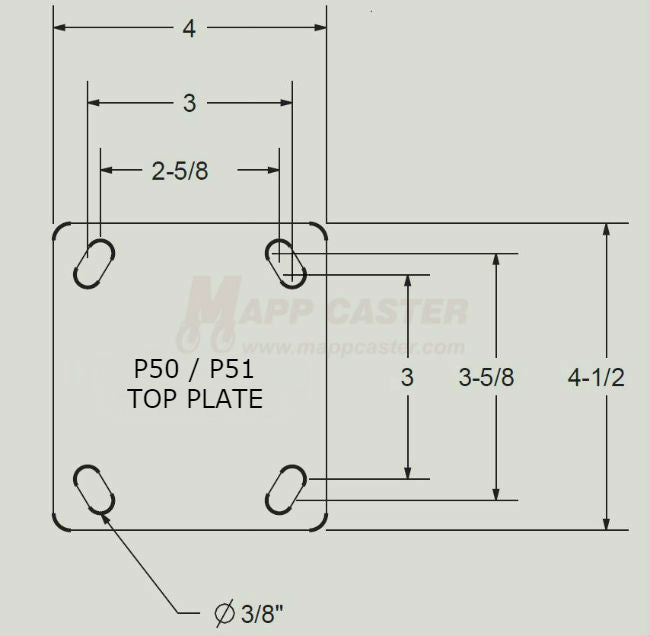

 Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3" |
 Tread Width: 2" |
 Mounting Bolt Size:3/8" or Smaller |
 Tread Shape:Flat |
 Overall Height:9-1/2" |
 Bearing Type:See Bearings Options |
 Caster Rig Material Type:AISI 1045 Steel |
 Wheel Type:Cast Iron |
 Caster Rig Color/Finish:Bright Zinc Plated |
 Wheel Durometer: Brinell 145 |
 Swivel Radius: 6"
|
 Wheel Color: Silver |
 Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway |
 Temp Range: -45˚F to 600˚F |
 Weight: 13.34 Lbs |
 Link to Replacement Wheel: QSTL8MO
|
|
Capacity: 1,600 lbs. |
|
Wheel Diameter:8" |
|
Tread Width:2" |
|
Mounting Plate:4" x 4-1/2" |
|
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
|
|
Mounting Bolt Size: 3/8" or Smaller
|
|
Tread Shape:Flat |
|
Bearing Type: See Bearings Options |
|
Wheel Type: Cast Iron |
|
Wheel Durometer:Brinell 145 |
|
Overall Height:9-1/2" |
|
Swivel Radius:6" |
|
Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway |
|
Caster Rig Material Type: AISI 1045 Steel |
|
Caster Rig Color/Finish:Bright Zinc Plated |
|
Wheel Color:Silver |
|
Temp Range:-45˚F to 600˚F |
|
Weight:13.34 Lbs |
|
Link to Replacement Wheel:QSTL8MO |
 Link to Matching Rigid Brake Caster:P50082CIRBTLB |
