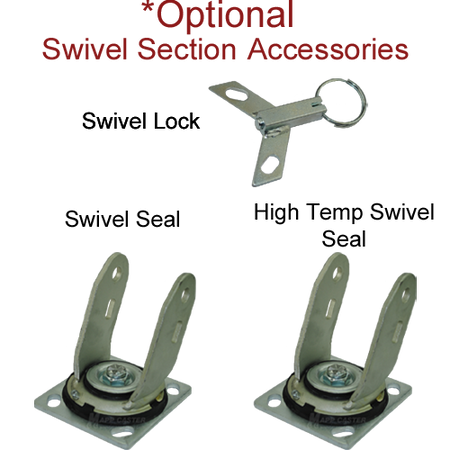

5" x 2" Orange Poly on Aluminum Wheel Swivel Brake Caster - 900 Lbs Capacity OPTIONAL SWIVEL SECTION ACCESSORIES 146LUX520SB

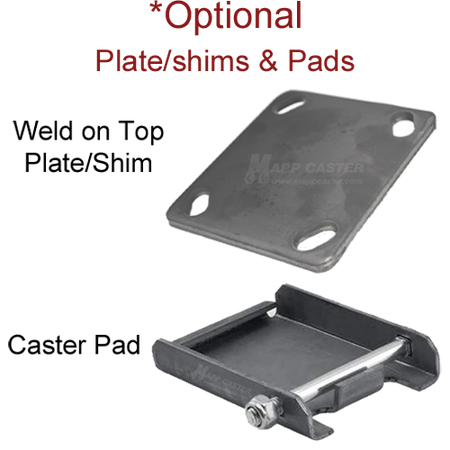

5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S PLATE SHIMS

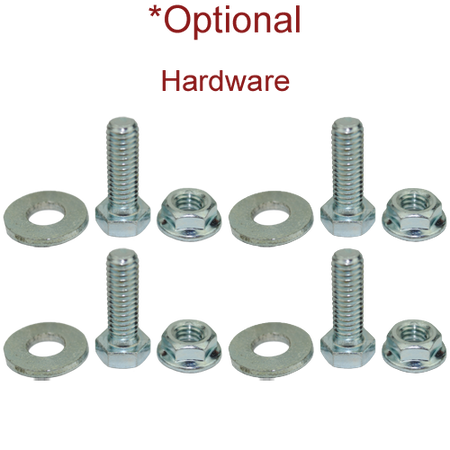

5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S OPTIONAL HARDWARE
146VIRB820SB 8" x 2" Cast Iron V-Groove Wheel Swivel Brake Caster - 1000 Lbs Capacity
5" x 2" Orange Poly on Aluminum Wheel Swivel Brake Caster - 900 Lbs Capacity OPTIONAL SWIVEL SECTION ACCESSORIES 146LUX520SB
5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S PLATE SHIMS
5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S OPTIONAL HARDWARE

8" x 2" Cast Iron V-Groove Wheel Swivel Brake Caster

SKU

146VIRB820SB
$62.30

8" x 2" Cast Iron V-Groove Wheel Swivel Brake Caster - Part #: 146VIRB820SB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1200

Link to Matching Rigid Brake Caster: 146VIRB820RB
Wheel Diameter: 8" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel

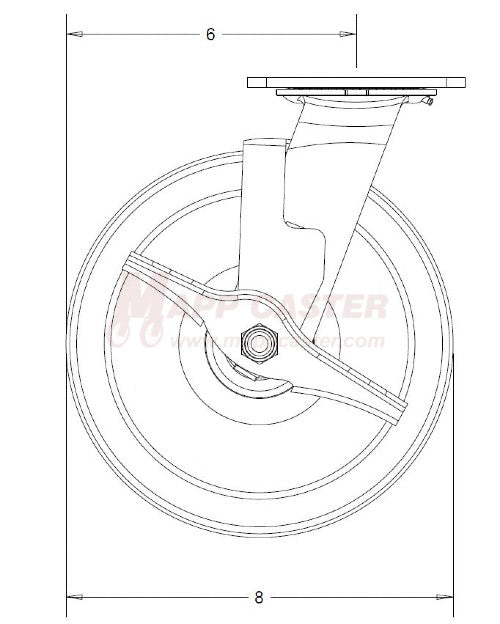

Wheel Bearing Type: See Options Swivel Radius: 6"

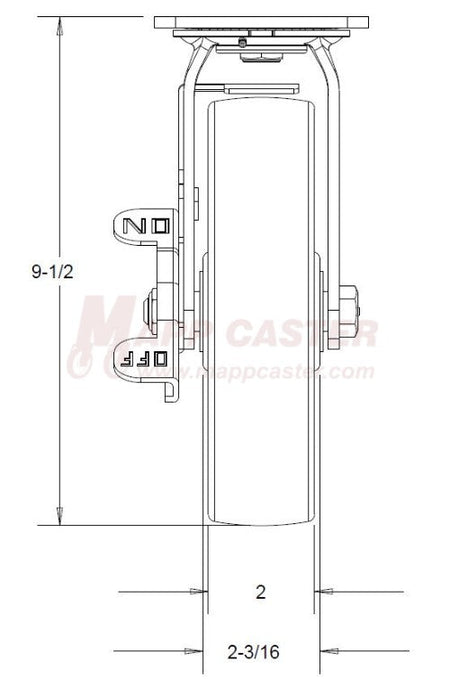

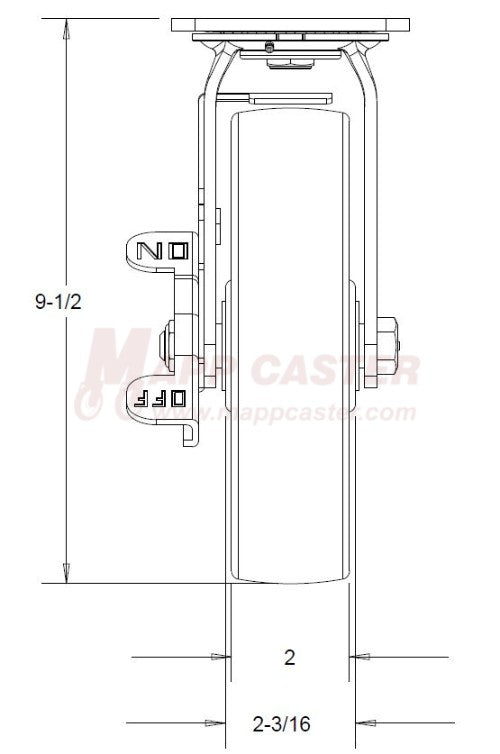

Overall Height: 9-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin

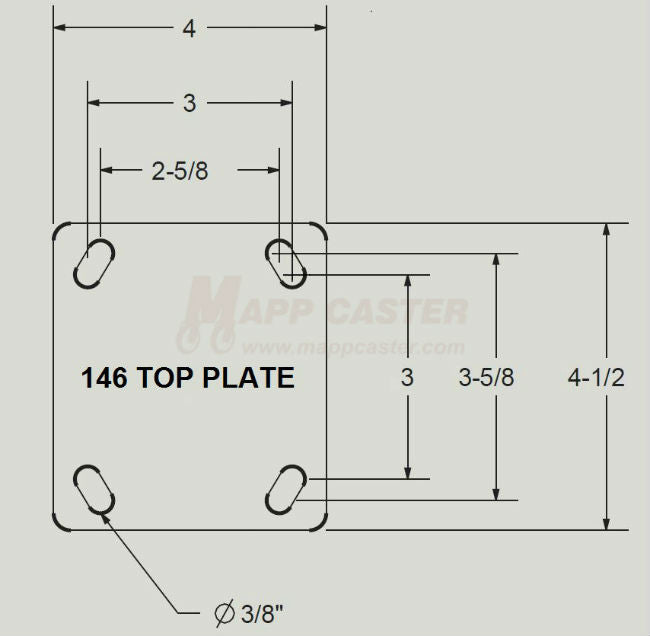

Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG820 Weight:  13.2 Lbs
