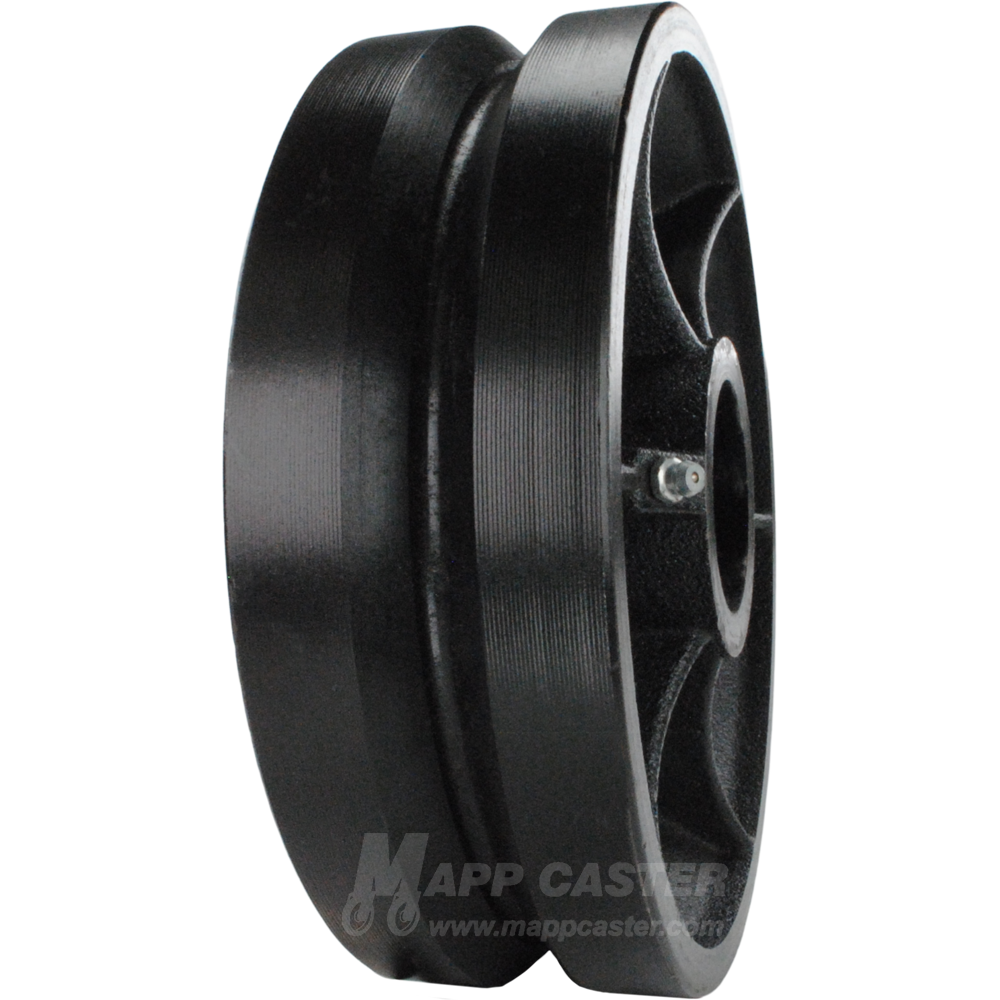

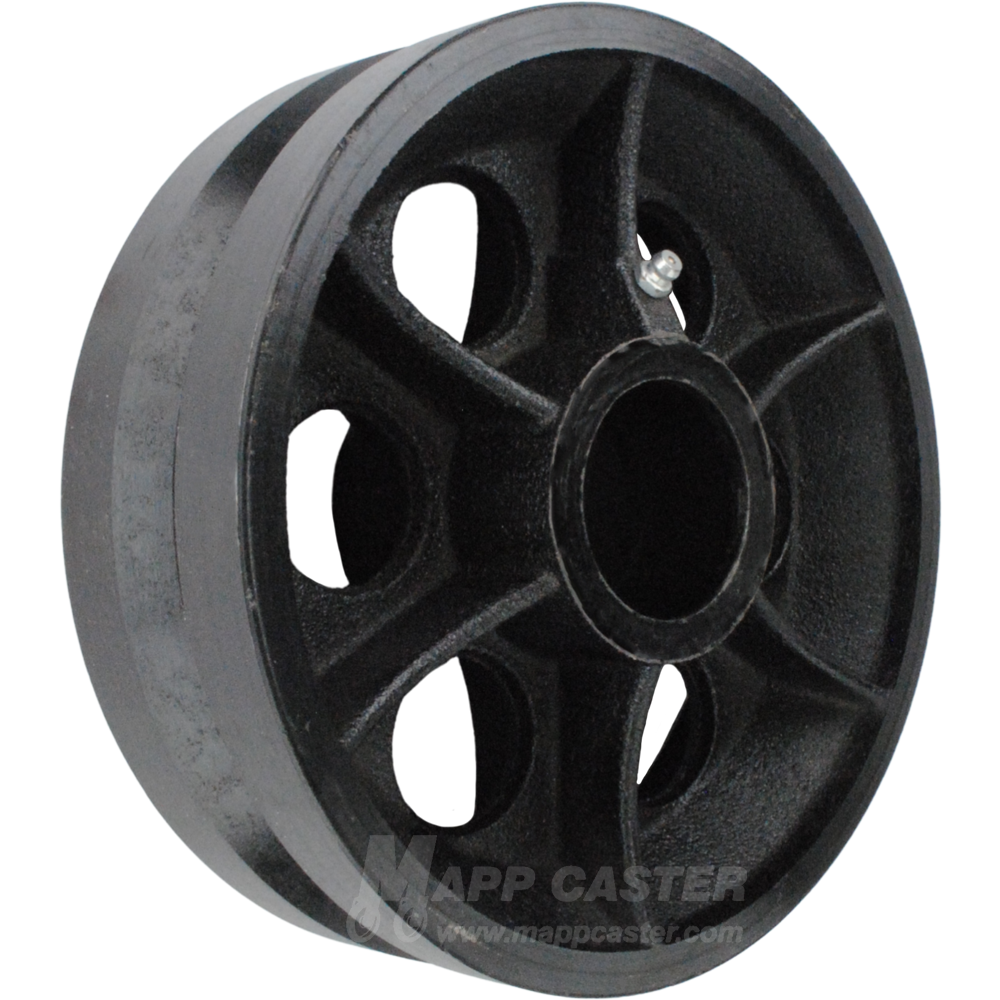

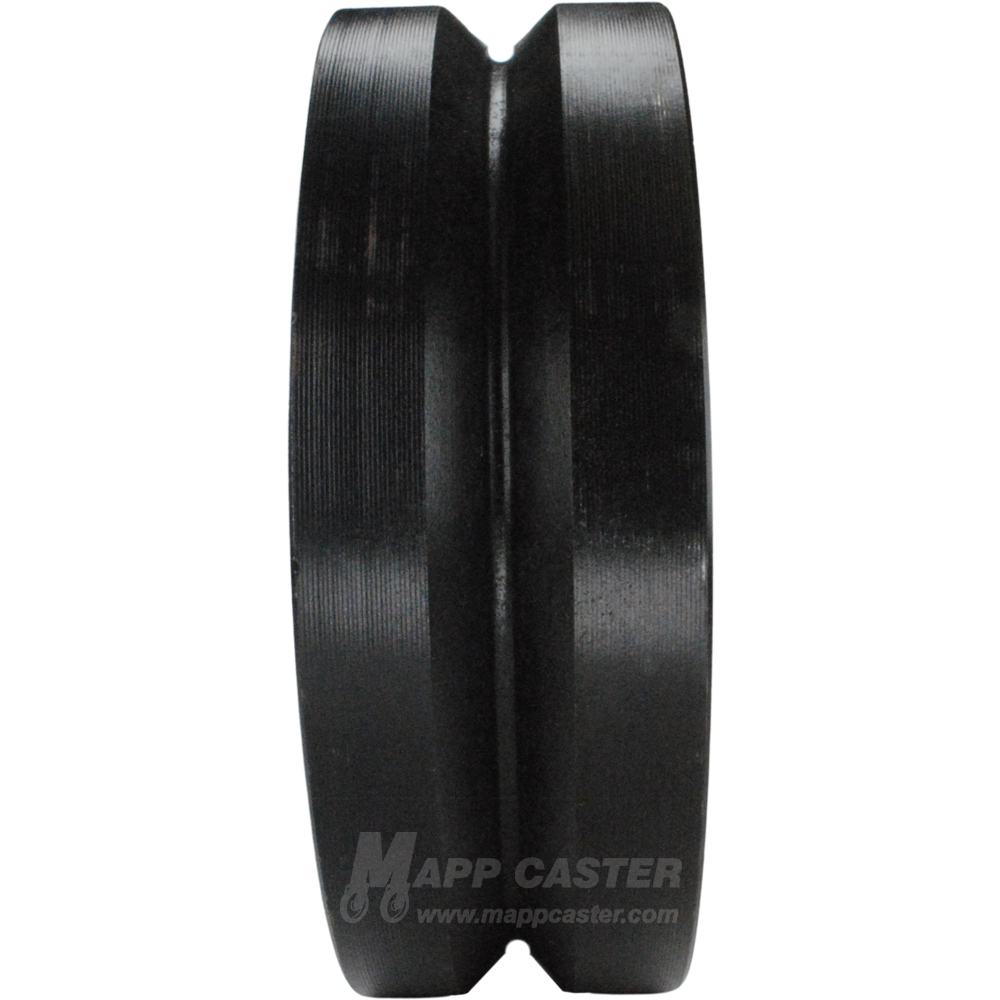

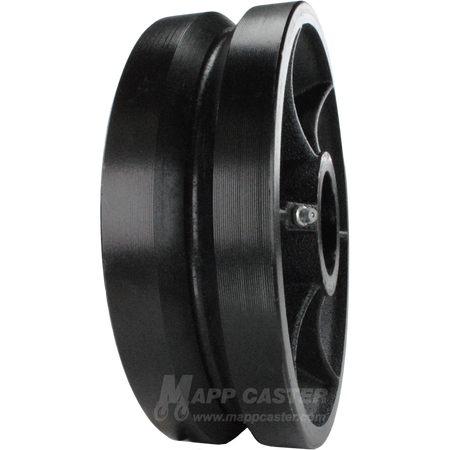

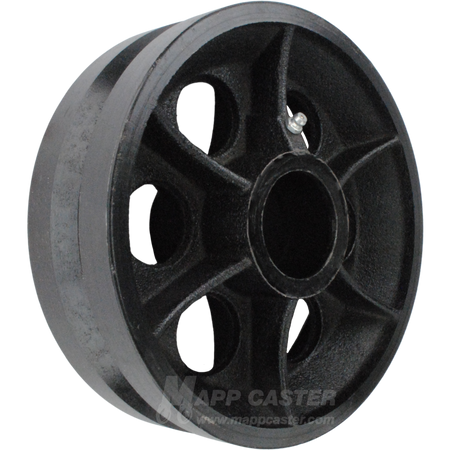

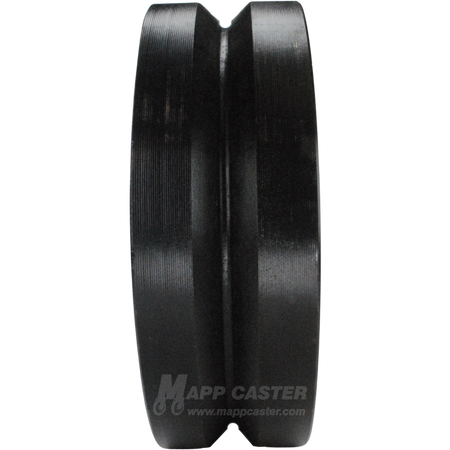

8" x 2-1/2" Cast Iron V-Groove Wheel - 2,500 Lbs Capacity

8" x 2-1/2" Cast Iron V-Groove Wheel - Part # LVG825

V-groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate off the track thanks to the tread on either side of the v-groove.

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 2,500 Lbs.	Wheel Type:Cast Iron V-Groove
Wheel Diameter:8"	Hub Length (without Bearings):2-3/4"
Tread Width:2-1/2"	Hub Length (with Bearings):N/A
Groove Width:7/8"	Groove Depth: 7/16"
Bearing Type:None	Wheel Durometer:Brinell 145
Plain Bore ID:1-15/16"	Wheel Tread Shape:V-Groove
Accepted Axle/Bearing ID:See Bearing Options	Wheel Color:Black
Temp Range: -45˚F to 600˚F	Weight:12.356 lbs

Capacity:2,500 lbs.

Wheel Type:Cast Iron V-Groove

Wheel Diameter:8"

Tread Width:2-1/2"

Hub Length (without Bearings): 2-3/4"

Hub Length (with Bearings): N/A

Groove Width: 7/8"

Groove Depth: 7/16"

Bearing Type:None

Plain Bore ID:1-15/16"

Accepted Axle/Bearing ID:See Bearing Options

Wheel Durometer:Brinell 145

Wheel Tread Shape:V-Groove

Temp Range: -45˚F to 600˚F

Wheel Color:Black

Weight: 12.356 lbs
