6" x 3" Ductile Steel Rigid Caster
SKU
P7006301112Couldn't load pickup availability
Ductile steel wheel is a combination of select alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel. It can be known as malleable iron, meaning it will flex rather than cracking or breaking when submitted to an extreme shock load. It is also an abrasion resistant wheel
Common Applications: Heavy Duty Platform Trucks, Welding Tables, Trash Containers, Part Bins, Heavy Duty Production Fixtures, Steel Handling Carts
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 5,400 | Matching Swivel Caster: P7106301111 |
| Wheel Diameter: 6" | Caster Rig Material Type: AISI 1045 Heat Treated Laser Cut Steel |
| Tread Width: 3" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Ductile Steel | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 8" | Swivel Construction: N/A |

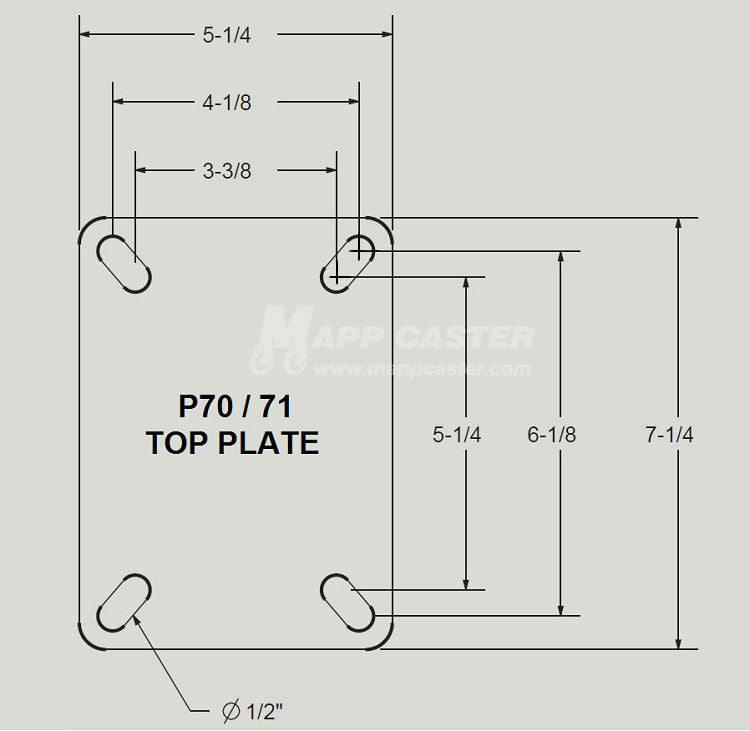

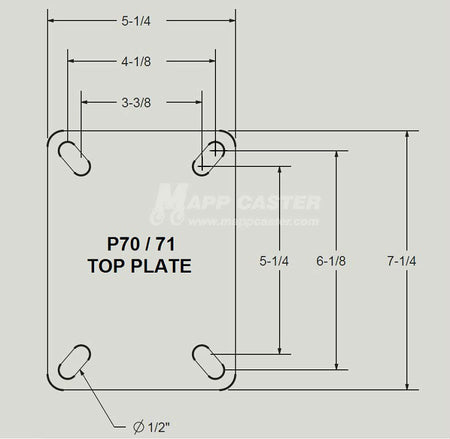

| Temp Range: See Bearing Options | Mounting Plate: 5-1/4" x 7-1/4" |
| Wheel Hardness: Rockwell 74B | Bolt Hole Pattern: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Wheel Color: Dark Red | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: LCDS630 | Weight: 20 lbs. |
