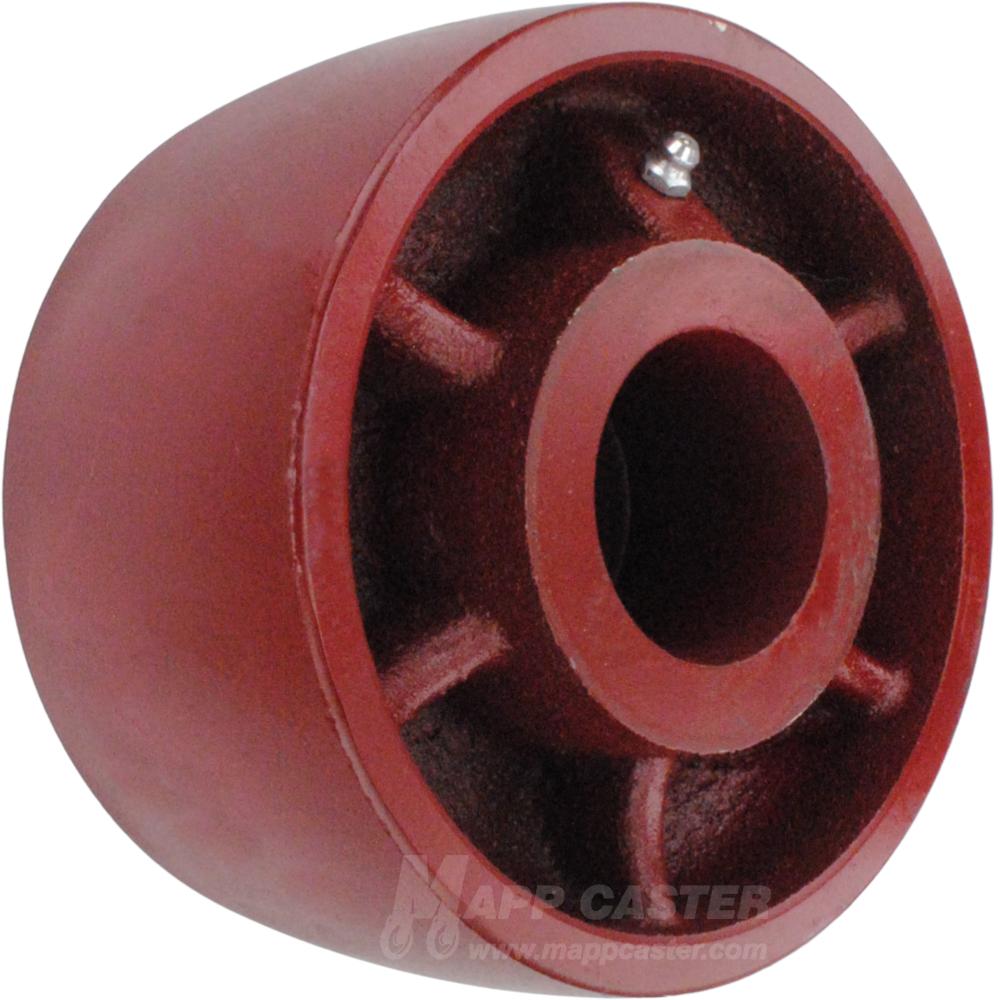

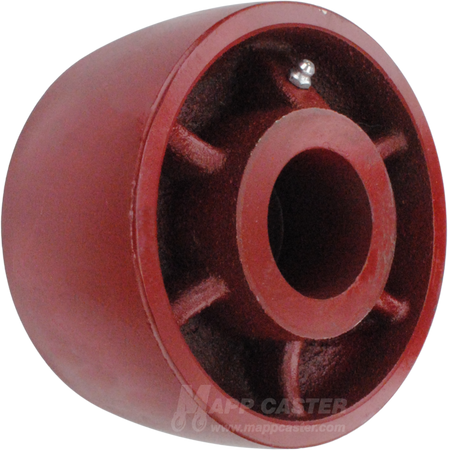

6" x 3" Crowned Tread Ductile Steel Wheel - 6,000 Lbs Capacity
SKU
LCDS630
Regular price
$106.03
Couldn't load pickup availability
6" x 3" Crowned Tread Ductile Steel Wheel - Part # LCDS630
Ductile steel wheels offer comparable strength, impact resistance, and durability to forged steel wheels—at a more affordable price. Made from a blend of high-performance alloys, they support significantly more weight than cast iron wheels, though slightly less than forged steel. While ductile steel is extremely tough and resilient, it can be harsh on floors and may cause damage over time.
For heavy-duty applications that require floor protection, consider our polyurethane on iron wheels.
*Please note temperature ratings are dependent upon the bearing selected.
Specifications:
 Capacity: 6,000 Lbs. |
 Wheel Type: Ductile Steel |
 Wheel Diameter:6" |
 Hub Length (without Bearings):3-1/4" |
 Tread Width: 3" |
 Hub Length (with Bearings):See Bearing Options |
 Bearing Type:None |
 Wheel Durometer:Rockwell 74B |
 Plain Bore ID:1-15/16" |
 Wheel Tread Shape:Crowned |
 Accepted Axle/Bearing ID:See Bearing Options |
 Wheel Color:Red |
 Temp Range: -40˚F to 800˚F |
 Weight: 12.634 lbs |
|
Capacity:6,000 lbs. |
|
Wheel Type:Ductile Steel |
|
Wheel Diameter:6" |
|
Tread Width:3" |
|
Hub Length (without Bearings):
3-1/4" |
|
Hub Length (with Bearings): See Bearing Options
|
|
Bearing Type:None |
|
Plain Bore ID:1-15/16" |
|
Accepted Axle/Bearing ID:See Bearing Options |
|
Wheel Durometer:Rockwell 74B |
|
Wheel Tread Shape:Crowned |
|
Temp Range: -40˚F to 800˚F |
|
Wheel Color:Red |
|
Weight:12.634 lbs |
