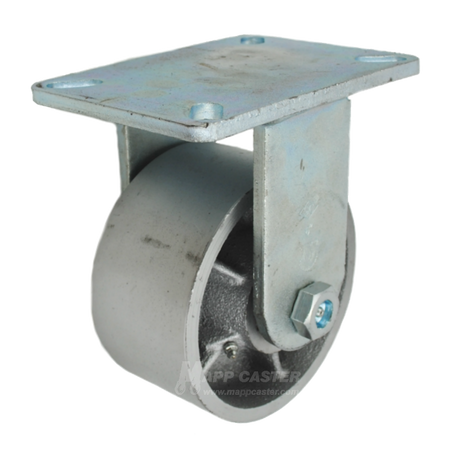

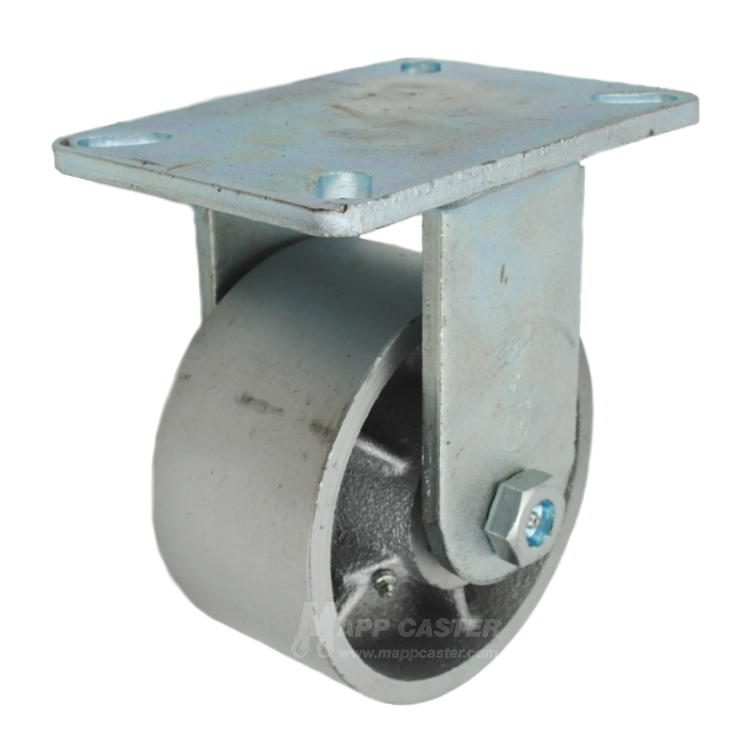

6" x 3" Cast lron Wheel Rigid Caster
SKU
P7006301102Couldn't load pickup availability
Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride.
Common Applications: Heavy Duty Platform Trucks, Welding Tables, Trash Containers, Part Bins, Heavy Duty Production Fixtures, Steel Handling Carts
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 2,500 | Matching Swivel Caster: P7106301121 |
| Wheel Diameter: 6" | Caster Rig Material Type: AISI 1045 Heat Treated Laser Cut Steel |
| Tread Width: 3" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 8" | Swivel Construction: N/A |

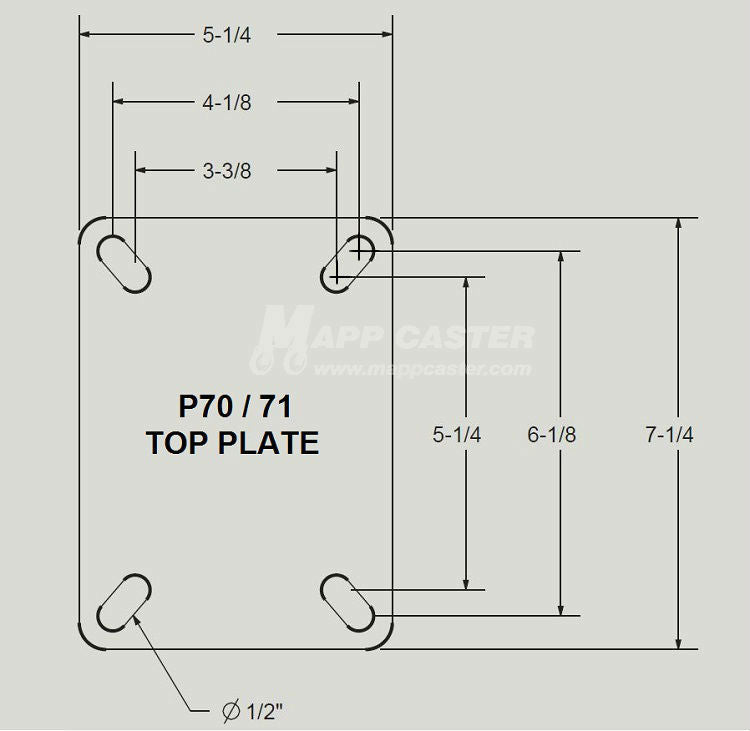

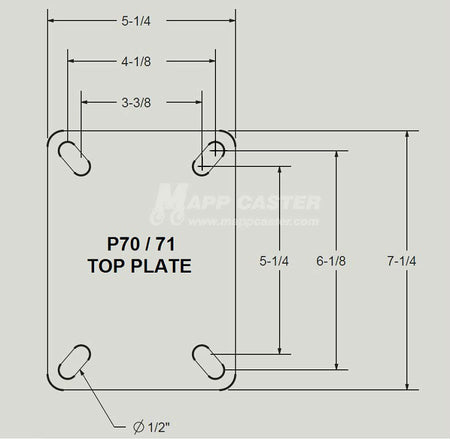

| Temp Range: See Bearing Options | Mounting Plate: 5-1/4" x 7-1/4" |
| Wheel Hardness: Brinell 145 | Bolt Hole Pattern: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Wheel Color: Silver | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: QSTL6R0 | Weight: 14.50 lbs. |
