6" x 2" Forged Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity Heavy Duty
6" x 2" Forged Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity Heavy Duty

6" x 2" Forged Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity

SKU

P5106201251
$194.47

6" x 2" Forged Steel Wheel Swivel Caster - Part # P5106201251

Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane on iron wheels. For a metal wheel with similar capacities and durability, but is more economical, check out our ductile steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 2,000 Lbs.

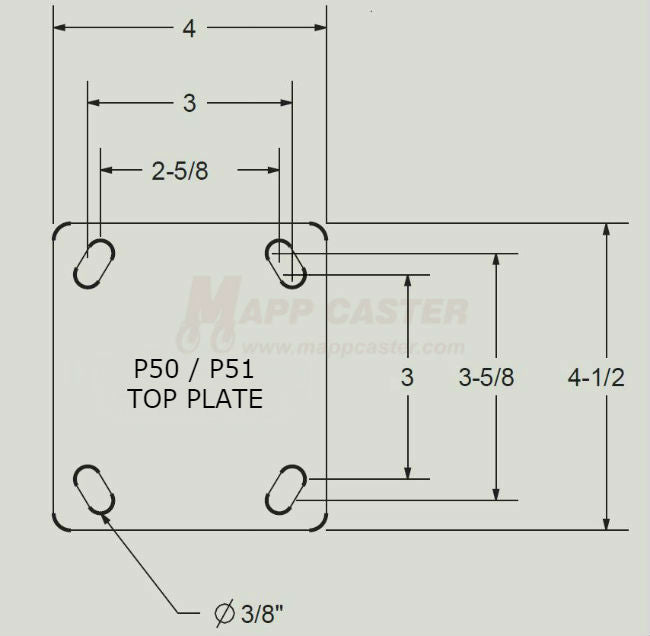

Mounting Plate: 4" x 4-1/2"
Wheel Diameter:6"
Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:7-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Forged Steel
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 80B
Swivel Radius: 4-9/16"
Wheel Color: Silver
Swivel Construction: Kingpinless - Heat Treated
Precision Machined Raceway
Temp Range: -45˚F to 1,300˚F
Weight: 14.18 Lbs
Link to Replacement Wheel: LFS60JS84
Link to Matching Rigid Caster: P5006201252
Capacity icon Capacity: 2,000 lbs.
Wheel Type iconWheel Diameter:6"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Flat
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Forged Steel
Wheel Durometer iconWheel Durometer:Rockwell 80B
Wheel Tread Shape iconOverall Height:7-1/2"
Wheel Tread Shape iconSwivel Radius:4-9/16"
Wheel Tread Shape iconSwivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range icon Caster Rig Material Type: AISI 1045 Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45ËšF to 1,300ËšF
Weight icon Weight:14.18 Lbs
Wheel Color iconLink to Replacement Wheel:LFS60JS84
Weight icon Link to Matching Rigid Caster:P5006201252
