6" x 2" Ductile Steel Wheel Swivel Caster with Face Contact Brake
SKU
146DUCT620SFCBCouldn't load pickup availability
6" x 2" Ductile Steel Wheel Swivel Caster with Face Contact Brake - Part # 146DUCT620SFCB
Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.
For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.
* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.
Specifications:
| Load Capacity (lbs.): 1,250 | Link to Matching Rigid Brake Caster: 146DUCT620RB |
| Wheel Diameter: 6" | Caster Rig Material Type: AISIÂ 1045 Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type:Â Ductile Steel | Swivel or Rigid Caster:Â Swivel |
| Wheel Bearing Type:Â See Bearings Options |
Swivel Radius: 7-3/8" |
|
Overall Height: 7-1/2" |
Swivel Construction: Double Ball Raceway - 5/8" Kingpin |

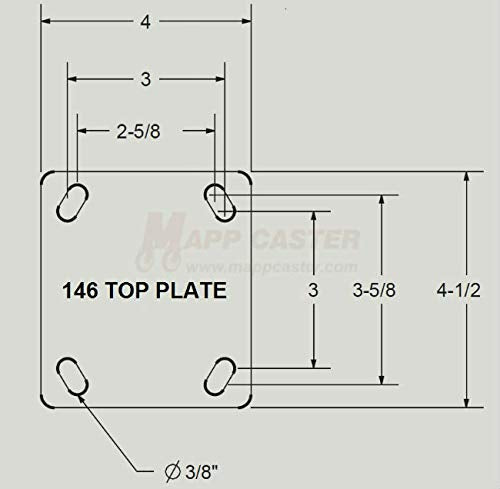

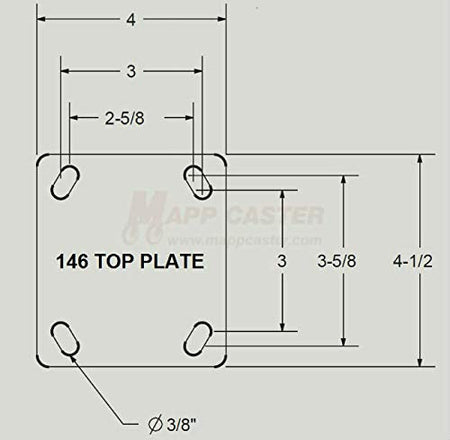

| Temp Range: -45°F to 800°F | Mounting Plate: 4" x 4-1/2" |
| Wheel Durometer:Â Rockwell 75BÂ | Bolt Hole Pattern:Â 2-5/8" x 3-5/8" slotted to 3"x 3" |
| Wheel Color:Â Red | Mounting Bolt Size:Â 3/8" or Smaller |
| Link to Replacement Wheel: LDS620 | Weight: 10.452 Lbs |
