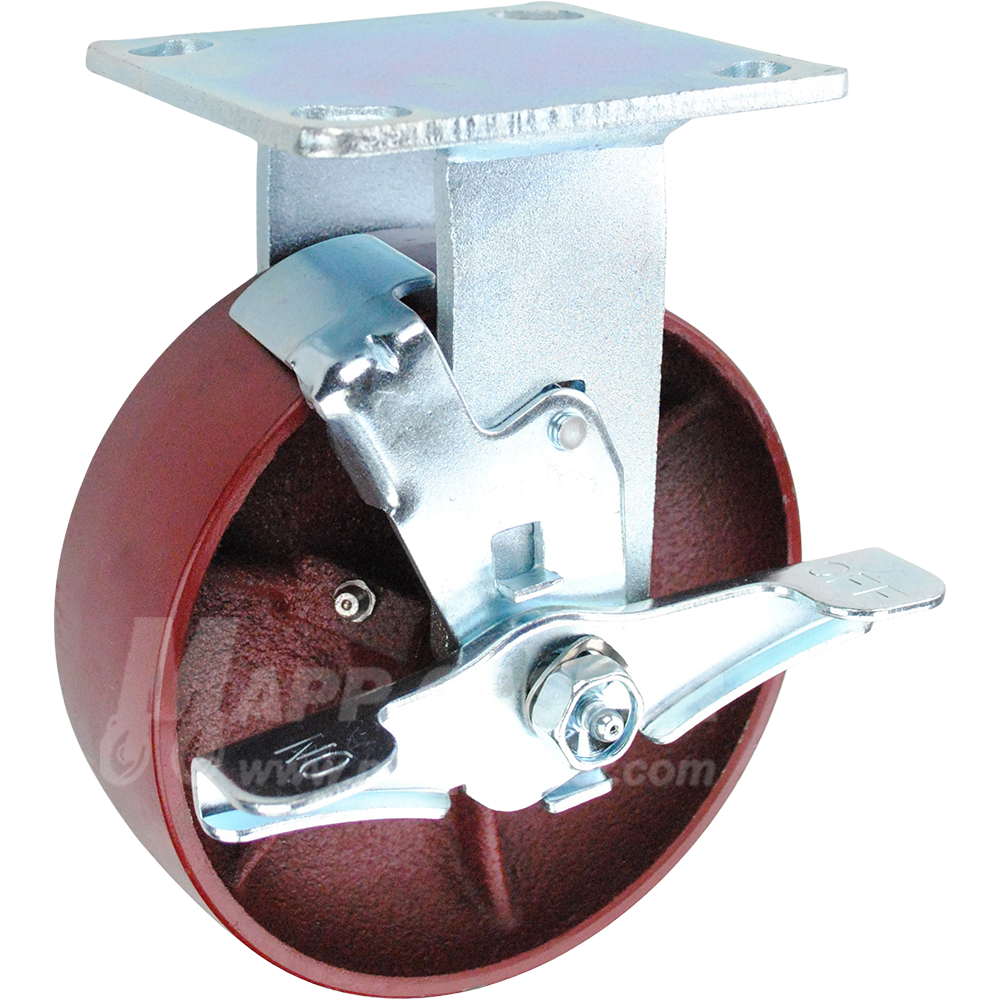

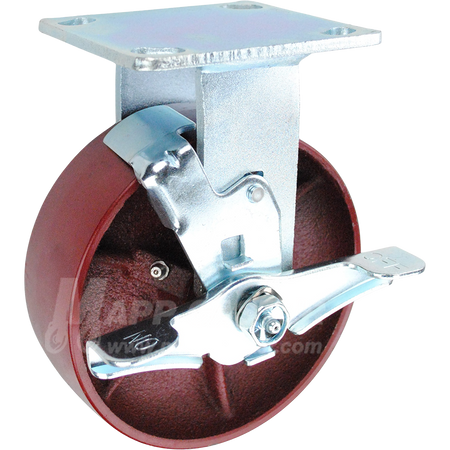

6" x 2" Ductile Steel Wheel Rigid Brake Caster
SKU
146DUCT620RBCouldn't load pickup availability
6" x 2" Ductile Steel Wheel Rigid Brake Caster - Part # 146DUCT620RB
Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.
For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
Load Capacity (lbs.): 1,250 |
Link to Matching Swivel Brake Caster: 146DUCT620SB Link to Matching Swivel Caster with Face Contact Brake: 146DUCT620SFCB Link to Matching Swivel Caster w/ Total Locking Brake: 146DUCT620SBTL |

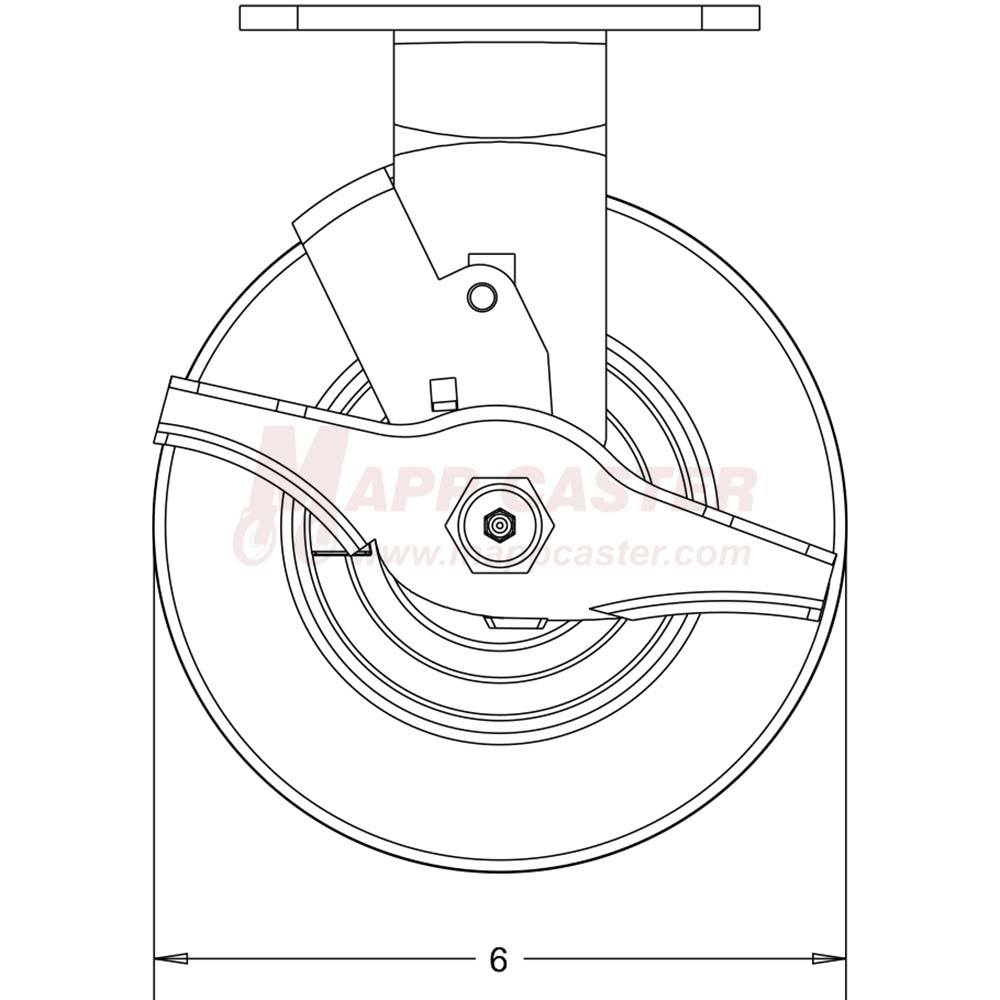

Wheel Diameter: 6" | Caster Rig Material Type:Â AISIÂ 1045 Steel |
Tread Width: 2" | Caster Rig Color/Finish: Bright Zinc Plated |
Wheel Type:Â Ductile Steel |
Swivel or Rigid Caster: Rigid |
Wheel Bearing Type:Â See Bearings Options |
Swivel Radius: 4" |

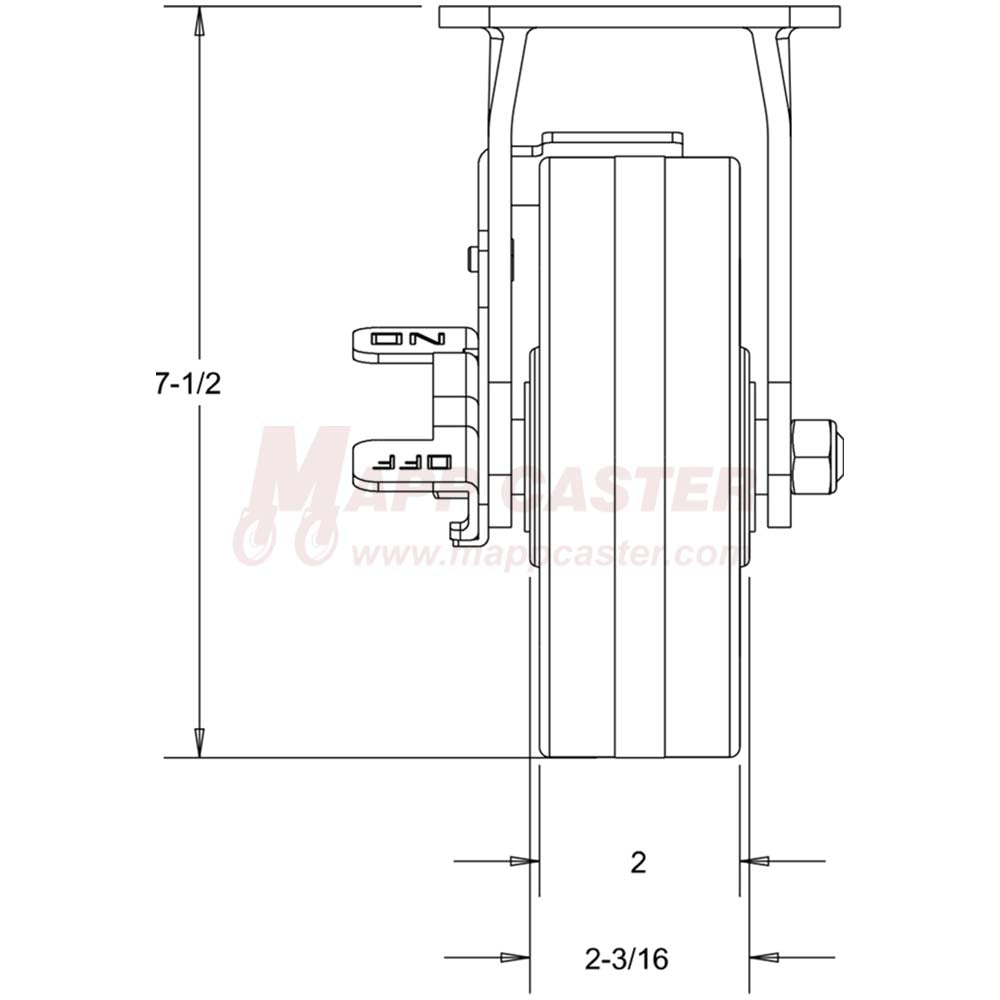

Overall Height: 7-1/2" |
Swivel Construction: Double Ball Raceway - 5/8" Kingpin |

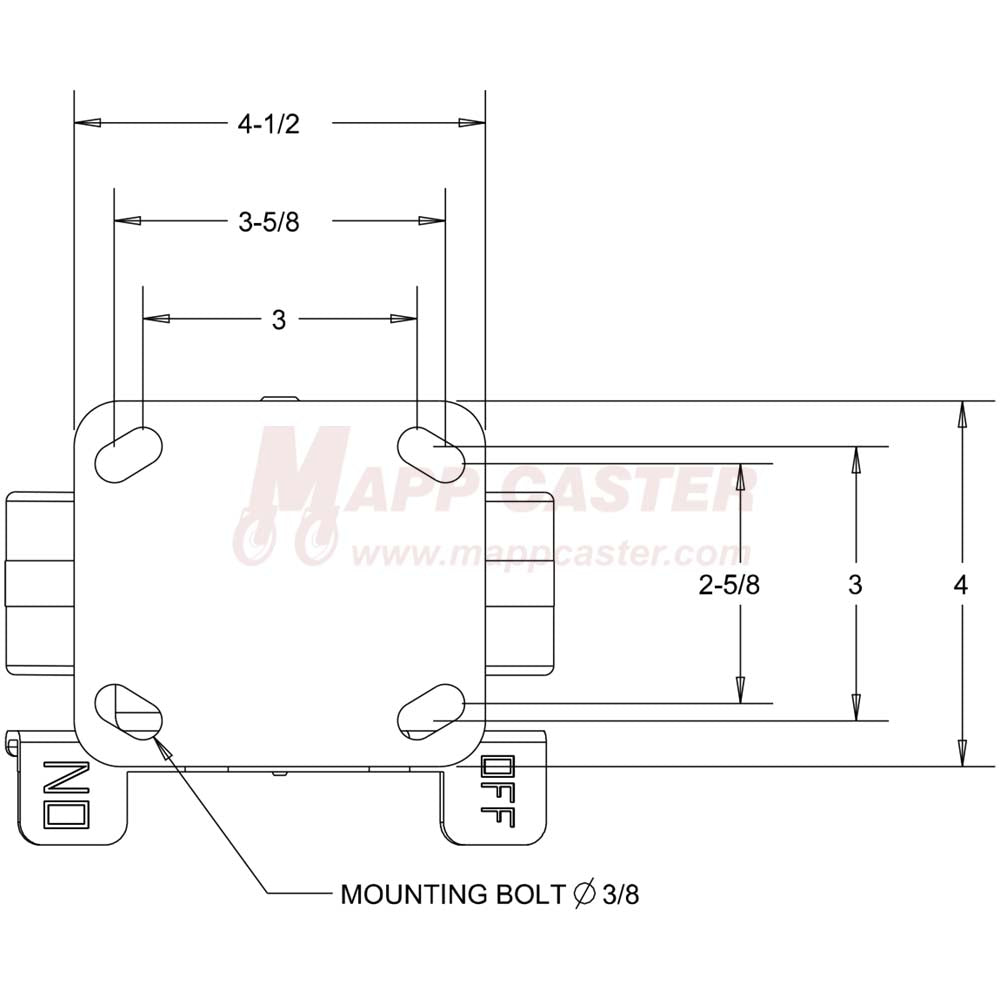

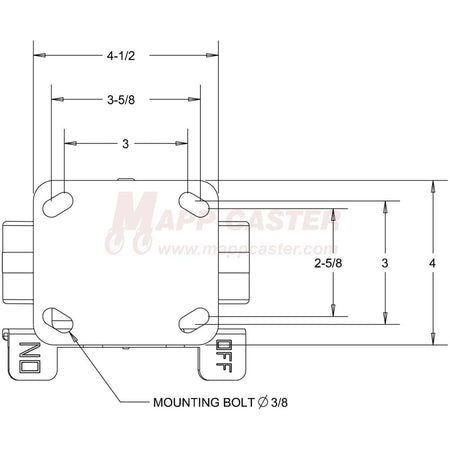

Temp Range: -45°F to 800°F | Mounting Plate: 4" x 4-1/2" |
Wheel Durometer:Â Rockwell 75BÂ | Bolt Hole Pattern:Â 2-5/8" x 3-5/8" slotted to 3"x 3" |

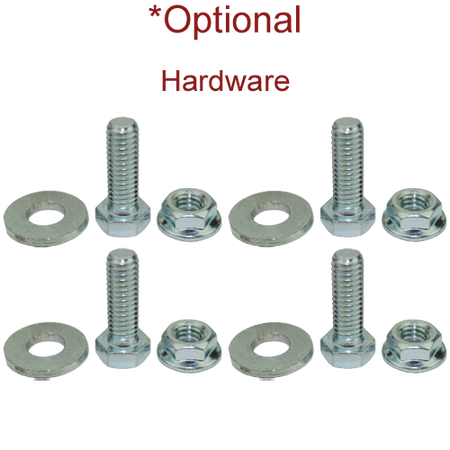

Wheel Color:Â Red | Mounting Bolt Size:Â 3/8" or Smaller |
Link to Replacement Wheel: LDS620 | Weight: 8.84 Lbs |
