6" x 2" Ductile Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity Heavy Duty
6" x 2" Ductile Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity Heavy Duty

6" x 2" Ductile Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity

SKU

P51062DUCT
$133.58

6" x 2" Ductile Steel Wheel Kingpinless Swivel Caster - Part # P51062DUCT

Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 2,000 Lbs.

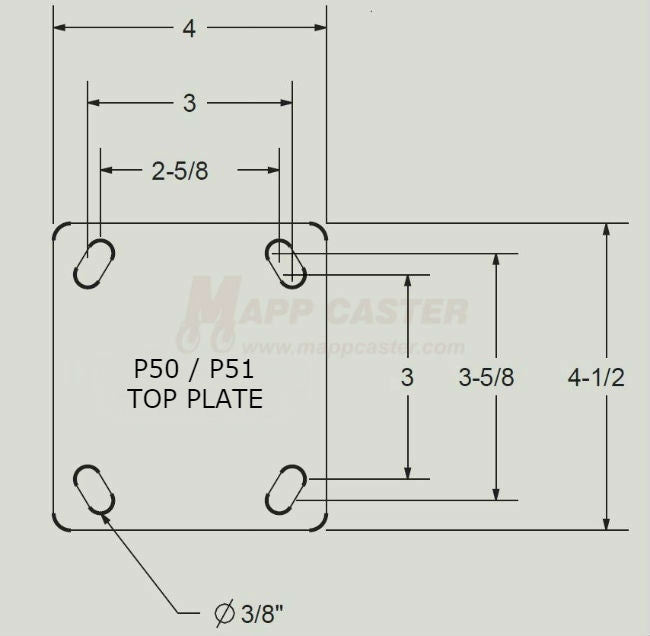

Mounting Plate: 4" x 4-1/2"
Wheel Diameter:6"
Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned
Overall Height:7-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Ductile Steel
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 75B
Swivel Radius: 4-9/16"
Wheel Color: Red
Swivel Construction: Kingpinless - Heat Treated
Precision Machined Raceway
Temp Range: -45˚F to 800˚F
Weight: 10.916 Lbs
Link to Replacement Wheel: LDS620
Link to Matching Rigid Caster: P50062DUCT
Capacity icon Capacity: 2,000 lbs.
Wheel Type iconWheel Diameter:6"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Slightly Crowned
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Ductile Steel
Wheel Durometer iconWheel Durometer:Rockwell 75B
Wheel Tread Shape iconOverall Height:7-1/2"
Wheel Tread Shape iconSwivel Radius:4-9/16"
Wheel Tread Shape iconSwivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range icon Caster Rig Material Type: AISI 1045 Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Red
Wheel Color iconTemp Range:-45ËšF to 800ËšF
Weight icon Weight:10.916 Lbs
Wheel Color iconLink to Replacement Wheel:LDS620
Weight icon Link to Matching Rigid Caster:P50062DUCT
