6" x 2" Ductile Steel Wheel Kingpinless Swivel Brake Caster - 2,000 Lbs Capacity Part # P51062DUCTTLB
6" x 2" Ductile Steel Wheel Kingpinless Swivel Brake Caster - 2,000 Lbs Capacity Part # P51062DUCTTLB

6" x 2" Ductile Steel Wheel Kingpinless Swivel Brake Caster

SKU

P51062DUCTTLB
$112.49

6" x 2" Ductile Steel Wheel Kingpinless Swivel Brake Caster - Part # P51062DUCTTLB

Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Load Capacity (lbs.): 2000 Link to Matching Rigid Brake Caster: P50062DUCTTLB
Wheel Diameter: 6" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Ductile Steel Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 4- 9/16"
Overall Height: 7-1/2"
 Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

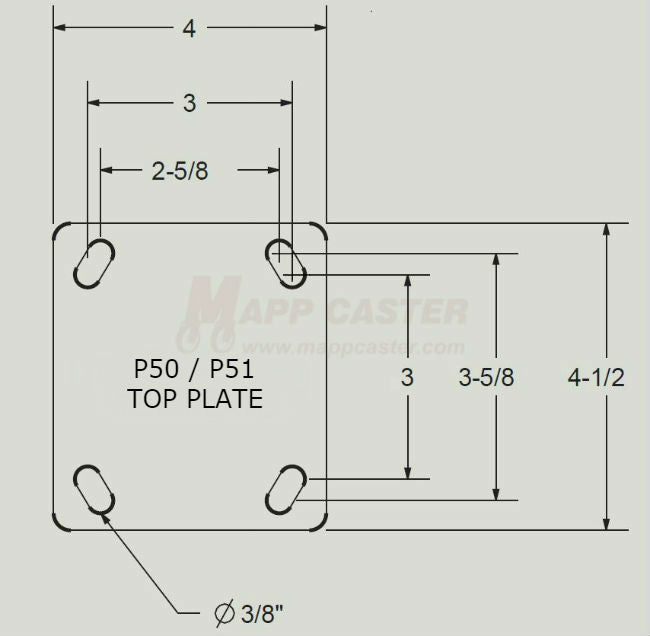

Temp Range: -45°F to 800°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Rockwell 75B  Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Red Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LDS620 Weight: 11.356 Lbs
