6" x 2" Ductile Steel Wheel Kingpinless Rigid Caster - 2,000 Lbs Capacity Heavy Duty
6" x 2" Ductile Steel Wheel Kingpinless Rigid Caster - 2,000 Lbs Capacity Heavy Duty

6" x 2" Ductile Steel Wheel Kingpinless Rigid Caster

SKU

P50062DUCT
$83.26

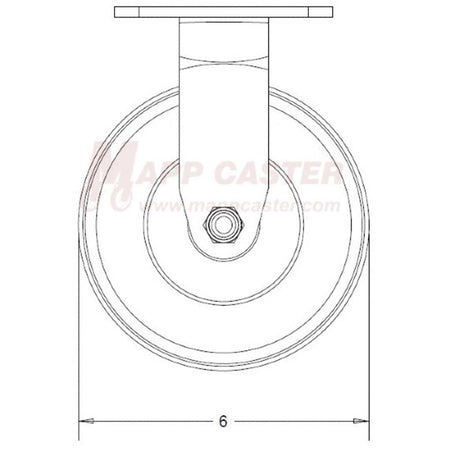

6" x 2" Ductile Steel Wheel Kingpinless Rigid Caster - Part # P50062DUCT

Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. For maximum capacity & durability, check out our premium forged steel wheel casters.

While ductile steel is very resilient, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 2000 Link to Matching Swivel Caster: P51062DUCT

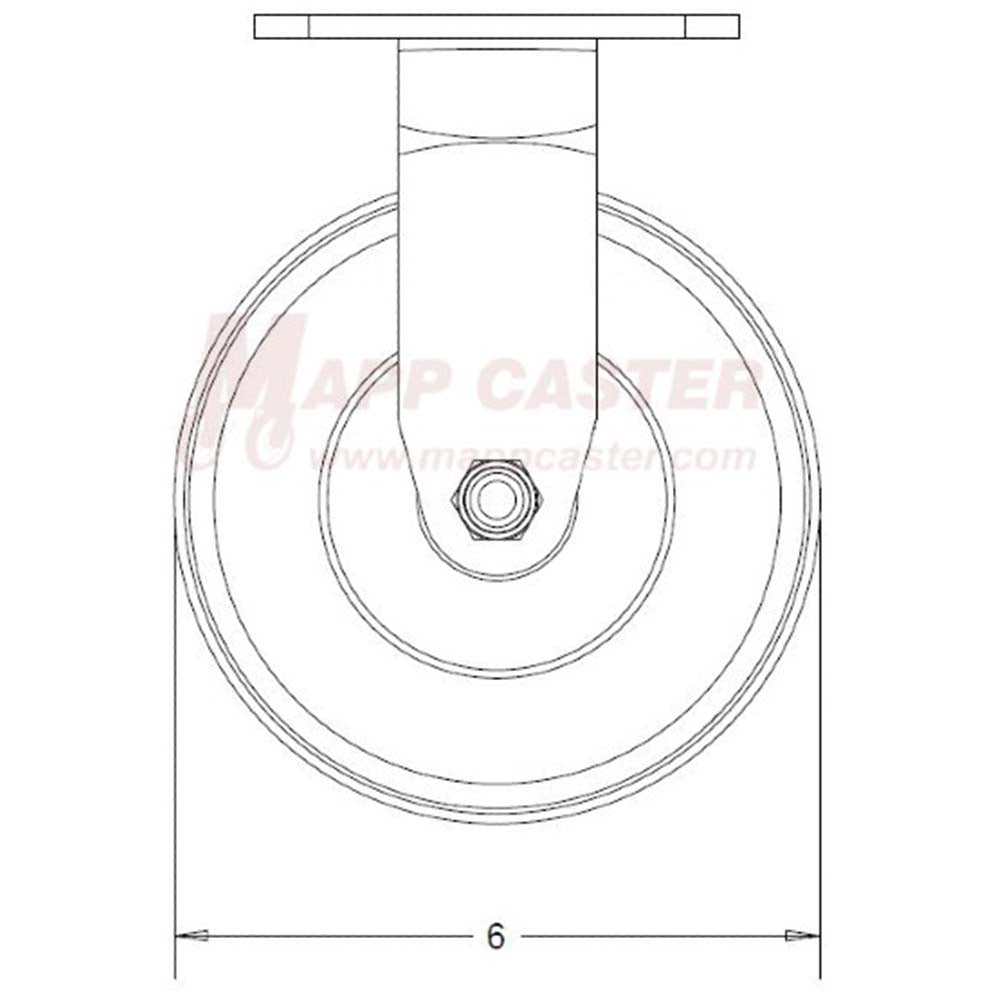

Wheel Diameter: 6" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Ductile Steel Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A

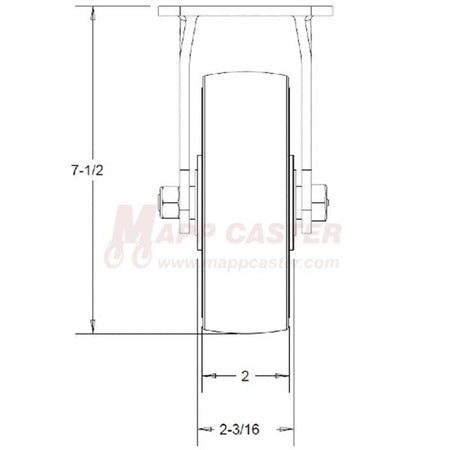

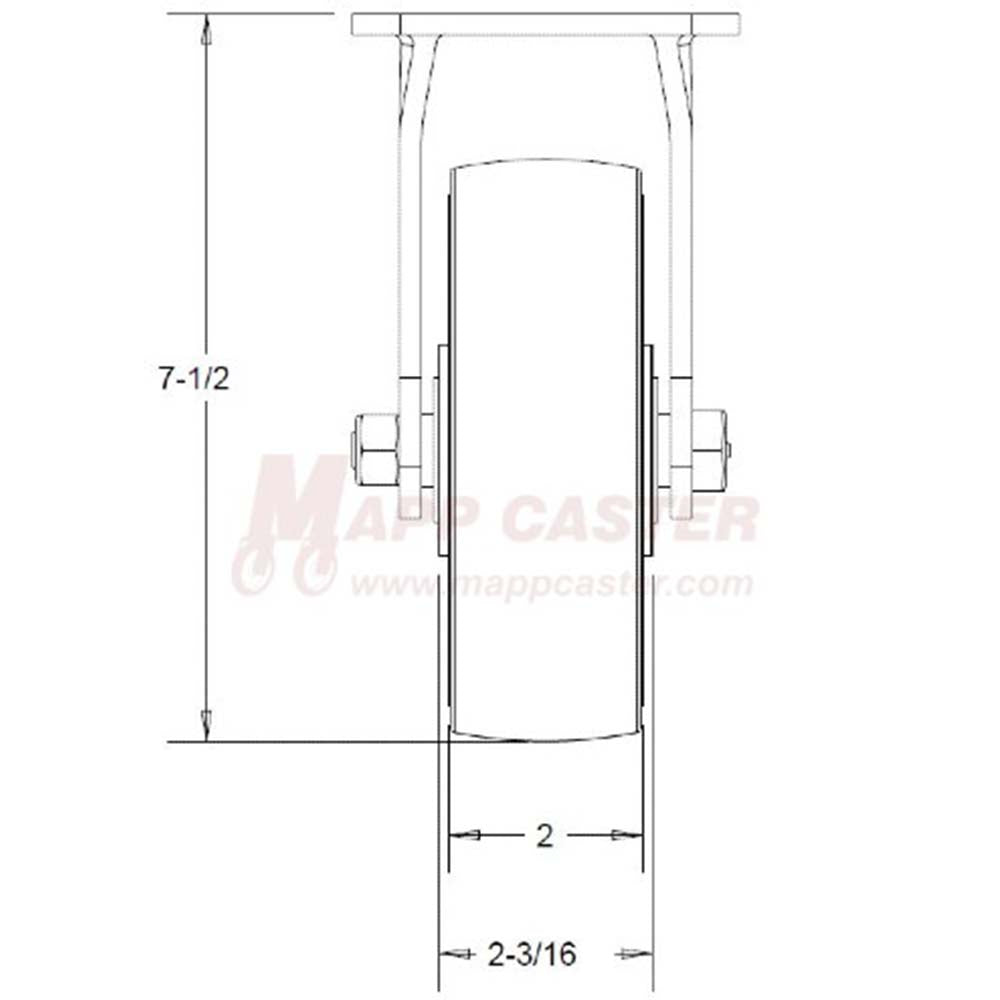

Overall Height: 7-1/2"
 Swivel Construction: N/A

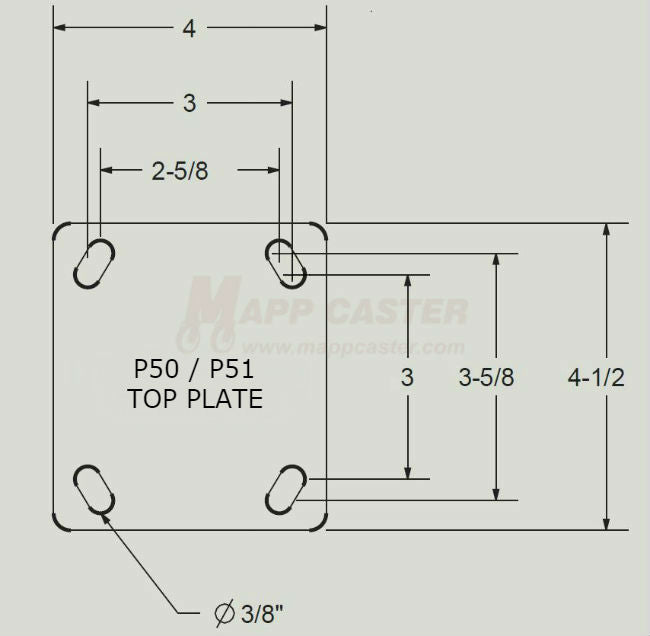

Temp Range: -45°F to 800°F Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Rockwell 75B  Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"

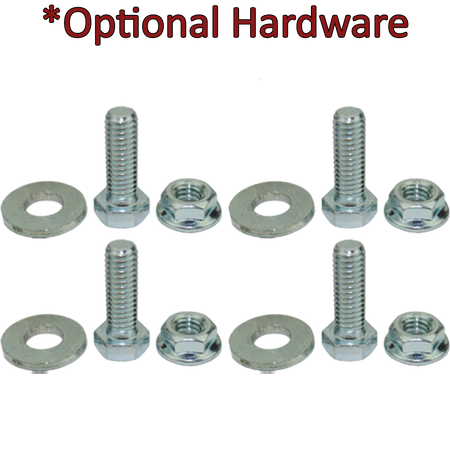

Wheel Color: Red Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LDS620 Weight: 10.78 Lbs
