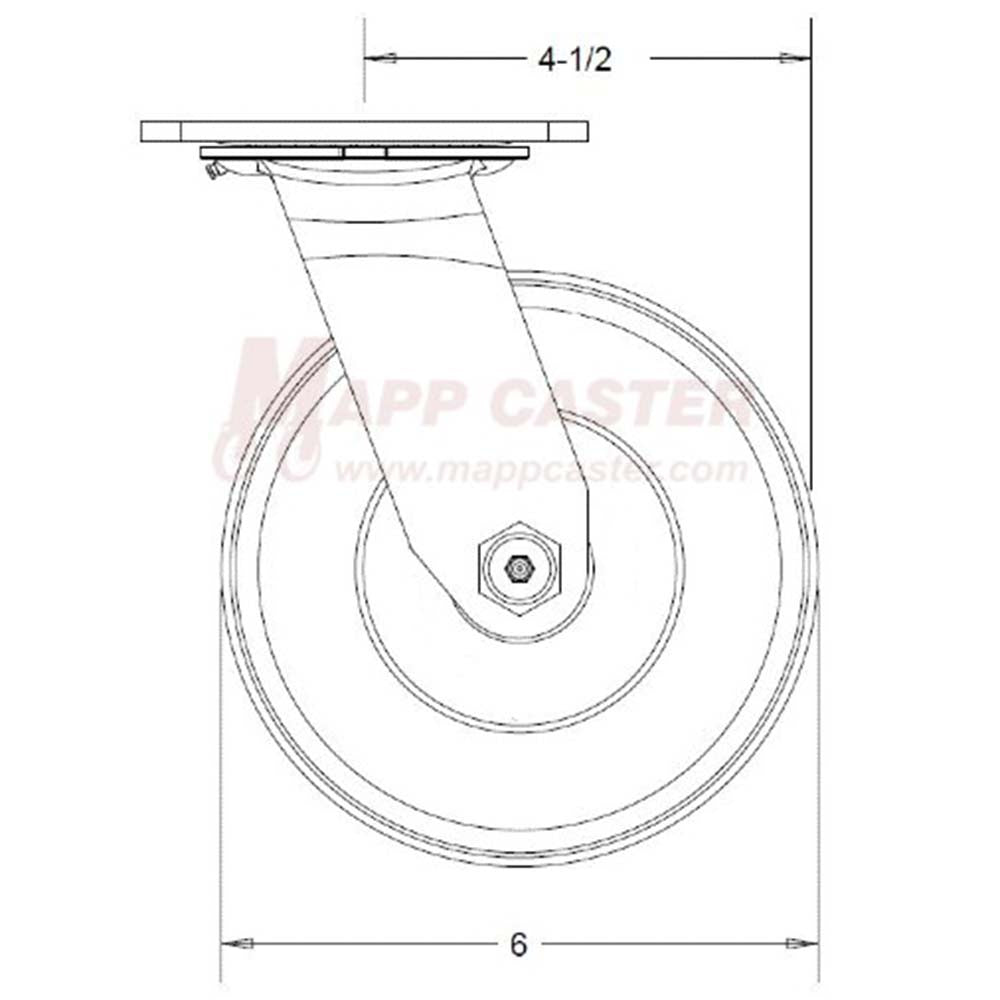

146RND620SB 6" x 2" Balloon Cushion Wheel Swivel Brake Caster - 650 Lbs Capacity Side View
5" x 2" Orange Poly on Aluminum Wheel Swivel Brake Caster - 900 Lbs Capacity OPTIONAL SWIVEL SECTION ACCESSORIES 146LUX520SB
5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S PLATE SHIMS

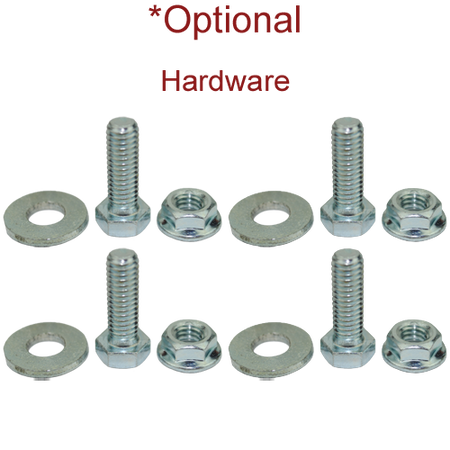

5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S OPTIONAL HARDWARE
146DVRB620S 6" x 2" Ductile Steel V-Groove Wheel Swivel Caster - 1250 Lbs Capacity
5" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster - 900 Lbs Capacity TOP PLATE
146RND620SB 6" x 2" Balloon Cushion Wheel Swivel Brake Caster - 650 Lbs Capacity Side View
5" x 2" Orange Poly on Aluminum Wheel Swivel Brake Caster - 900 Lbs Capacity OPTIONAL SWIVEL SECTION ACCESSORIES 146LUX520SB

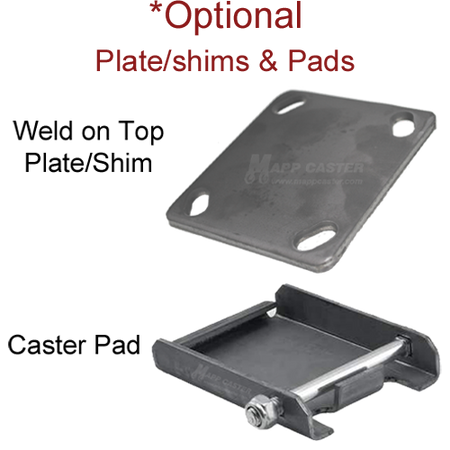

5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S PLATE SHIMS
5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S OPTIONAL HARDWARE

6" x 2" Ductile Steel V-Groove Wheel Swivel Caster

SKU

146DVRB620S
$57.43

6" x 2" Ductile Steel V-Groove Wheel Swivel Caster - Part # 146DVRB620S

Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1250

Link to Matching Rigid Caster: 146DVRB620R
Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Red
Wheel Type: Ductile V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Options Swivel Radius: 4- 9/16"

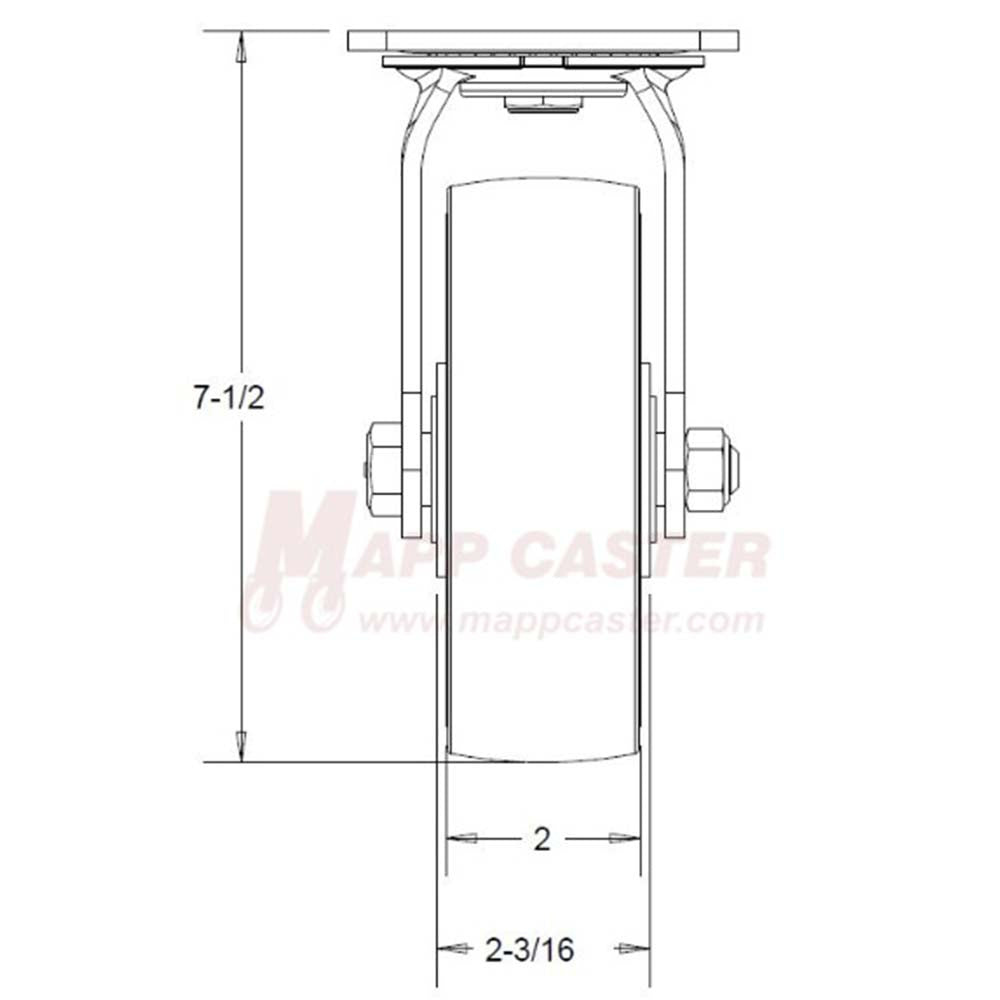

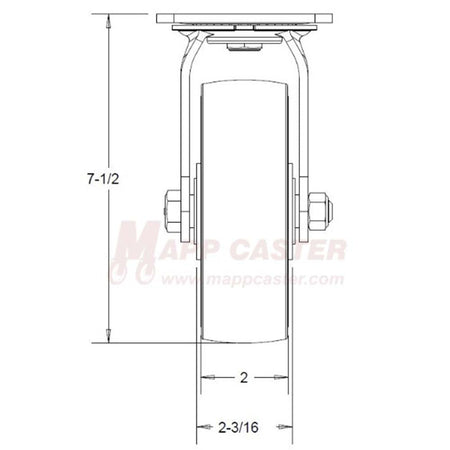

Overall Height: 7-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin

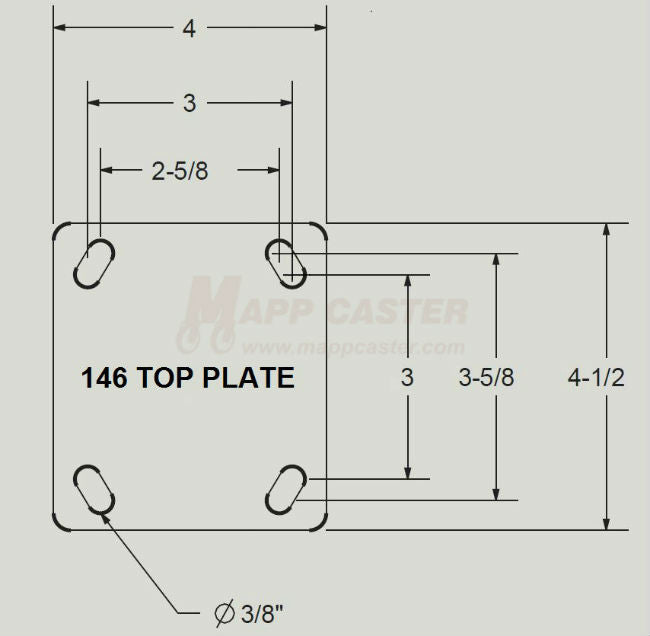

Temp Range: -45°F to 800°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LDV60JT84 Weight: 8.884 Lbs
