6" x 2" Ductile Steel V-Groove Wheel Kingpinless Swivel Caster - 1,500 Lbs Capacity Heavy Duty
6" x 2" Ductile Steel V-Groove Wheel Kingpinless Swivel Caster - 1,500 Lbs Capacity Heavy Duty

6" x 2" Ductile Steel V-Groove Wheel Kingpinless Swivel Caster

SKU

P51062DVRB
$86.35

6" x 2" Ductile Steel V-Groove Wheel Kingpinless Swivel Caster - Part # P51062DVRB

Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Load Capacity (lbs.): 1500

Link to Matching Rigid Caster: P50062DVRB
Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Red
Wheel Type: Ductile V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 4- 9/16"
Overall Height: 7-1/2" Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

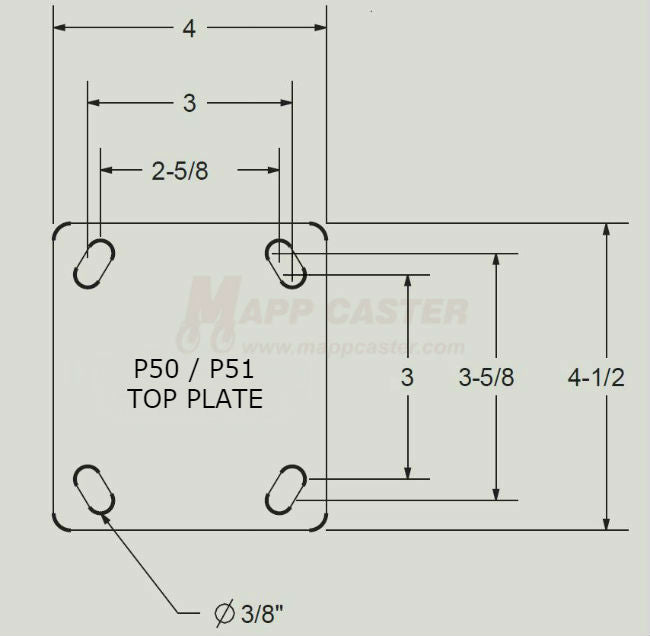

Temp Range: -45°F to 800°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVD60JT84 Weight: 11.174 Lbs
