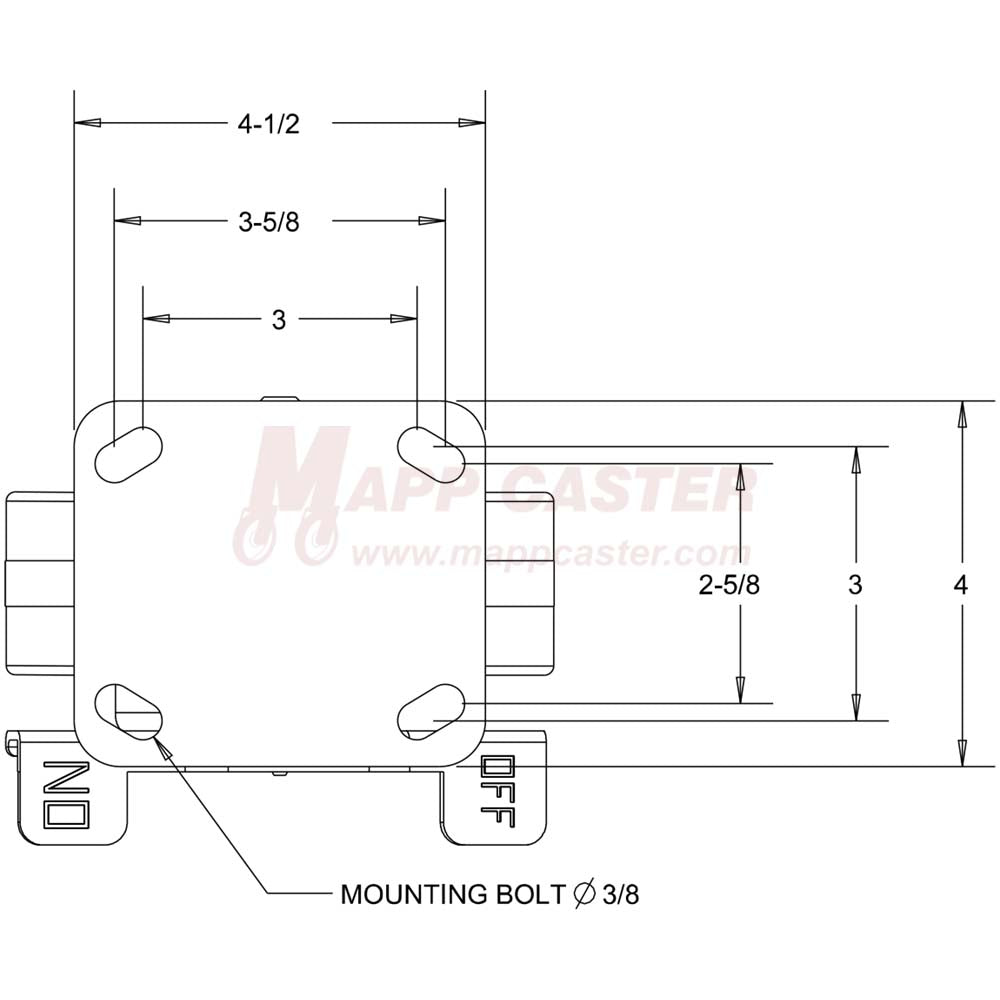

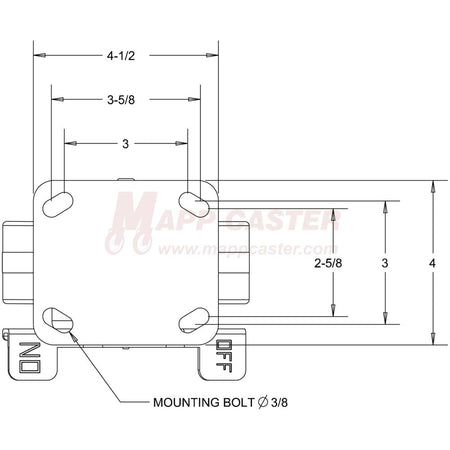

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Top View

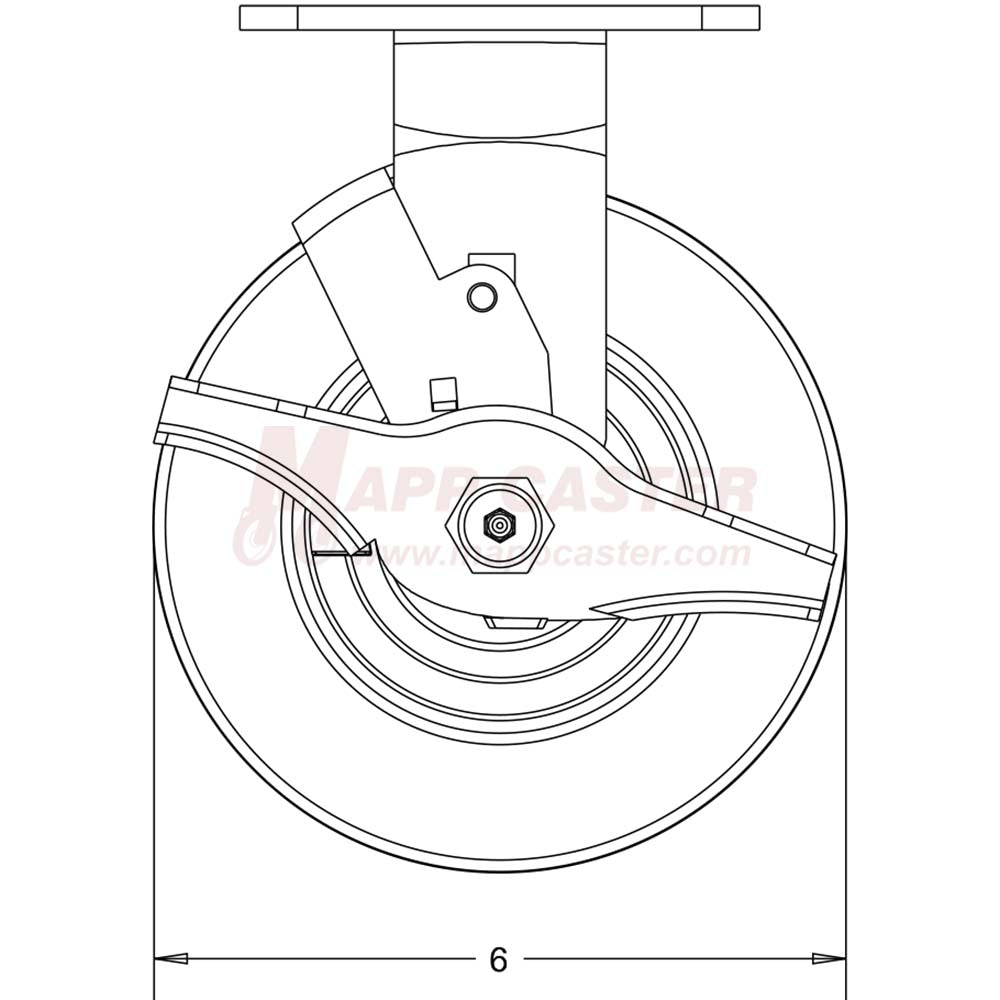

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Side View

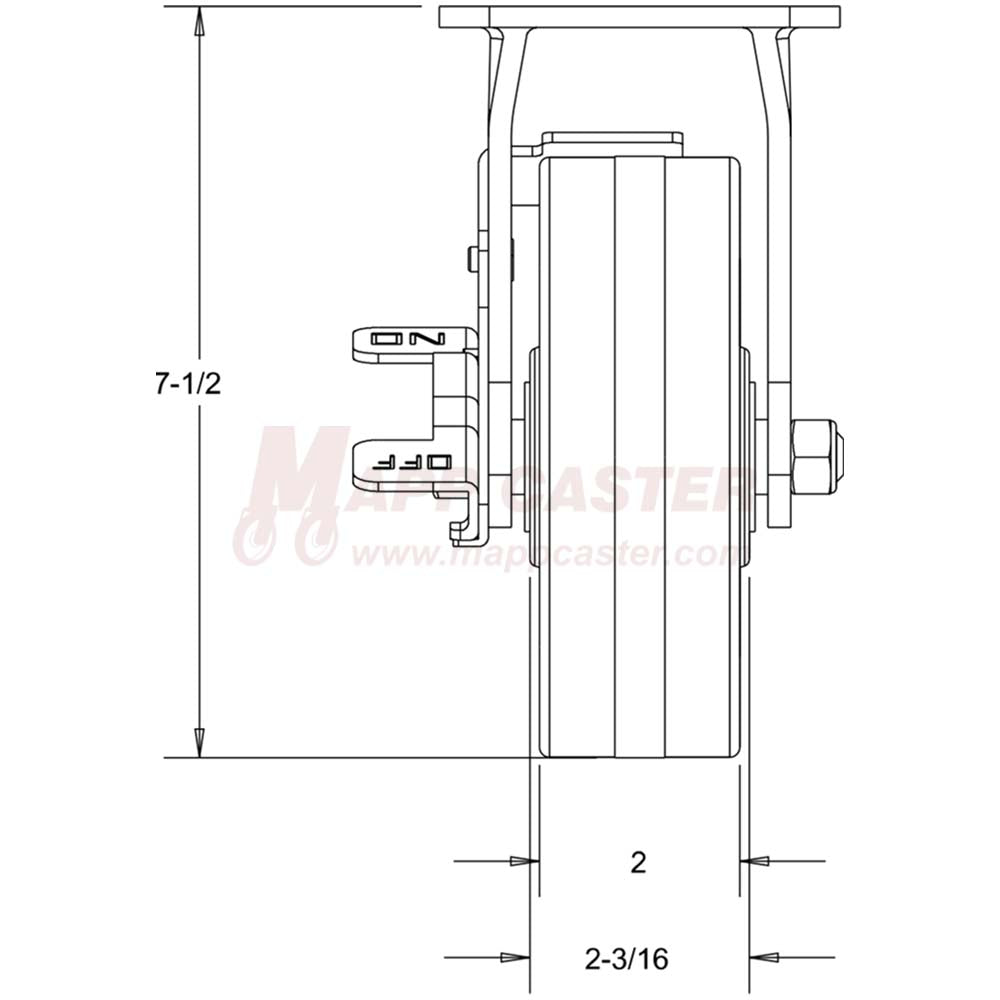

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Front View
6" x 2" Ductile Steel V-Groove Wheel Kingpinless Rigid Brake Caster - 1,500 Lbs Capacity Part # P50062DVRBTLB
146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Top View
146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Side View
146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Front View

6" x 2" Ductile Steel V-Groove Wheel Kingpinless Rigid Brake Caster

SKU

P50062DVRBTLB
$61.72

6" x 2" Ductile Steel V-Groove Wheel Rigid Brake Caster - Part # P50062DVRBTLB

Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1500

Link to Matching Swivel Brake Caster: P51062DVRBTLB
Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Red
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 7-1/2" Swivel Construction: N/A
Temp Range: -45°F to 800°F

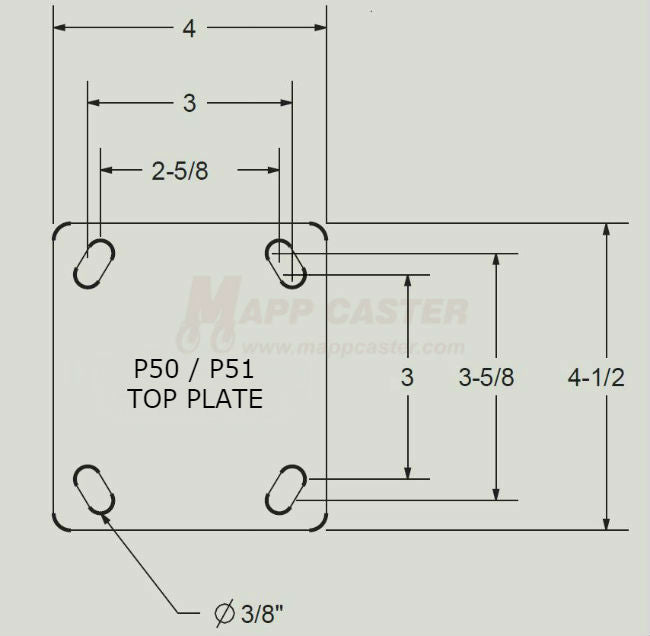

 		Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVD60JT84 Weight:  8.658 Lbs
