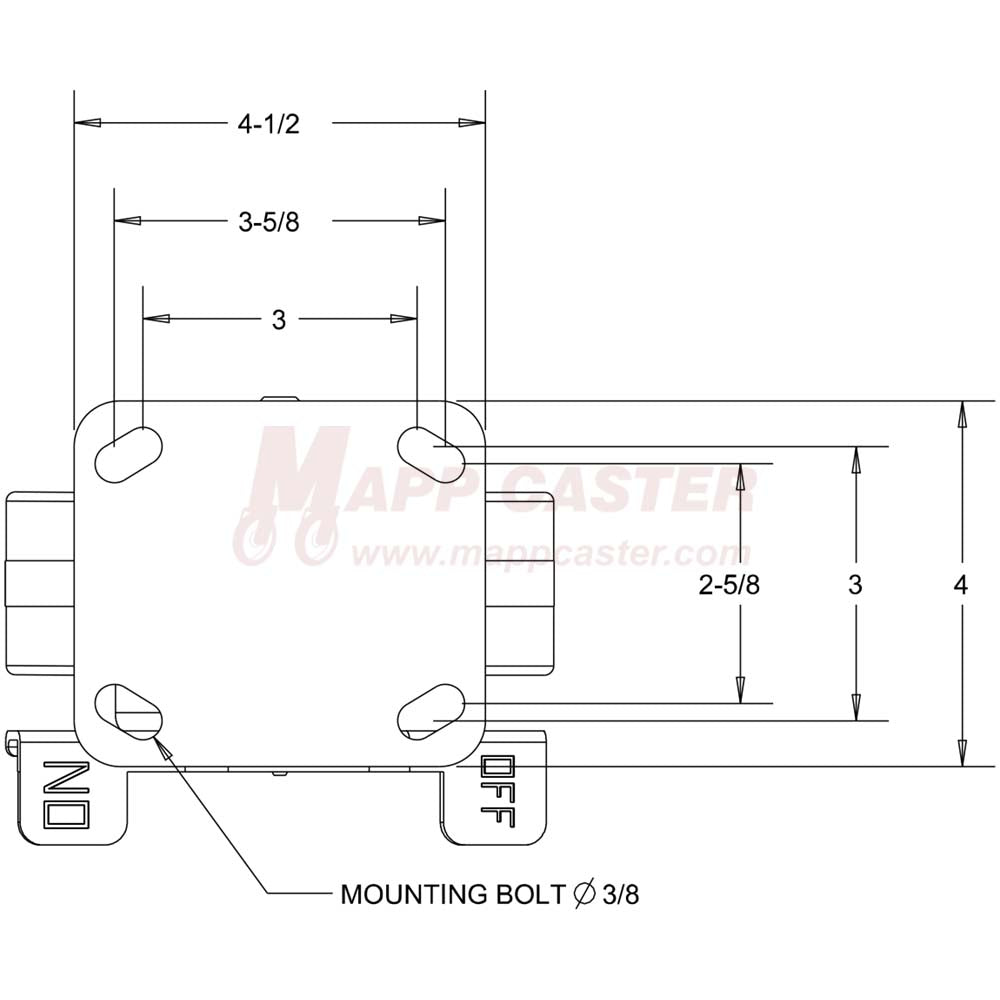

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Top View
146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Side View
146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Front View
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity SHIMS PLATES
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity HARDWARE
6" x 2" Double Flanged Cast Iron Wheel Rigid Brake Caster - 500 Lbs Capacity Part # 146DFCI620RB
5" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster - 900 Lbs Capacity TOP PLATE

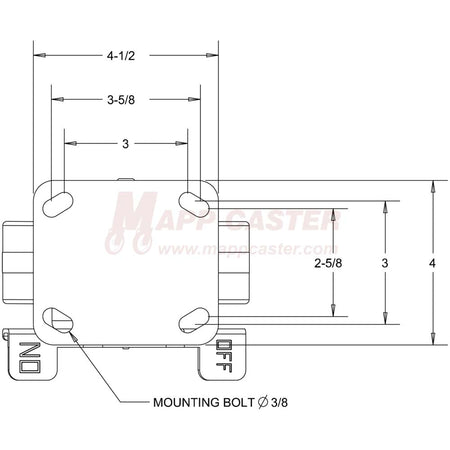

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Top View

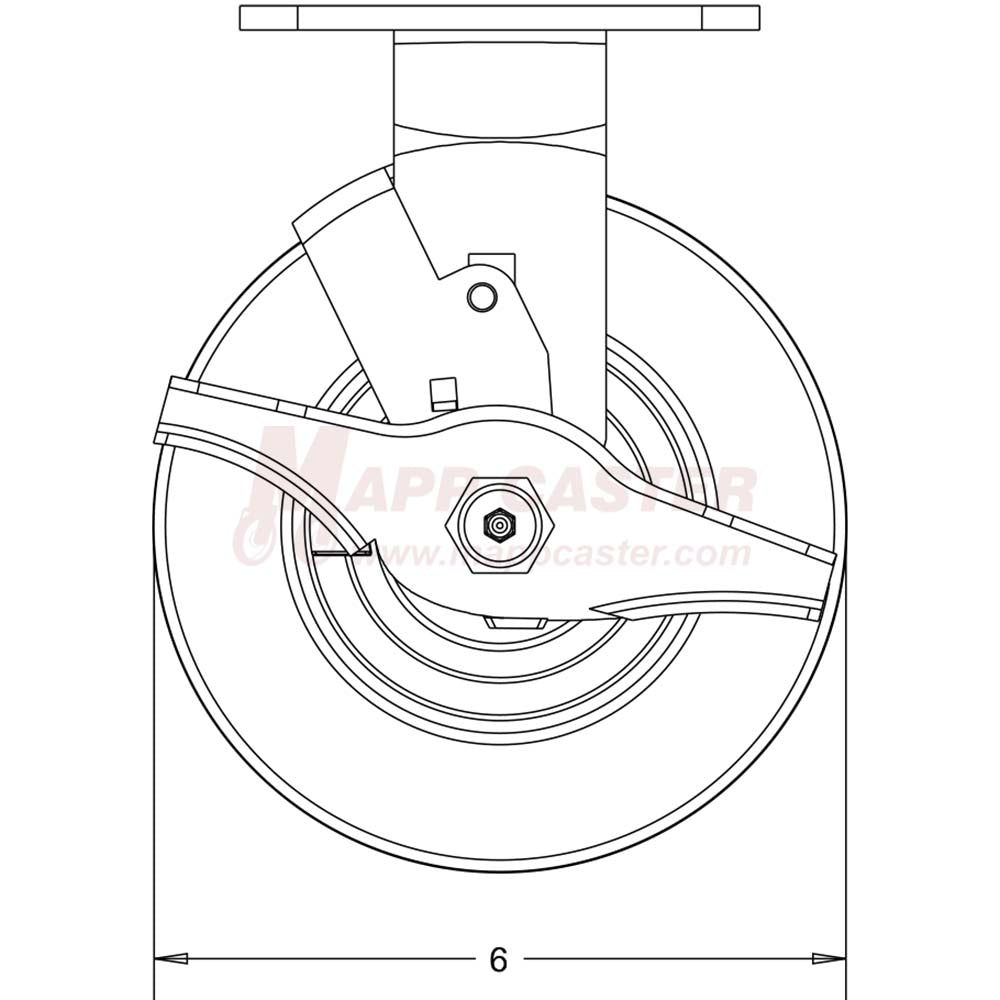

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Side View

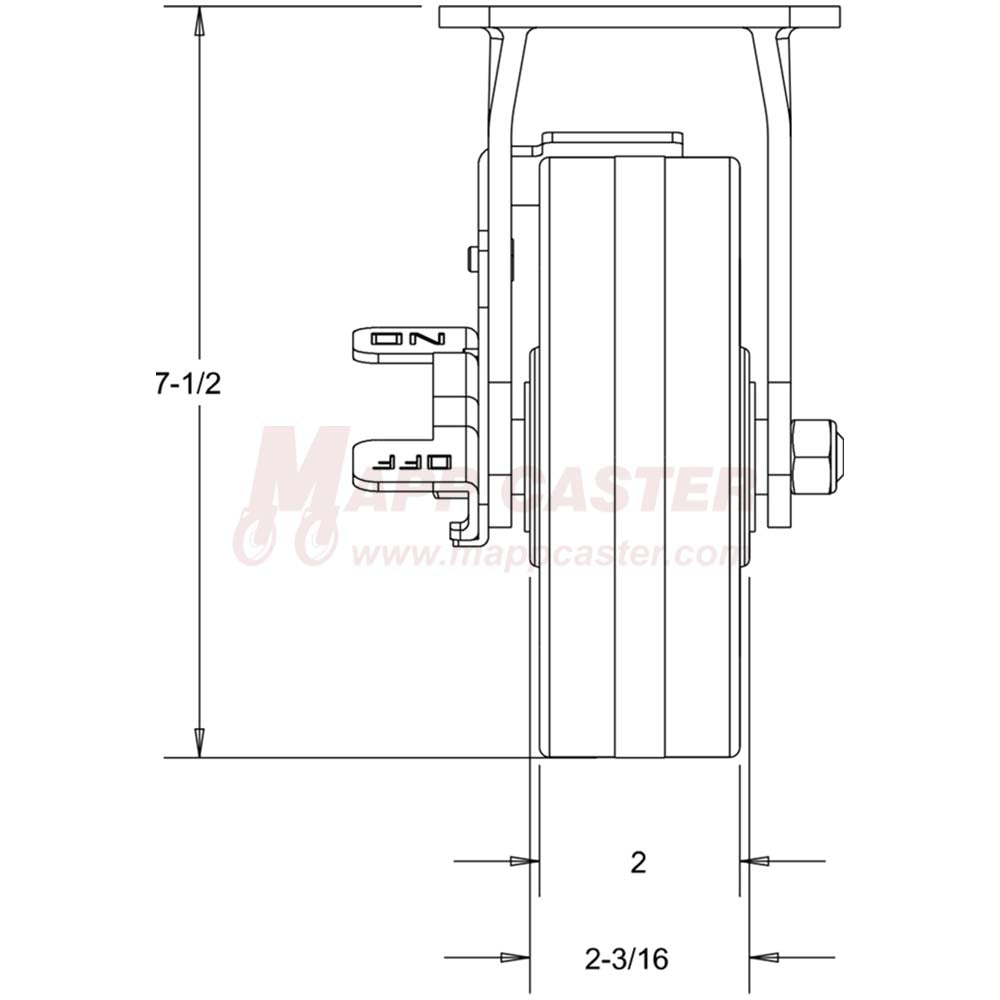

146RND620RB 6" x 2" Balloon Cushion Wheel Rigid Brake Caster - 650 Lbs Capacity Front View
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity SHIMS PLATES
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity HARDWARE

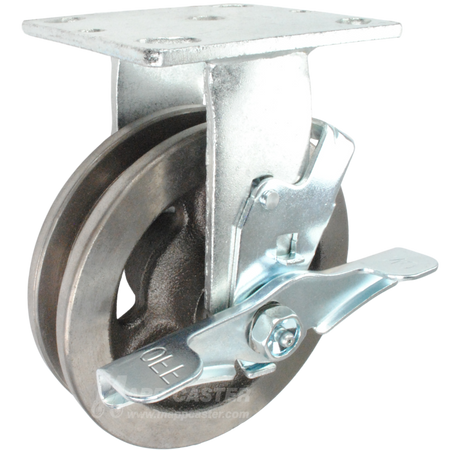

6" x 2" Double Flanged Cast Iron Wheel Rigid Brake Caster

SKU

146DFCI620RB
$192.59

6" x 2" Double Flanged Cast Iron Wheel Rigid Brake Caster - Part # 146DFCI620RB

Double-flanged wheels are designed with two flanges, one on each side of the wheel, which helps guide the cart along tracks while preventing it from derailing.

The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel and forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 500 Link to Matching Swivel Caster: Contact Us

Outer Wheel Diameter: 6"

Inner Wheel Diameter: 5"

Tread Width: 2"

Tread Width without Flanges: 3/4"

Wheels Recess Area Depth: 1/2"

 Wheel Durometer: Brinell 145
Wheel Type: Double Flanged Cast Iron
 Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Roller Bearing Swivel Radius: N/A
Overall Height: 7-1/2" Swivel Construction: N/A

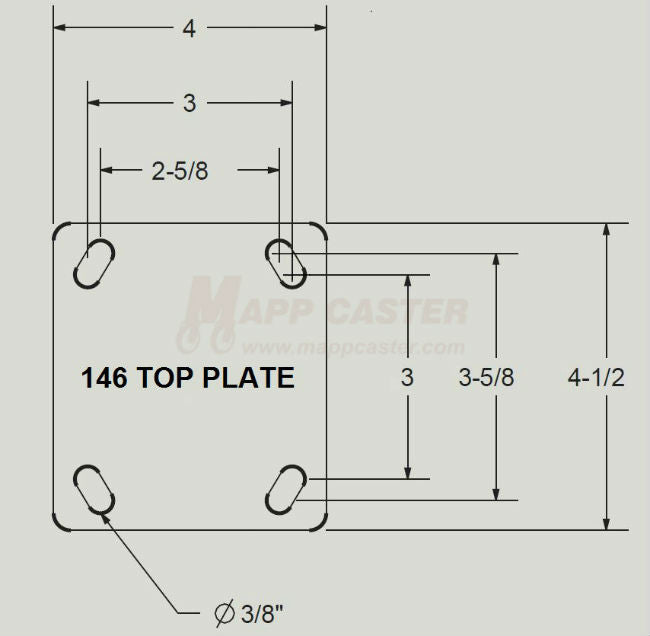

Temp Range: -40°F to 180°F  Mounting Plate: 4" x 4-1/2"
Wheel Color: Silver Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Mounting Bolt Size: 3/8" or Smaller Link to Replacement Wheel: PFD051011201
Weight: 9.118 Lbs
