6" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - 1,400 Lbs Capacity

6" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - Part # P51062CIRBFCB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Capacity: 1,400 Lbs.	Mounting Plate: 4" x 4-1/2"

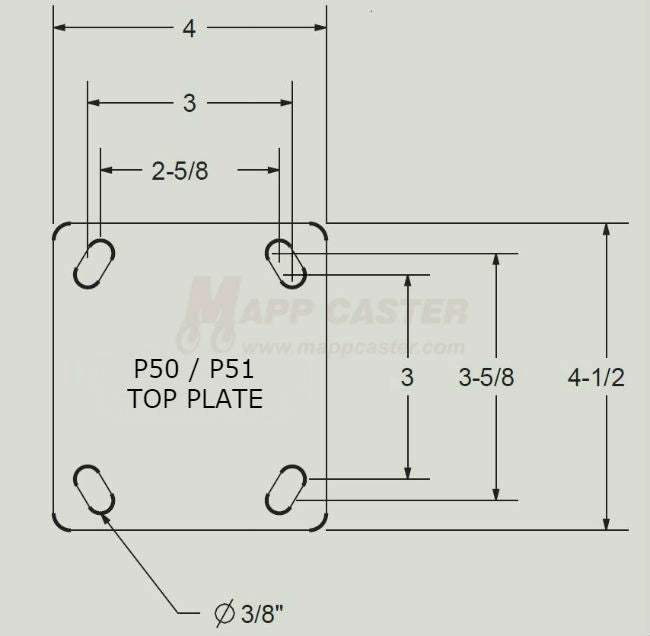

Wheel Diameter:6"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:7-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Cast Iron	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 7-5/8"
Wheel Color: Silver	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 180˚F	Weight: 10.332 Lbs
Link to Replacement Wheel: QSTL6M0	Link to Matching Rigid Brake Caster: P50062CIRBTLB

Capacity: 1,400 lbs.

Wheel Diameter:6"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Cast Iron

Wheel Durometer:Brinell 145

Overall Height:7-1/2"

Swivel Radius:7-5/8"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Silver

Temp Range:-45˚F to 180˚F

Weight:10.332 Lbs

Link to Replacement Wheel:QSTL6M0

Link to Matching Rigid Brake Caster:P50062CIRBTLB
