6" x 2" Cast Iron Wheel Kingpinless Rigid Brake Caster - 1,400 Lbs Capacity

6" x 2" Cast Iron Wheel Kingpinless Rigid Brake Caster - Part # P50062CIRBTLB

Cast iron is the industry standard metal caster wheel used across a wide range of heavy duty applications. This wheel differs from traditional cast iron designs because it is classified as semi-steel. With reduced carbon content & additional steel blended into the casting, it delivers improved capacities, strength, durability & impact resistance compared to standard cast iron wheels. In addition to its stronger material composition, this wheel also features heavier duty spokes for added reinforcement & durability.

While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our other steel casters caster options.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

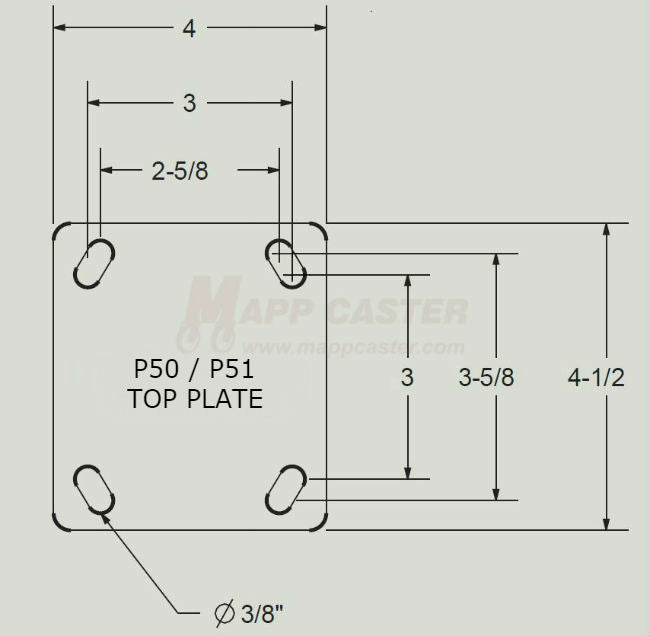

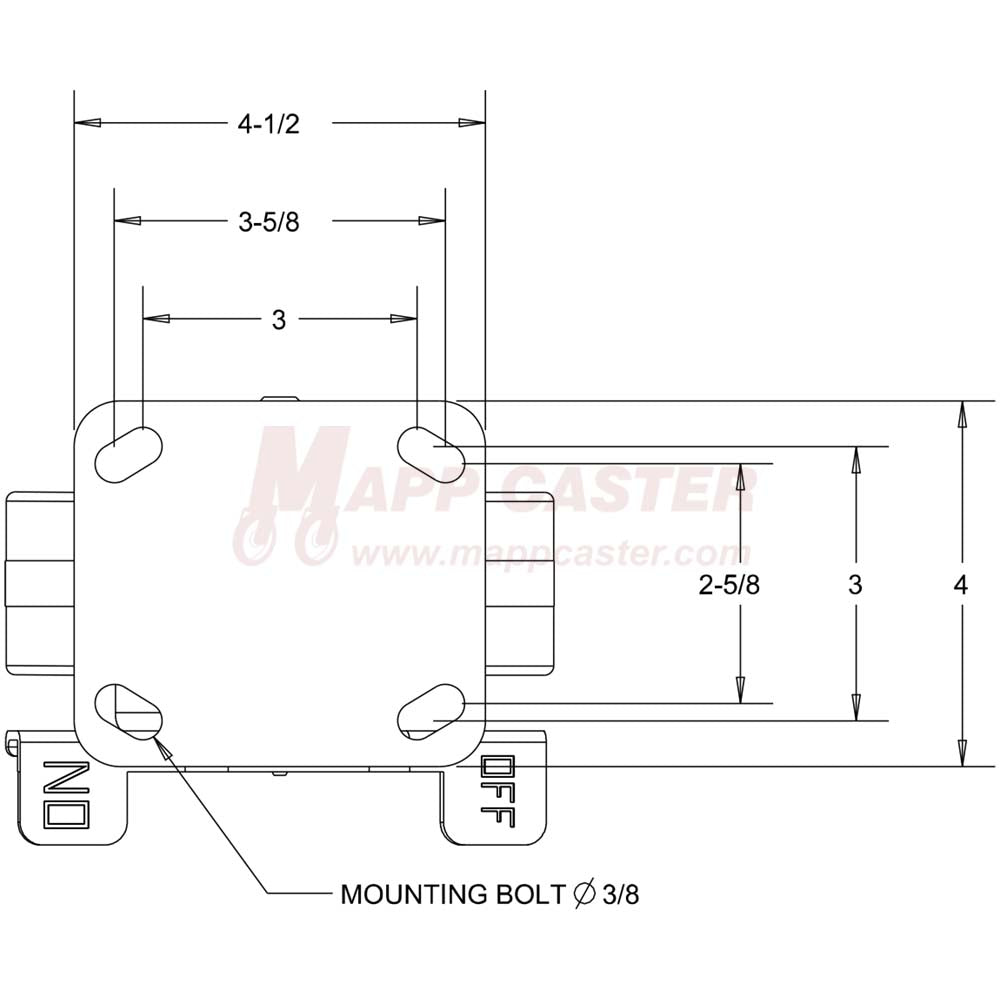

Capacity: 1,400 Lbs.	Mounting Plate: 4" x 4-1/2"

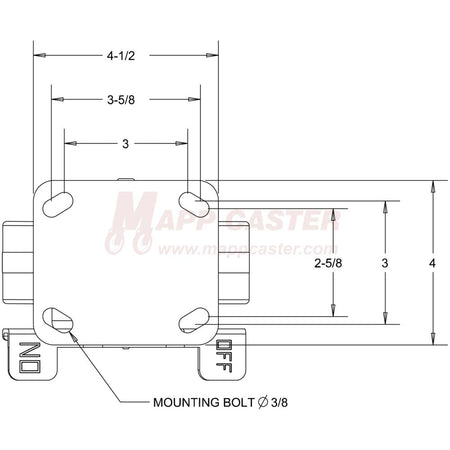

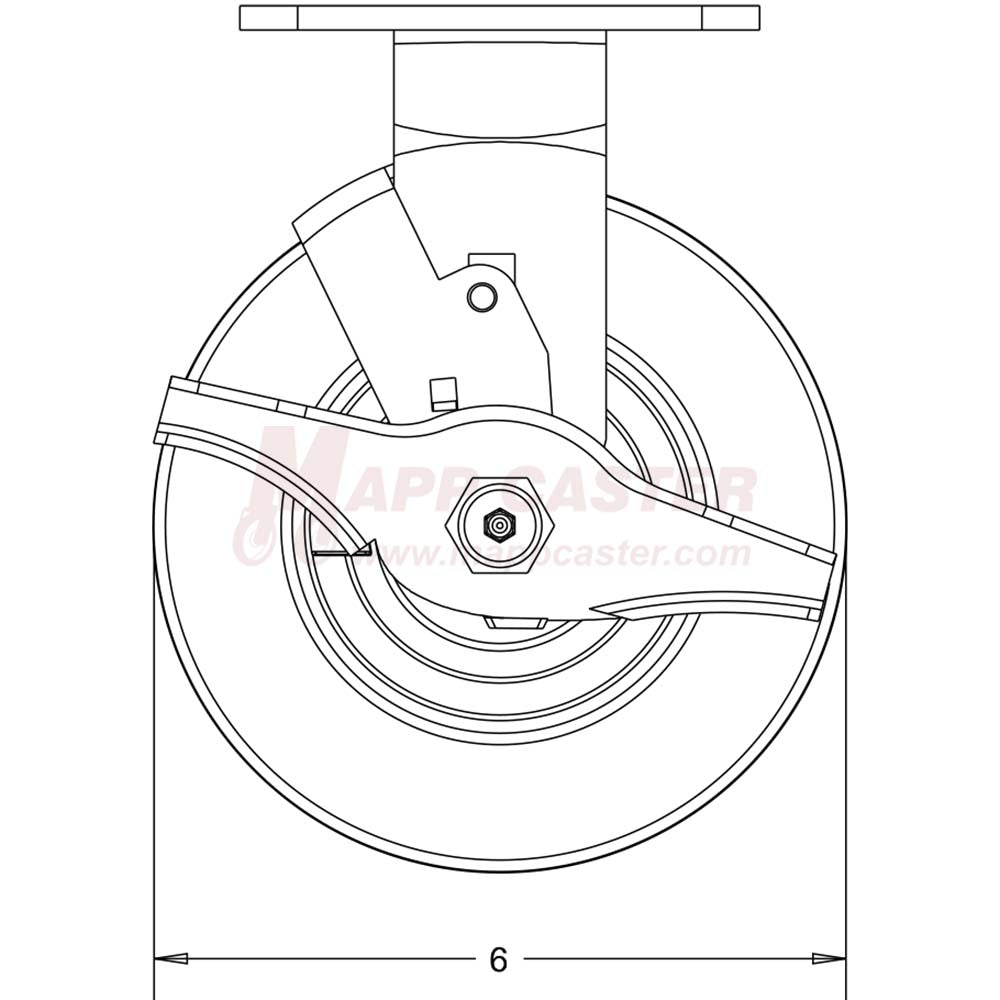

Wheel Diameter:6"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller

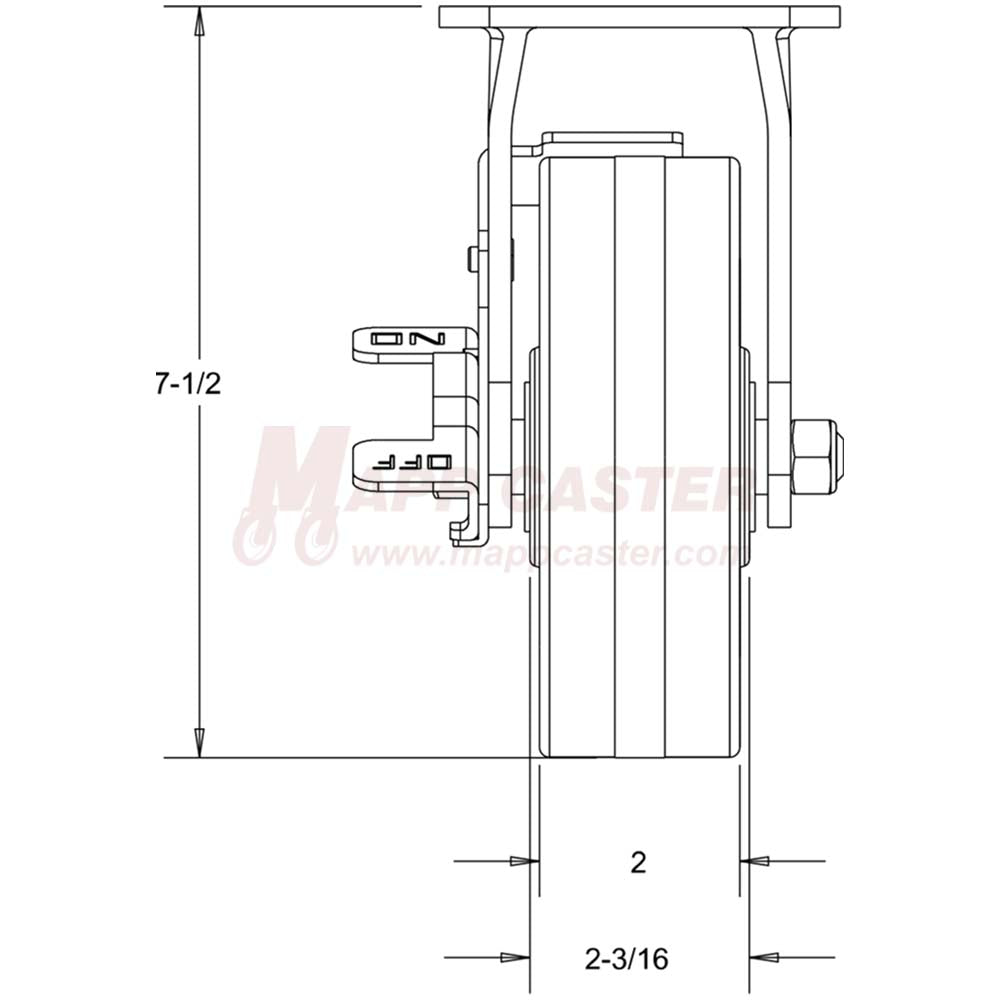

Tread Shape:Flat	Overall Height:7-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145	Temp Range: -45˚F to 600˚F
Wheel Color: Silver	Weight: 7.906 Lbs
Link to Replacement Wheel: QSTL6M0	Link to Matching Swivel Brake Caster: P51062CIRBTLB
	Link to Matching Swivel Caster w/ Face Contact Brake: P51062CIRBFCB

Capacity: 1,400 lbs.

Wheel Diameter:6"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Cast Iron

Wheel Durometer:Brinell 145

Overall Height:7-1/2"

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Silver

Temp Range:-45˚F to 600˚F

Weight:7.906 Lbs

Link to Replacement Wheel:QSTL6M0

Link to Matching Swivel Brake Caster:P51062CIRBTLB

Link to Matching Swivel Caster w/ Face Contact Brake:P51062CIRBFCB
