6" x 2" Cast Iron V-Groove Wheel Swivel Caster

SKU

146VIRB620S
Regular price $57.06

6" x 2" Cast Iron V-Groove Wheel Swivel Caster - Part #: 146VIRB620S

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1000

Link to Matching Rigid Caster: 146VIRB620R

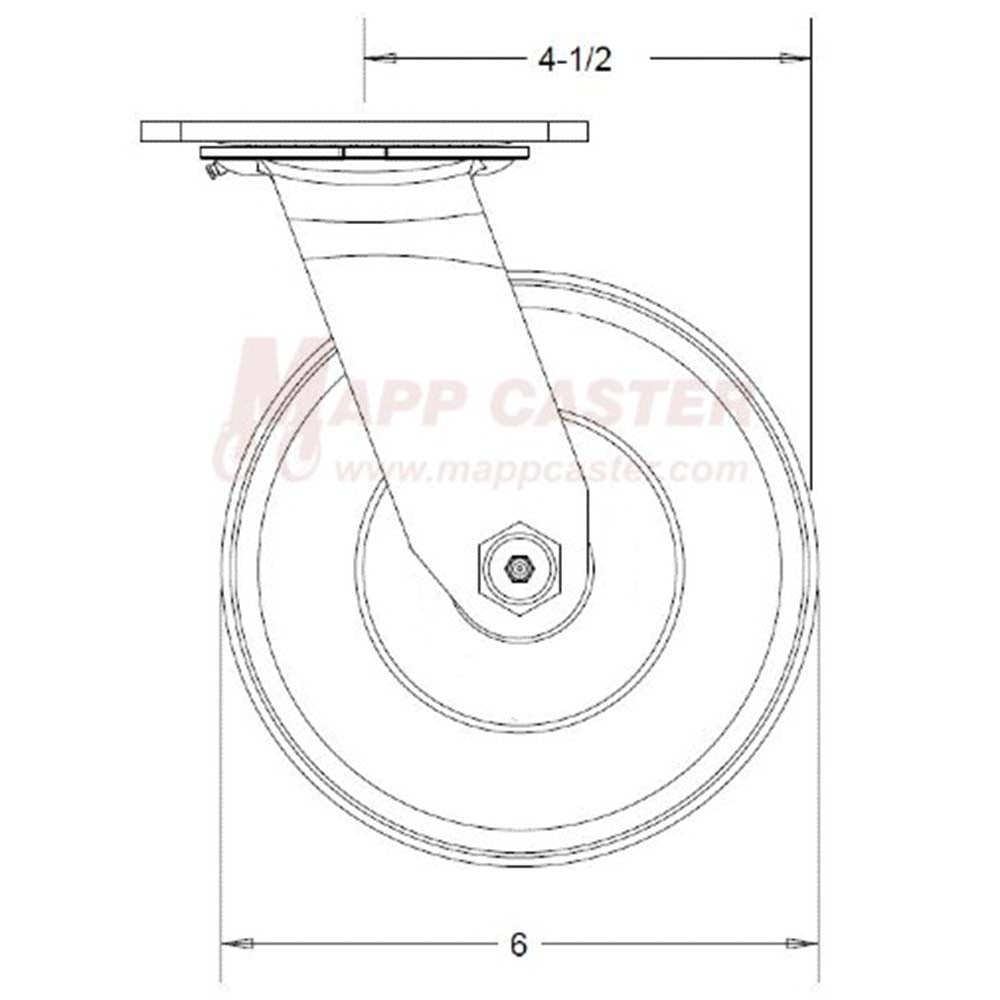

Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Options Swivel Radius: 4- 9/16"

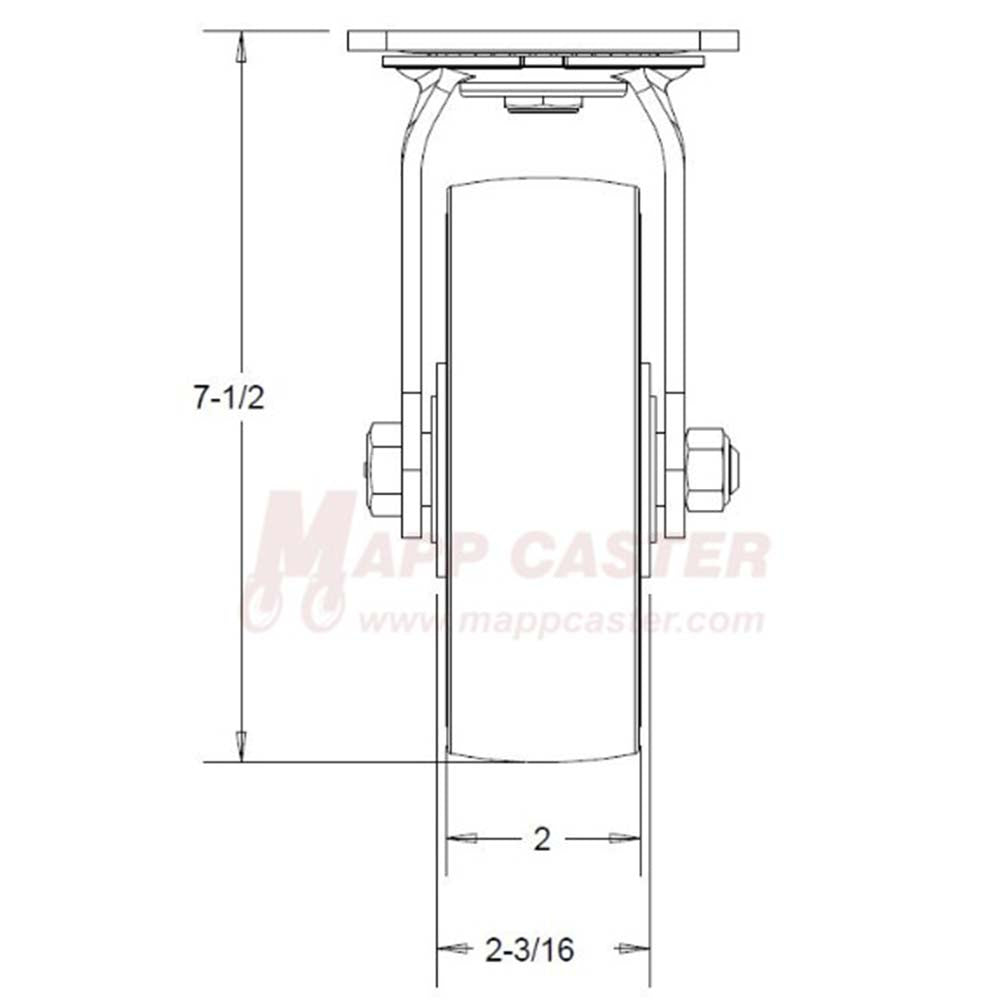

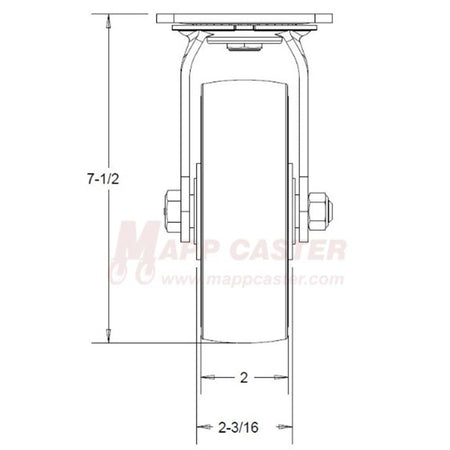

Overall Height: 7-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin

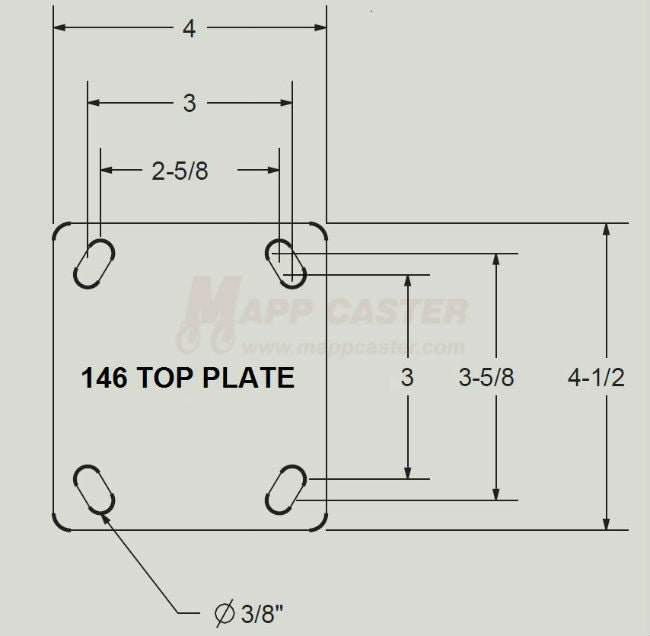

Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QVGR6MO Weight:  8.96 Lbs
