6" Heavy Duty Casters | 6" x 2-1/2" Ductile Steel Wheel Swivel Caster - 26HS17
6" Heavy Duty Casters | 6" x 2-1/2" Ductile Steel Wheel Swivel Caster - 26HS17

6" x 2-1/2" Ductile Steel Wheel HS Swivel Caster - 2,000 Lbs Capacity

SKU

26HS17
$159.33

6" x 2-1/2" Ductile Steel Wheel HS Swivel Caster - Part # 26HS17

Ductile steel has similar capacities, impact strength, and durability when compared to forged steel wheels, but is more economically priced. Ductile steel s a combination of alloys that give it a much higher weight capacity than standard cast iron wheels, but not quite the capacity and durability of forged steel wheels.

While ductile steel is very resilient, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

Note this wheel has changed since the caster picture was taken.  Please look at the replacement wheel picture (see link below) for a better example. The part number for the replacement wheel is LCDS625.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 2,000 Link to Matching Rigid Caster: 26HR12
Wheel Diameter: 6" Caster Rig Material Type: ASTM 1045 Steel
Tread Width: 2-1/2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Ductile Steel Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 5-3/16"
Overall Height: 7-1/2" Swivel Construction:  Precision Machined & Hardened Double Ball Raceway - 3/4" Kingpin

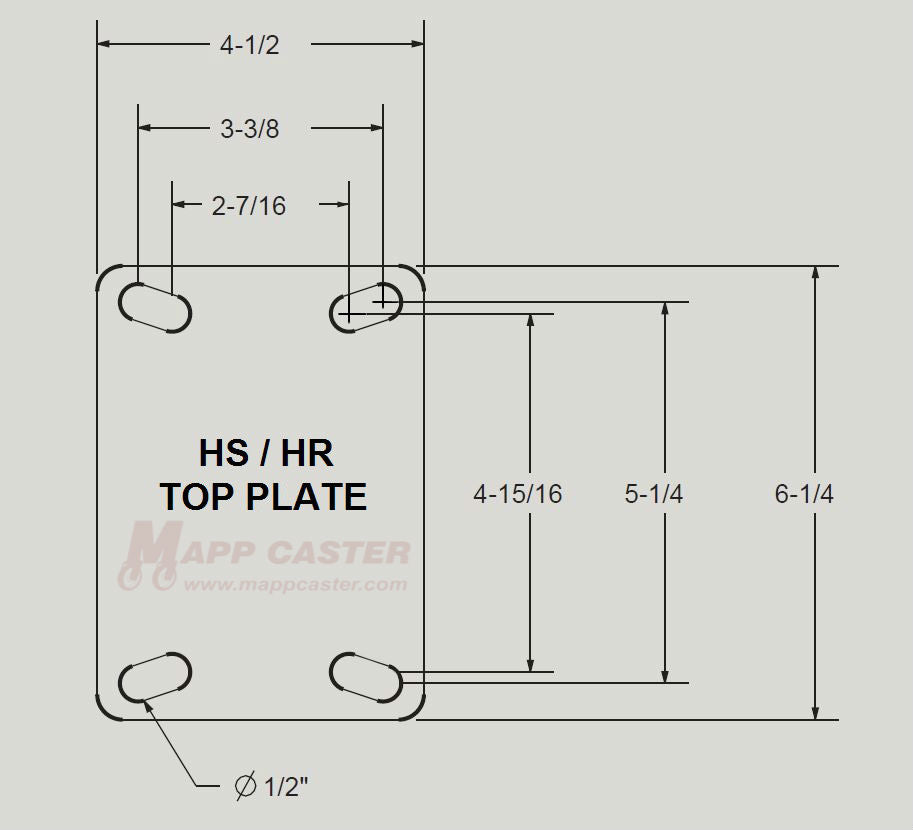

Temp Range: -40 to 800˚F Mounting Plate: 4-1/2" x 6-1/4"
Wheel Hardness: Rockwell 74B Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Color: Red Mounting Bolt Size: 1/2" or Smaller
Link to Replacement Wheel: LCDS630 Weight: 15.5 lbs.
