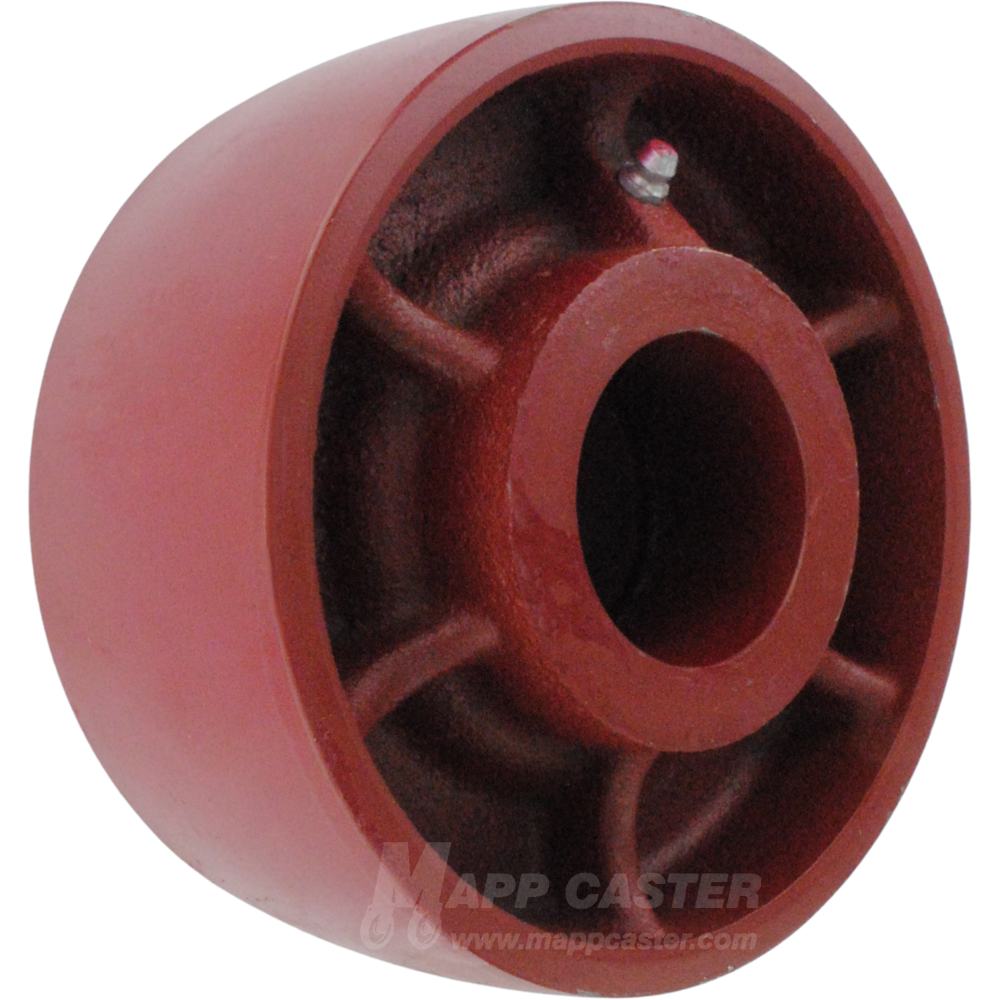

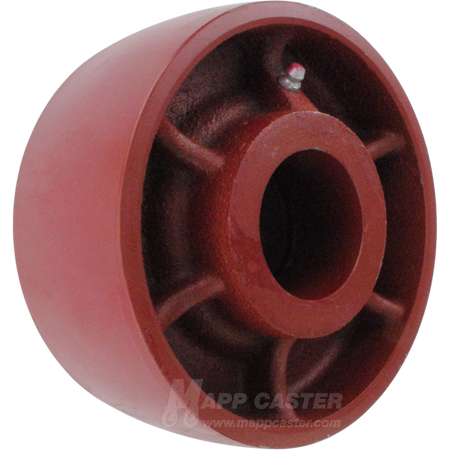

6" x 2-1/2" Ductile Steel Wheel - 3,500 Lbs Capacity Part # LCDS625
6" x 2-1/2" Ductile Steel Wheel - 3,500 Lbs Capacity Part # LCDS625

6" x 2-1/2" Crowned Ductile Steel Wheel - 3,500 Lbs Capacity

SKU

LCDS625
$79.06

6" x 2-1/2" Crowned Ductile Steel Wheel - Part # LCDS625

Ductile steel wheels offer comparable strength, impact resistance, and durability to forged steel wheels—at a more affordable price. Made from a blend of high-performance alloys, they support significantly more weight than cast iron wheels, though slightly less than forged steel. While ductile steel is extremely tough and resilient, it can be harsh on floors and may cause damage over time.

For heavy-duty applications that require floor protection, consider our polyurethane on iron wheels.

Specifications:

Capacity: 3,500 Lbs.
Wheel Type: Ductile Steel
Wheel Diameter:6"
Hub Length (without Bearings):2-3/4"
Tread Width: 2-1/2"
Hub Length (with Bearings):See Bearing Options
Bearing Type:None
Wheel Durometer:Rockwell 74B
Plain Bore ID:1-15/16"
Wheel Tread Shape:Crowned
Accepted Axle/Bearing ID:See Bearing Options
Wheel Color:Red
Temp Range: -40˚F to 800˚F
Weight: 9.708 lbs
Capacity icon Capacity:3,500 lbs.
Wheel Type iconWheel Type:Ductile Steel
Wheel Diameter icon Wheel Diameter:6"
Tread Width icon Tread Width:2-1/2"
Hub Length (without Bearings) icon
Hub Length (without Bearings):
2-3/4"
Hub Length (with Bearings) icon
Hub Length (with Bearings): See Bearing Options
Bearing Type icon Bearing Type:None
Plain Bore ID icon Plain Bore ID:1-15/16"
Accepted Axle/Bearing ID icon Accepted Axle/Bearing ID:See Bearing Options
Wheel Durometer icon Wheel Durometer:Rockwell 74B
Wheel Tread Shape iconWheel Tread Shape:Crowned
Temp Range icon Temp Range: -40˚F to 800˚F
Wheel Color iconWheel Color:Red
Weight icon Weight:9.708 lbs
