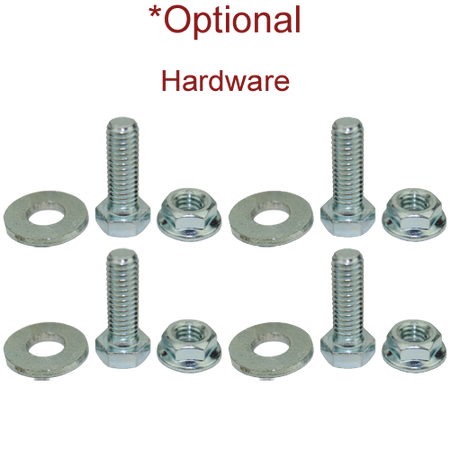

5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S OPTIONAL HARDWARE
146FVG620R 6" x 1-3/4" Forged Steel V-Groove Wheel Rigid Caster - 1250 Lbs Capacity
5" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster - 900 Lbs Capacity TOP PLATE
5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S PLATE SHIMS
5" x 2" Cast Iron V-Groove Wheel Swivel Caster - 900 Lbs Capacity 146VIRB520S OPTIONAL HARDWARE

6" x 1-3/4" Forged Steel V-Groove Wheel Rigid Caster

SKU

146FVG620R
$96.30

6" x 1-3/4" Forged Steel V-Groove Wheel Rigid Caster - Part #: 146FVG620R

Forged V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-Groove. Made from forged steel, these wheels are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.

Specifications:

Load Capacity (lbs.): 1250

Link to Matching Swivel Caster: 146FVG620S

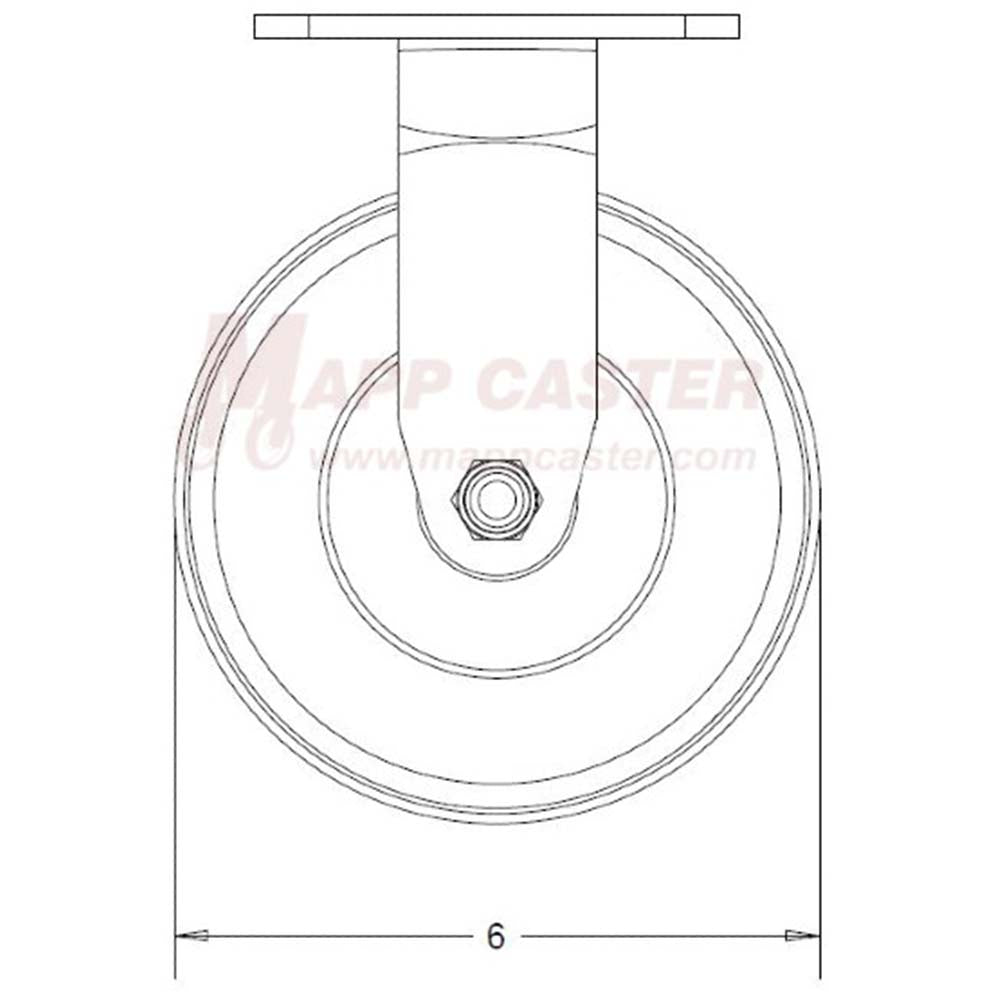

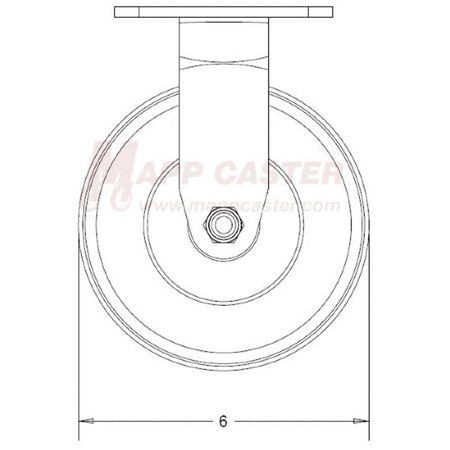

Wheel Diameter: 6" Wheel Durometer: Brinell 145
Tread Width: 1-3/4" Wheel Color: Black
Wheel Type: Steel V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Options Swivel Radius: 4"

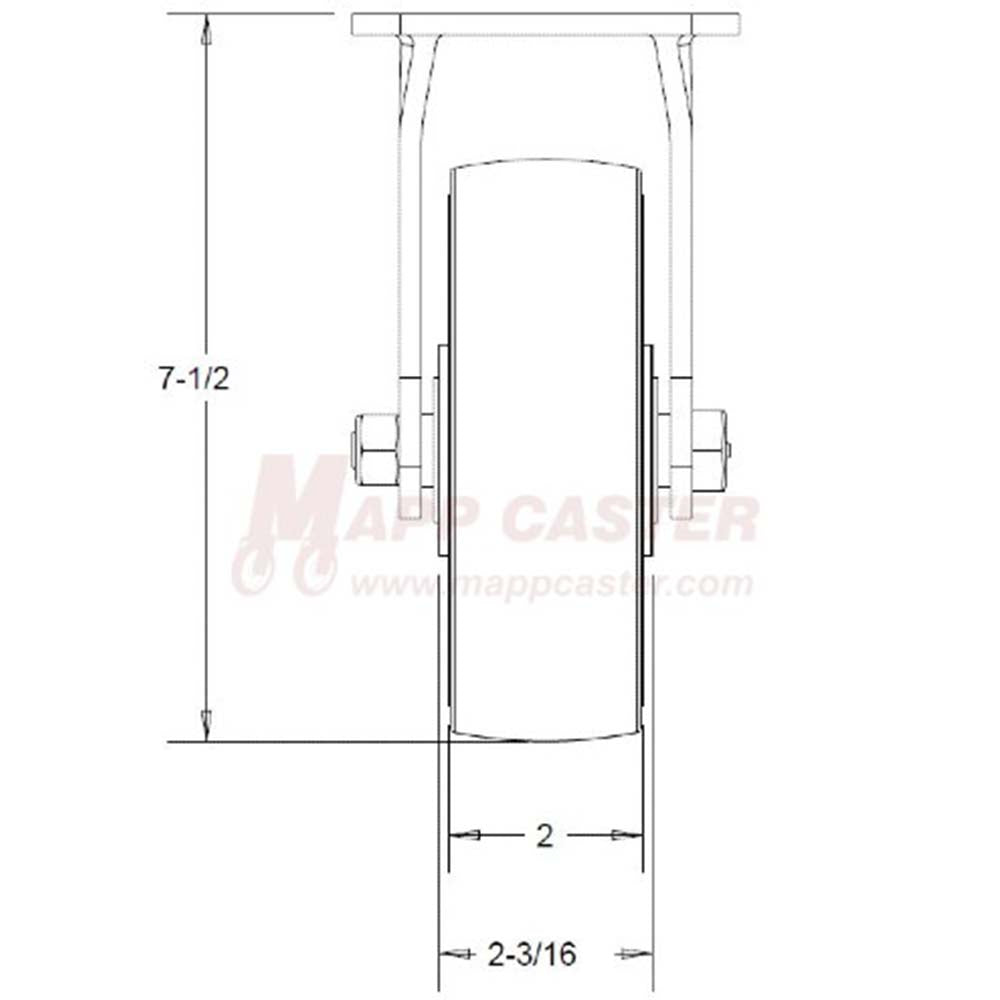

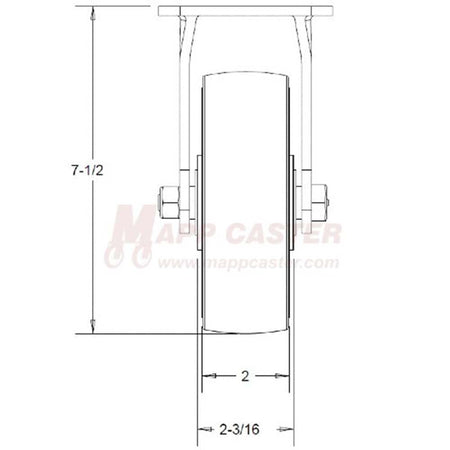

Overall Height: 7-1/2" Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"

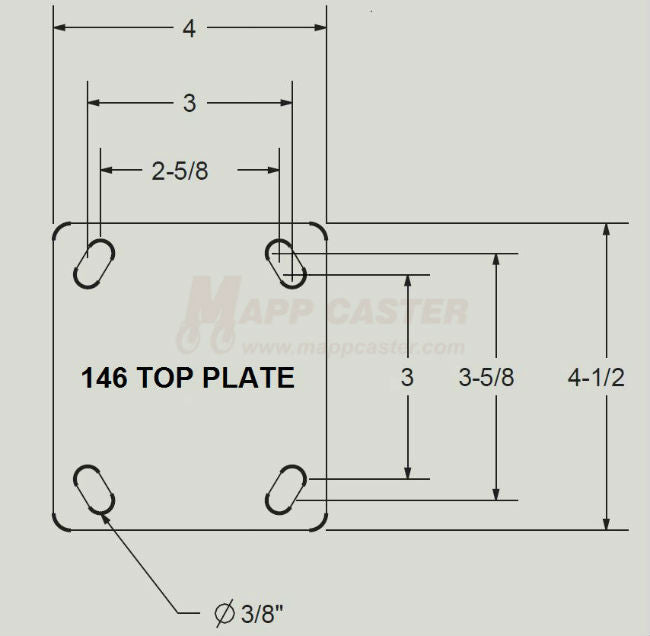

V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: PAH110 Weight:  13.84 Lbs
