6" x 3" Cast Iron Wheel - 2500 lbs Capacity

SKU

QSTL6RO
$67.87

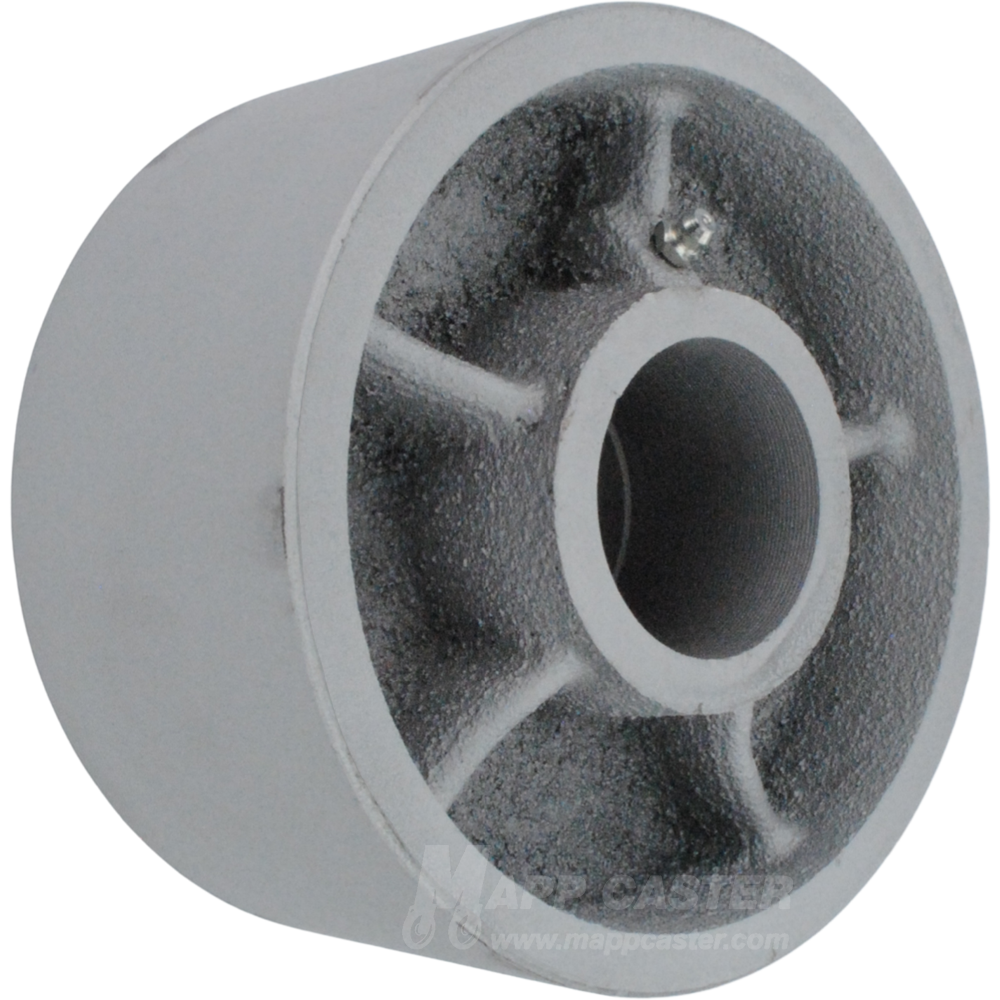

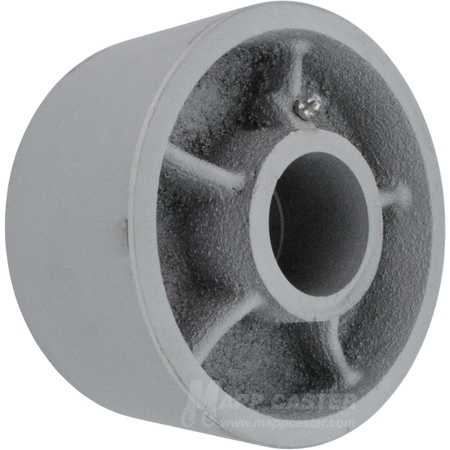

6" x 3" Cast Iron Wheel - Part # QSTL6RO

Cast Iron wheels are one of the most popular metal wheels. Not only is it economically priced, but its hard tread rolls easily and is extremely durable. If you have an application that requires more capacity, or are looking for an upgrade to cast iron, check out our ductile steel & forged steel wheel options. While metal wheels are very strong, they are tough on floors and could lead to floor damage. For heavy duty floor protective wheels, check out our polyurethane on iron wheels.

Because we have a wide range of bearing sizes and types available, we only have our most popular bearings listed in the options. If you don't see the bearings or hub length you are looking for, please contact us for help.

*Please note temperature ratings are dependent upon the bearing selected.

Specifications:

Load Capacity (lbs.): 2,500 Hub Length (Plain Bore): 3-1/4"
Wheel Diameter: 6"

Hub Length (with Bearings): 3-3/8"

  • 3-1/4" for bearing options that say "short"
  • All other lengths will be listed in the bearing options.
Tread Width: 3" Wheel Color: Silver
Bearing Type: See Bearing Options Wheel Durometer: Brinell 145
Plain Bore ID: 1-15/16" Low Temp Range: - 40˚F
Bearing ID: See Bearing Options High Temp Range: 600˚F - Dependent on Bearings Selected
Wheel Type: Cast Iron Weight: 8.50 Lbs
