5" x 2" Forged Steel Wheel Kingpinless Swivel Caster - 2,000 Lbs Capacity

5" x 2" Forged Steel Wheel Kingpinless Swivel Caster - Part # P51052MSRB

Forged steel wheel casters represent the premium tier of all steel caster wheels. Made from a one-piece ASTM 1045 high carbon steel that is hot drop forged, these wheels deliver the highest weight capacities, impact strength & overall durability available in a caster wheel. This caster is capable of incredibly high temperatures that no other wheel is capable of. Their hard rolling surface performs best on smooth floors where maximum strength & minimal rolling resistance are required.

While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For more economical solutions check out our other steel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

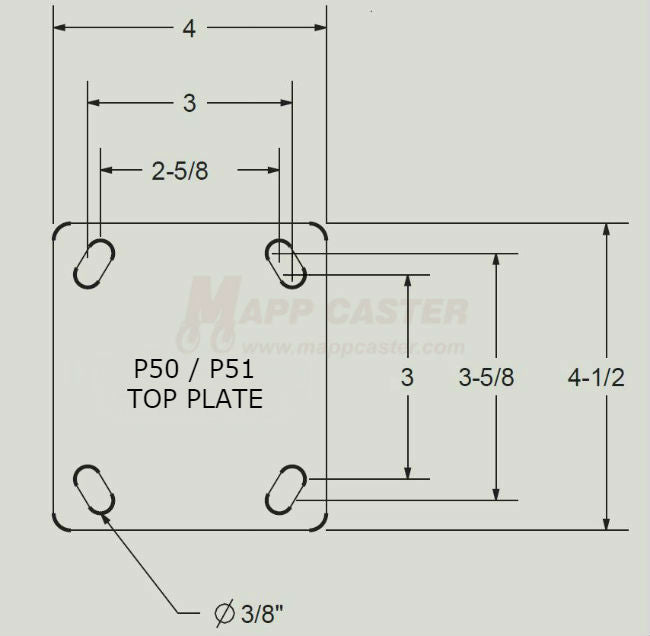

Capacity: 2,000 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:6-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Forged Steel	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 80B	Swivel Radius: 4"
Wheel Color: Silver	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 1,300˚F	Weight: 13.572 Lbs
Link to Replacement Wheel: LFS50JS84	Link to Matching Rigid Caster: P50052MSRB

Capacity: 2,000 lbs.

Wheel Diameter:5"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Forged Steel

Wheel Durometer:Rockwell 80B

Overall Height:6-1/2"

Swivel Radius:4"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Silver

Temp Range:-45˚F to 1,300˚F

Weight:13.572 Lbs

Link to Replacement Wheel:LFS50JS84

Link to Matching Rigid Caster:P50052MSRB
