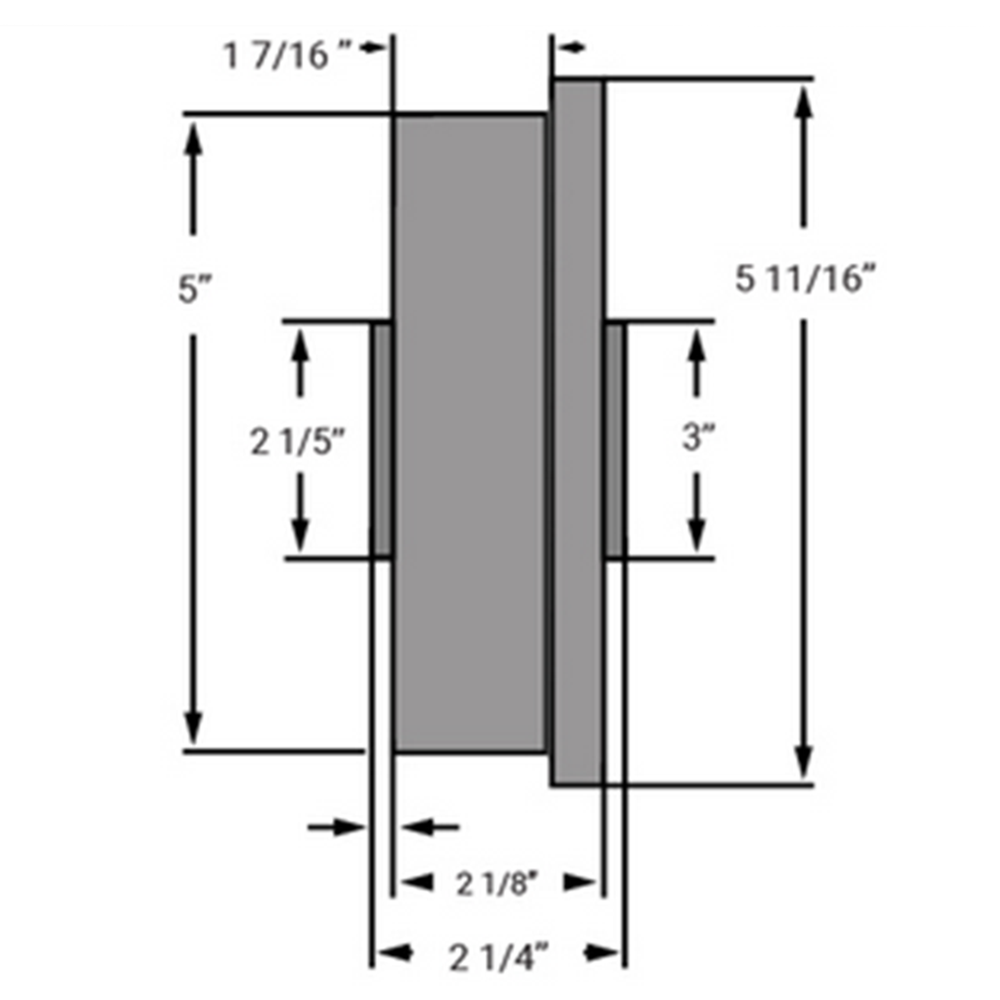

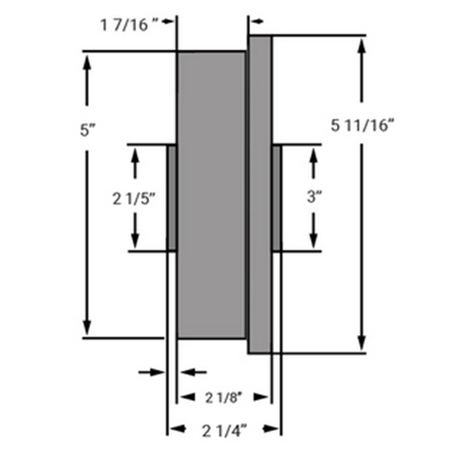

5" x 2" Flanged Cast Iron Wheel Rigid Caster - 1250 Lbs Capacity WHEEL DIAGRAM
5" x 2" Flanged Cast Iron Wheel Kingpinless Rigid Caster - 1,500 Lbs Capacity Heavy Duty
5" x 2" Flanged Cast Iron Wheel Rigid Caster - 1250 Lbs Capacity WHEEL DIAGRAM

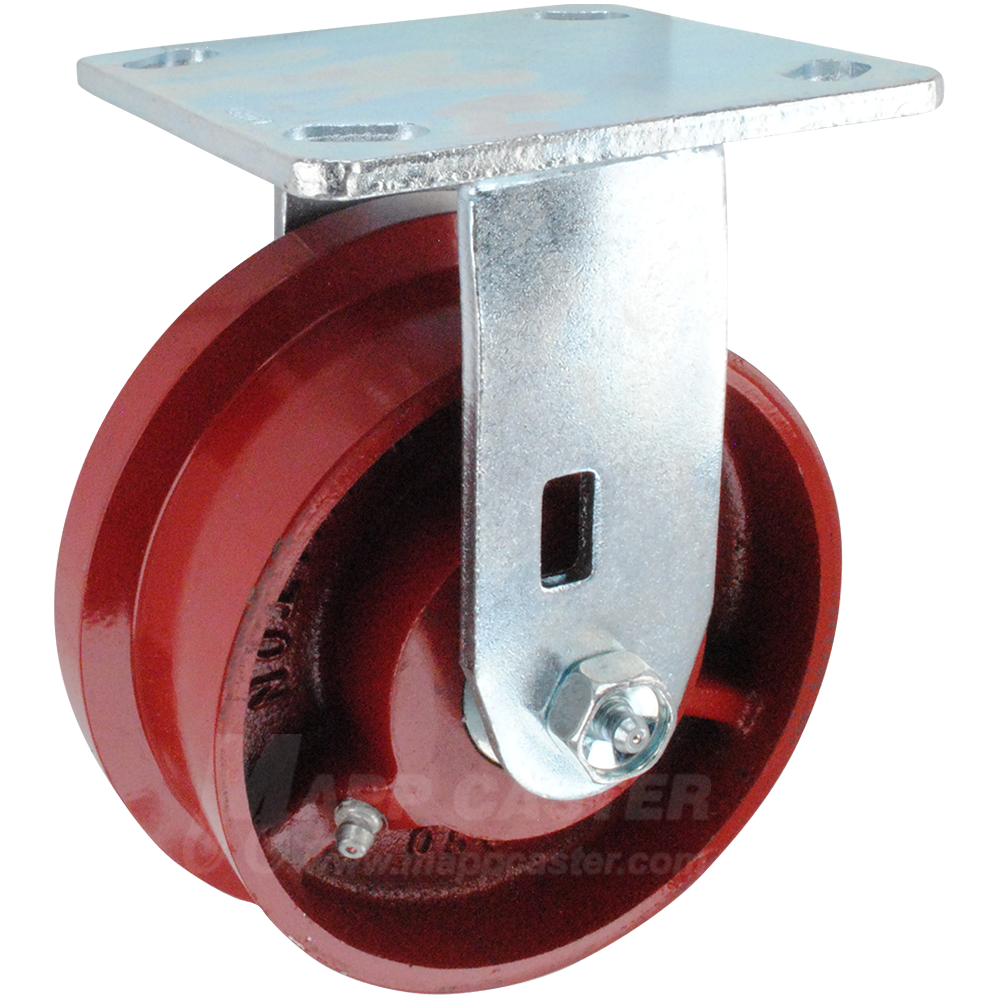

5" x 2" Flanged Cast Iron Wheel Kingpinless Rigid Caster

SKU

P50052CIFL
$141.62

5" x 2" Flanged Cast Iron Wheel Kingpinless Rigid Caster - Part # P50052CIFL

Cast Iron Flanged wheels are designed to roll on rails and come with extra thick treads, hubs & walls. Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

Recommended Rail Type: ASCE 16

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1,500 Link to Matching Swivel Caster: Contact Us
Wheel Diameter: 5" Smaller Diameter, 5-11/16" Larger Flange Diameter
 Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2-1/8" Wide Overall (1-7/16" Roll-able Tread, 11/16" Wide Flange)
 Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Cast Iron Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Roller Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction: N/A

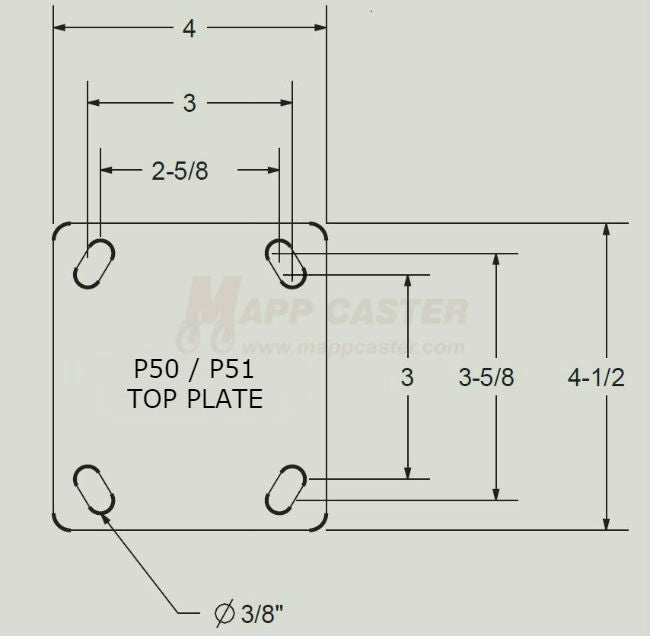

Temp Range: -45°F to 600°F Mounting Plate: 4" x 4-1/2"
Wheel Hardness: Brinell 188 Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Red
 Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: KWFT-51H-3/4 Weight : 8.962 lbs.
