5" x 2" Ductile Steel Wheel Kingpinless Swivel Caster with Face Contact Brake - 1,500 Lbs Capacity

5" x 2" Ductile Steel Wheel Kingpinless Swivel Caster with Face Contact Brake - Part # P51052DUCTFCB

Manufactured from a high strength steel alloy, ductile steel offers improved capacity, durability & impact resistance compared to standard cast iron wheels. Ductile steel provides approximately 45,000 PSI tensile strength & features a thicker tread, spokes & hubs to withstand abusive industrial applications. Its moderately crowned tread design further reduces friction during rolling, swiveling & directional changes for improved maneuverability.

While ductile steel is very hard, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our forged steel caster.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

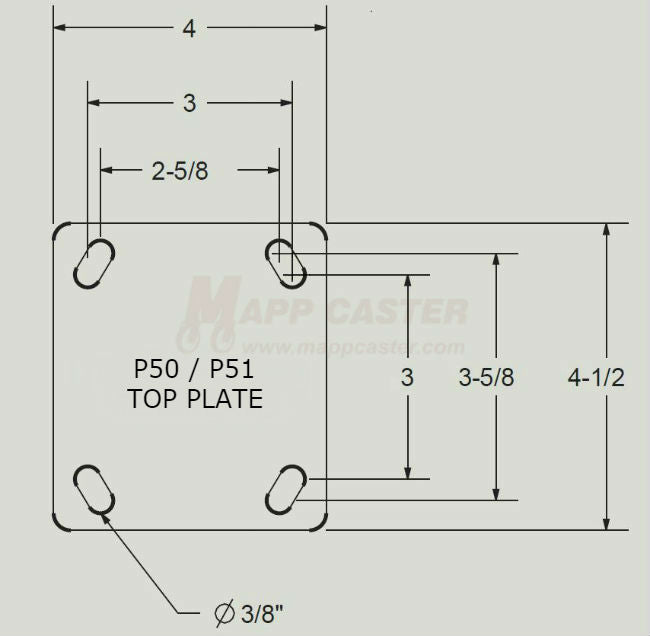

Capacity: 1,500 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned	Overall Height:6-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Ductile Steel	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 75B	Swivel Radius: 6-3/8"
Wheel Color: Red	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 180˚F	Weight: 9.132 Lbs
Link to Replacement Wheel: LDS520	Link to Matching Rigid Brake Caster: P50052DUCTTLB

Capacity: 1,500 lbs.

Wheel Diameter:5"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Slightly Crowned

Bearing Type: See Bearings Options

Wheel Type: Ductile Steel

Wheel Durometer:Rockwell 75B

Overall Height:6-1/2"

Swivel Radius:6-3/8"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Red

Temp Range:-45˚F to 180˚F

Weight:9.132 Lbs

Link to Replacement Wheel:LDS520

Link to Matching Rigid Brake Caster:P50052DUCTTLB
