5" x 2" Ductile Steel Rigid Caster
SKU
25ERDUCTCouldn't load pickup availability
Ductile steel is a combination of select alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel. It can be known as malleable iron, meaning it will flex rather than cracking or breaking when submitted to an extreme shock load. It is also an abrasion resistant wheel.
Common Applications: Platform Trucks, Material Handling Carts, A-Frame Carts, Freight Terminal Dollies, Ground Support Equipment, Gantries and Hoppers, Trash Containers.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 1,500 | Matching Swivel Caster: 25ES12 |
| Wheel Diameter: 5" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Yellow Zinc Plated |
| Wheel Type: Ductile Steel | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 6-1/2" | Swivel Construction: N/A |
|
Temp Range: -40 to 180˚F Call for High Temp Bearings |

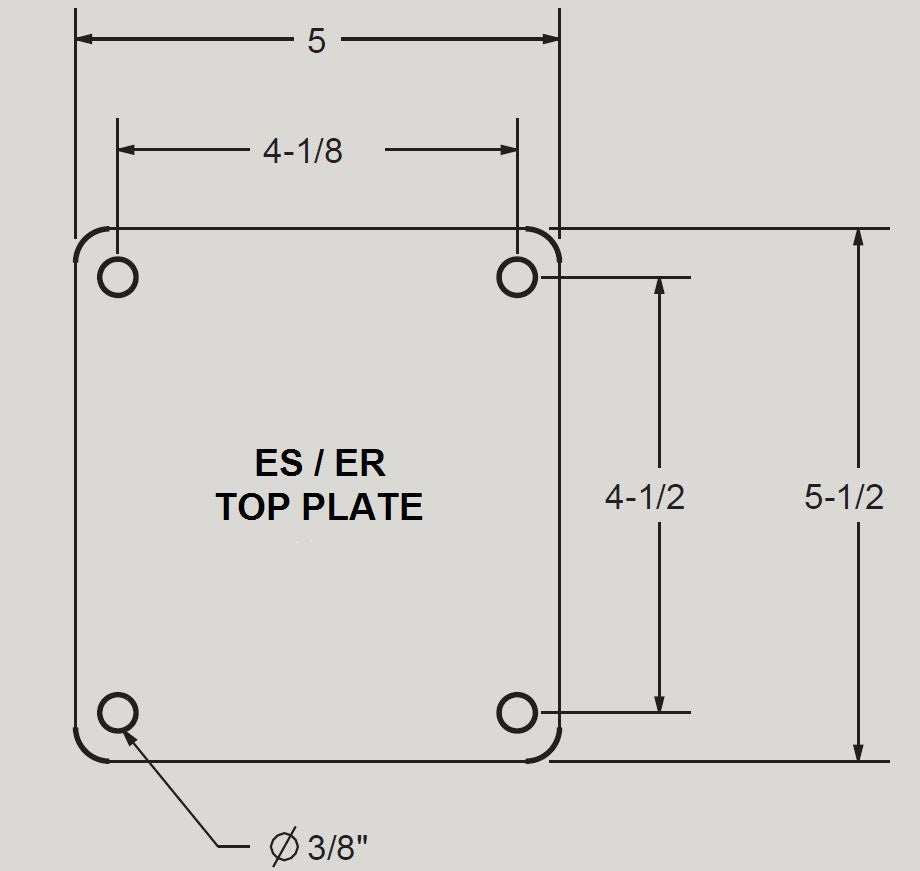

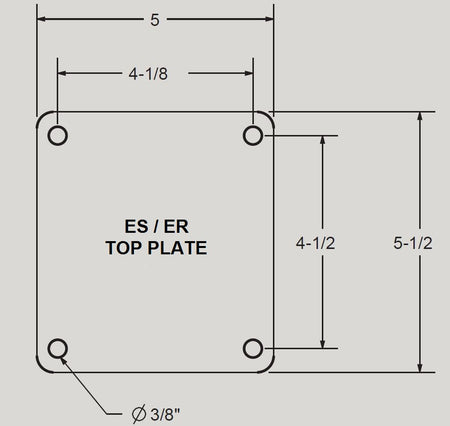

Mounting Plate: 5" x 5-1/2" |
| Wheel Hardness: Rockwell 74B | Bolt Hole Pattern: 4-1/8" x 4-1/2" |
| Wheel Color: Red | Mounting Bolt Size: 3/8" or Smaller |
| Replacement Wheel: LDS520 | Weight: 5.5 lbs. |
Call with Questions 1-800-345-0425 or 713-227-1144 (Mon.-Fri. 7am-430pm CST)
