5" x 2" Cast Iron Wheel Swivel Caster with Face Contact Brake - 1,200 Lbs Capacity

SKU

146CIRB520SFCB
$51.75

5" x 2" Cast Iron Wheel Swivel Caster with Face Contact Brake - Part # 146CIRB520SFCB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

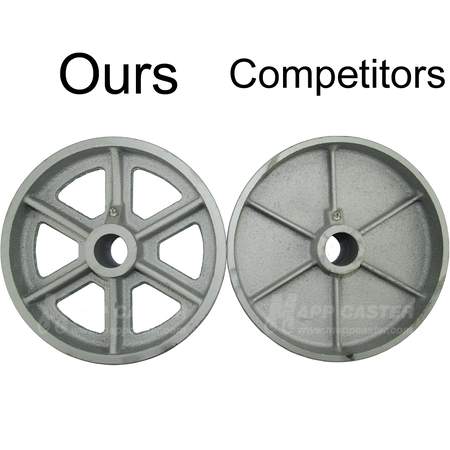

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Capacity: 1,200 Lbs.

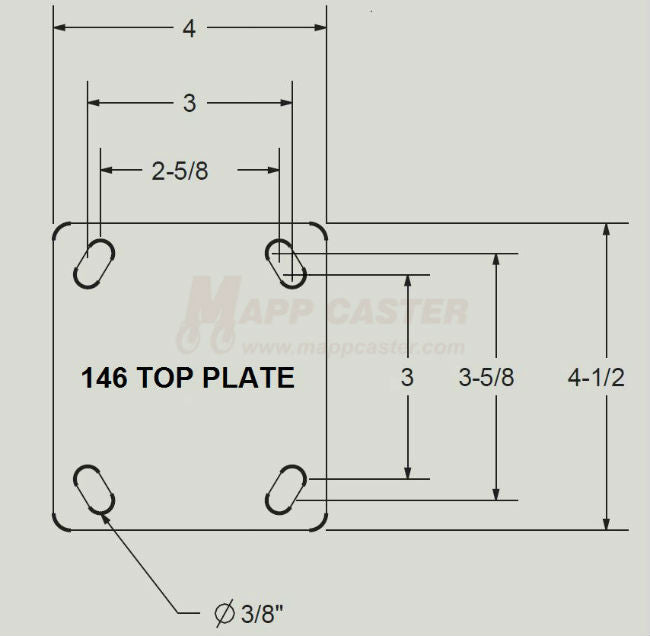

Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"
Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:6-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 6-3/4"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 180˚F
Weight: 7.844 Lbs
Link to Replacement Wheel: QSTL5MO
Link to Matching Rigid Brake Caster: 146CIRB520RB
