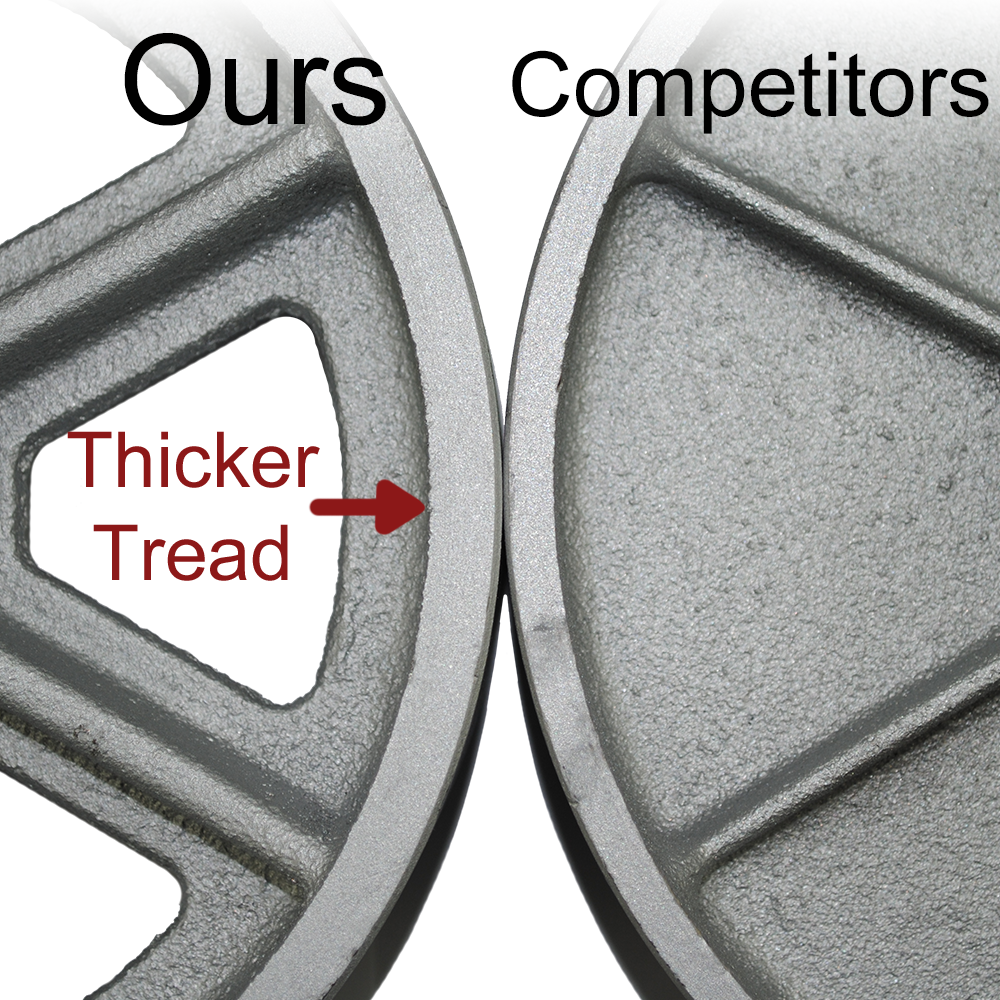

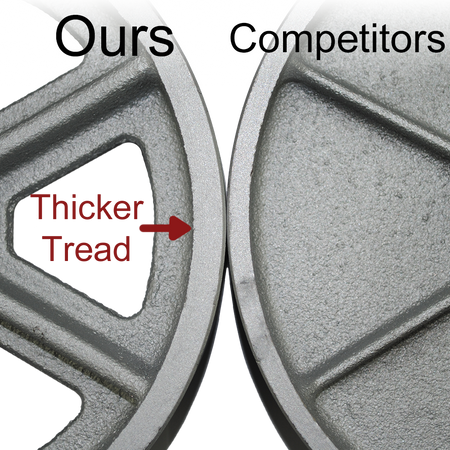

5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R THICKER TREAD
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R THICKER SPOKES

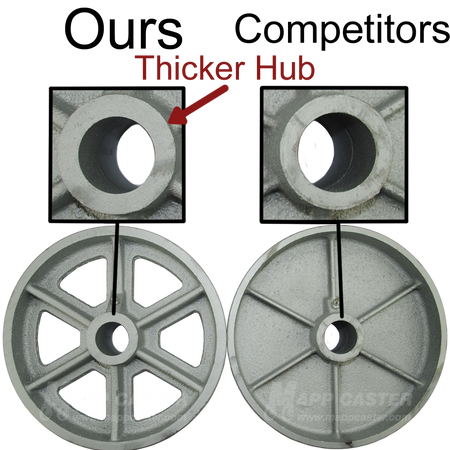

5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R THICKER HUBS

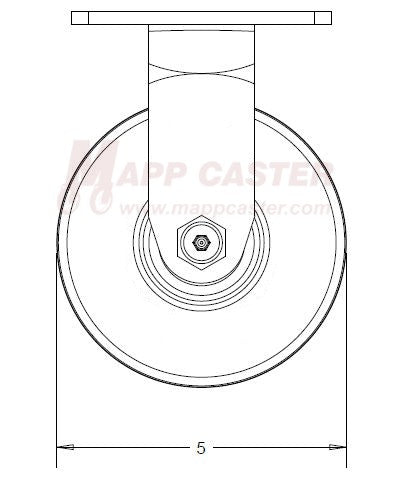

5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146cirb520R SIDE VIEW

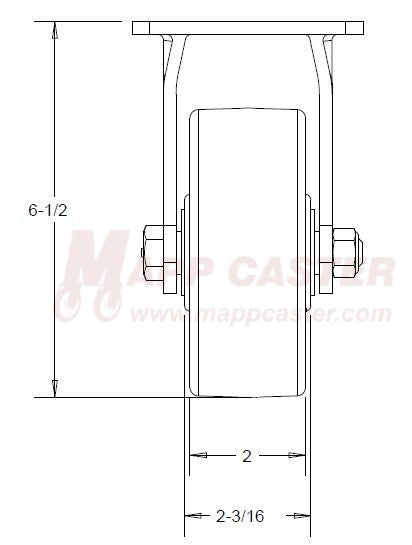

5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146cirb520R FRONT VIEW
5" x 2" Cast Iron Wheel Kingpinless Rigid Caster - 1,200 Lbs Capacity Heavy Duty
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R COMPETITORS
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R THICKER TREAD
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R THICKER SPOKES
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146CIRB520R THICKER HUBS
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146cirb520R SIDE VIEW
5" x 2" Cast Iron Wheel Rigid Caster - 1,200 Lbs Capacity 146cirb520R FRONT VIEW

5" x 2" Cast Iron Wheel Kingpinless Rigid Caster - 1,200 Lbs Capacity

SKU

P50052CIRB
$35.46

5" x 2" Cast Iron Kingpinless Rigid Caster - Part # P50052CIRB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1,200 Lbs.
Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"

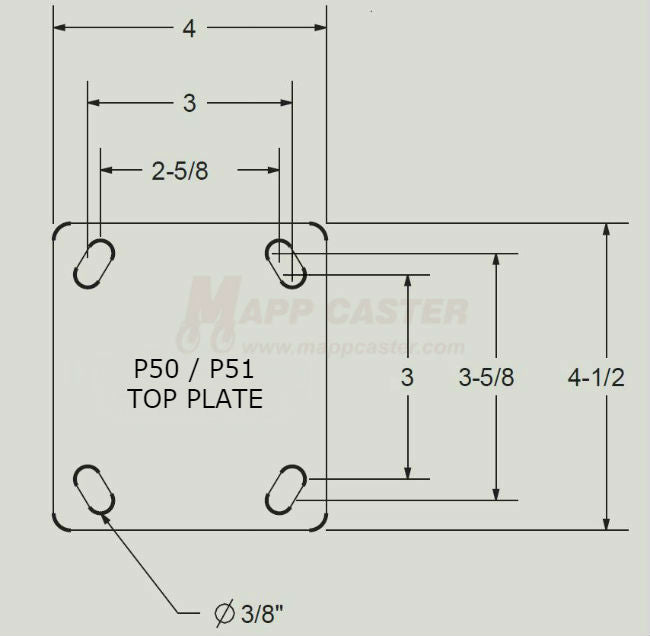

Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:6-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Temp Range: -45˚F to 600˚F
Wheel Color: Silver
Weight: 6.414 Lbs
Link to Replacement Wheel: QSTL5MO
Link to Matching Swivel Caster: P51052CIRB
Capacity icon Capacity: 1,200 lbs.
Wheel Type iconWheel Diameter:5"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Flat
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Cast Iron
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:6-1/2"
Temp Range icon Caster Rig Material Type: Cold Rolled Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45˚F to 600˚F
Weight icon Weight:6.414 Lbs
Wheel Color iconLink to Replacement Wheel:QSTL5MO
Weight icon Link to Matching Swivel Caster:P51052CIRB
