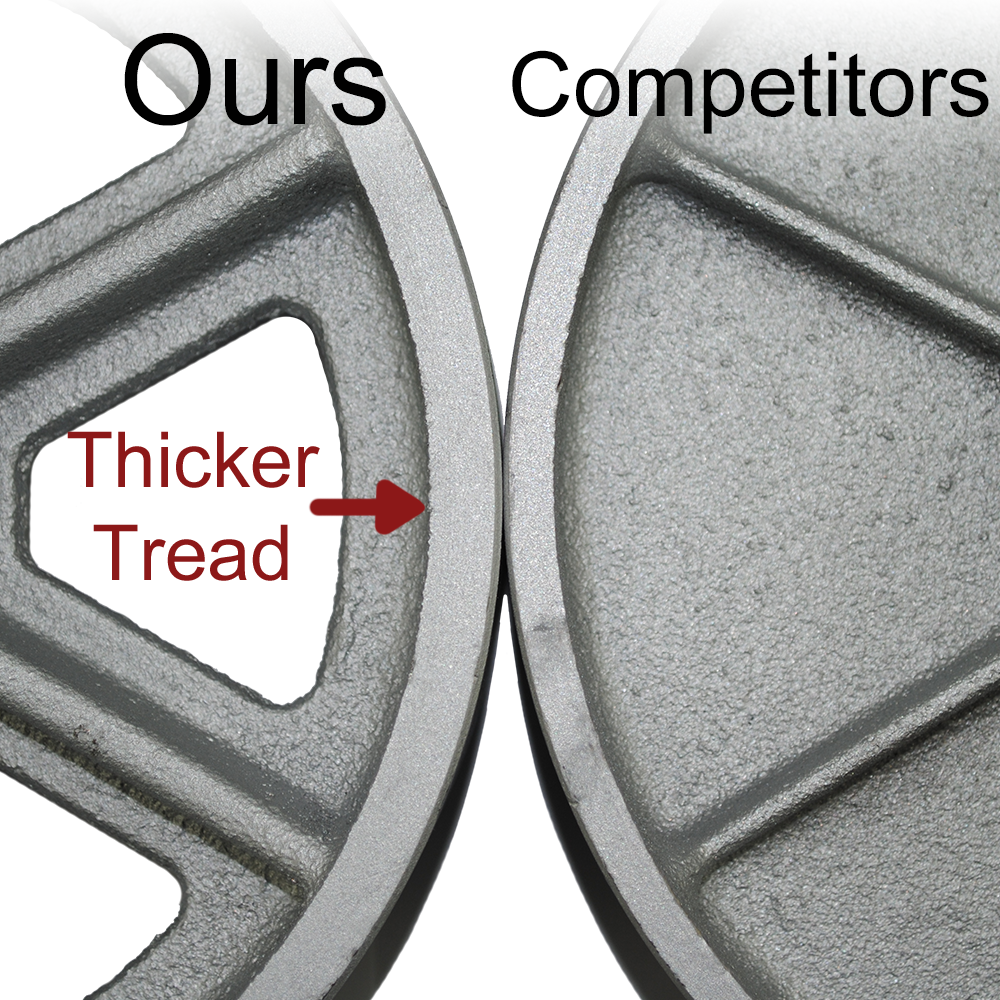

5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB thicker tread
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB thicker spokes
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB thicker hubs

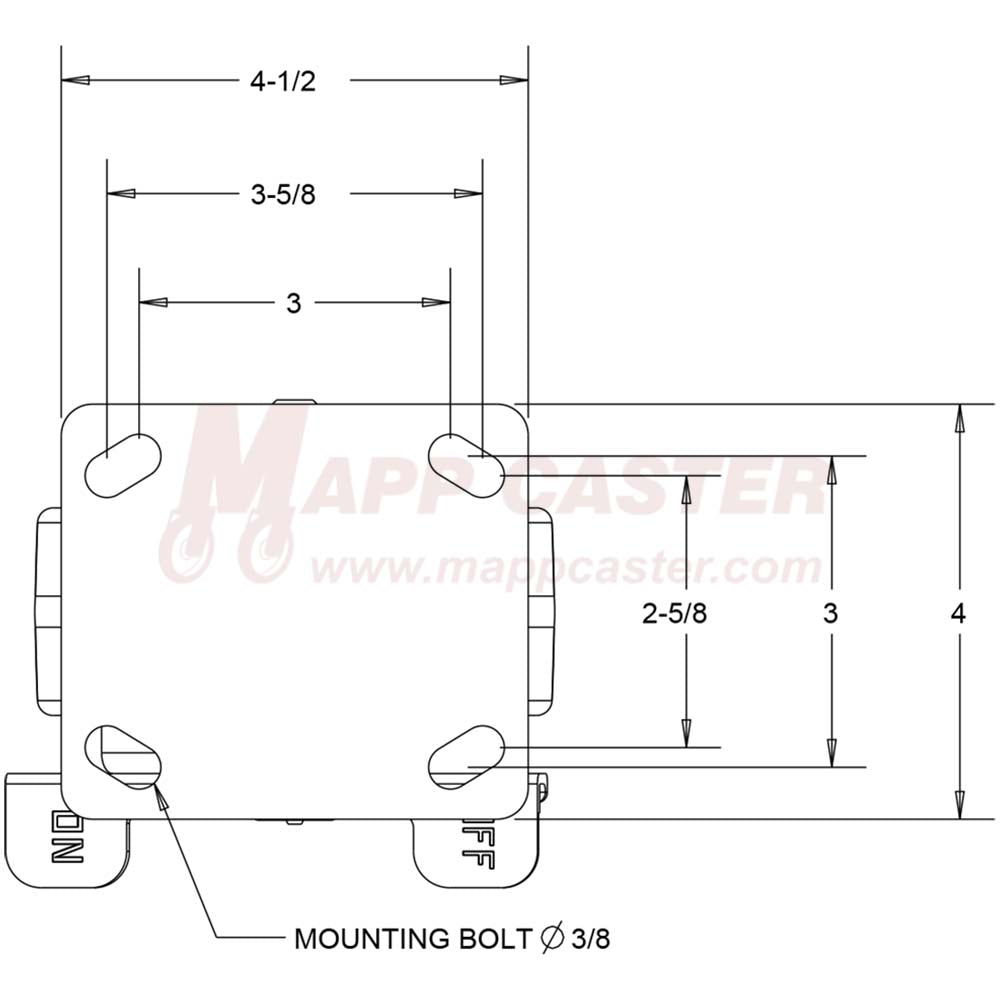

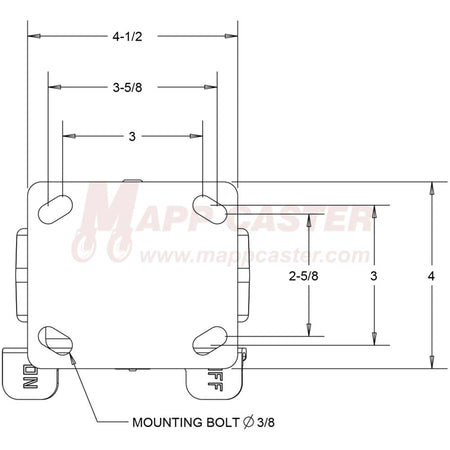

5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB TOP VIEW
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB SIDE VIEW

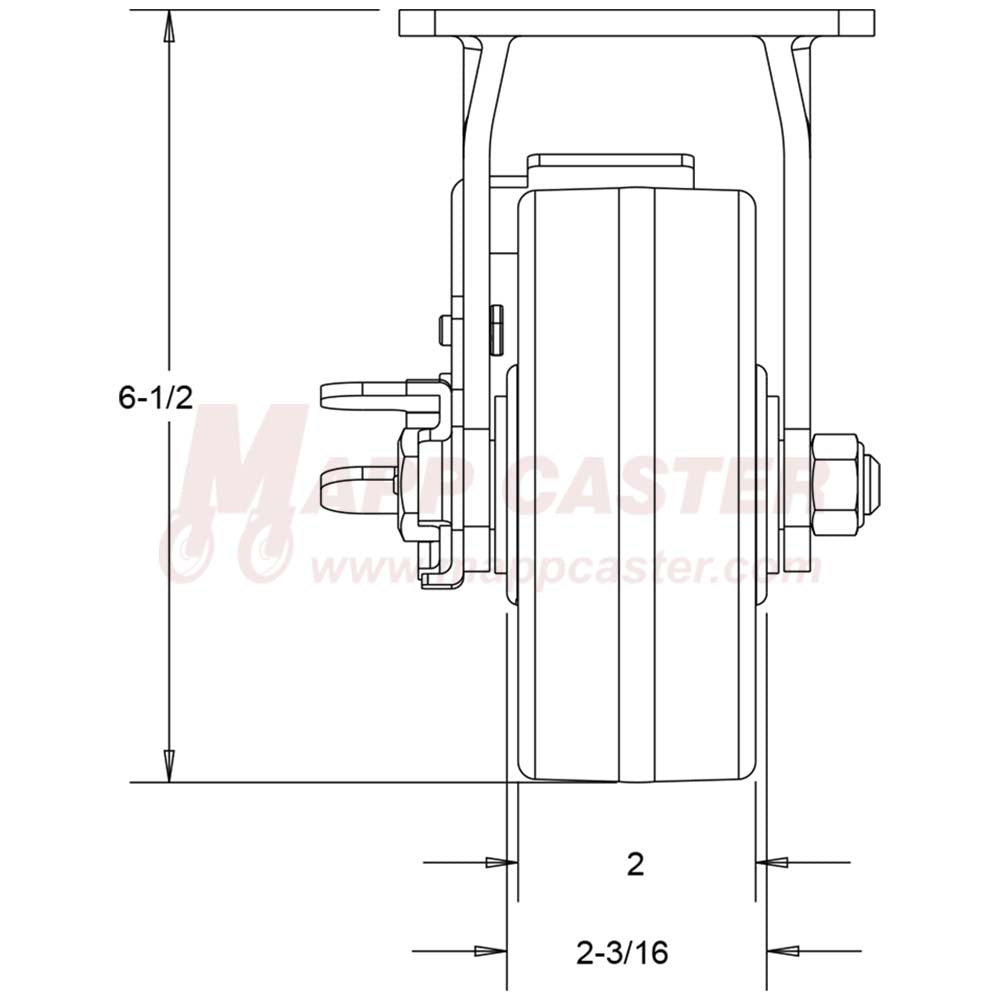

5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB REAR VIEW
5" x 2" Cast Iron Wheel Kingpinless Rigid Brake Caster - 1,200 Lbs Capacity Part # P50052CIRBTLB
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB COMPARISON
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB thicker tread
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB thicker spokes
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB thicker hubs
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB TOP VIEW
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB SIDE VIEW
5" x 2" Cast Iron Wheel Rigid Brake Caster - 1,200 Lbs Capacity 146CIRB520RB REAR VIEW

5" x 2" Cast Iron Wheel Kingpinless Rigid Brake Caster - 1,200 Lbs Capacity

SKU

P50052CIRBTLB
$31.53

5" x 2" Cast Iron Wheel Kingpinless Rigid Brake Caster - Part # P50052CIRBTLB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

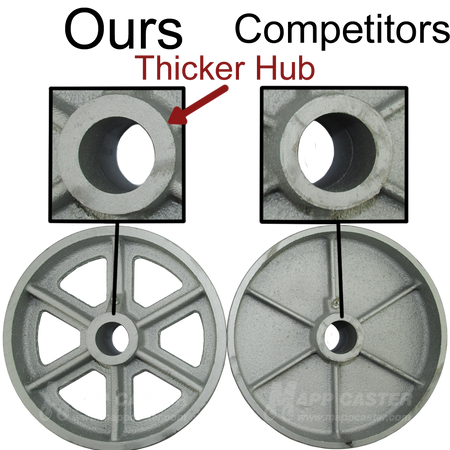

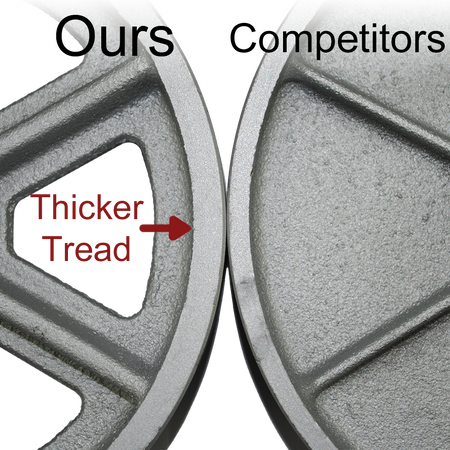

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1,200 Lbs.
Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"

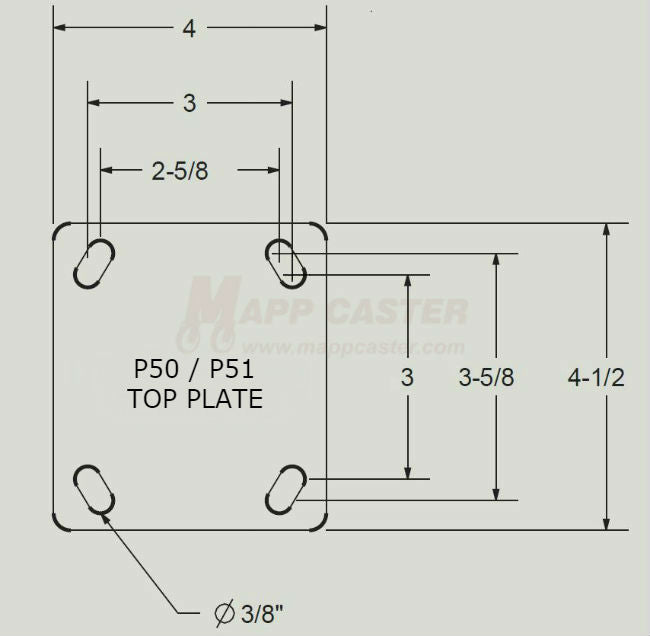

Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:6-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Temp Range: -45˚F to 600˚F
Wheel Color: Silver
Weight: 6.862 Lbs
Link to Replacement Wheel: QSTL5MO
Link to Matching Swivel Brake Caster: P51052CIRBTLB

Link to Matching Swivel Caster w/ Face Contact Brake: P51052CIRBFCB
