5" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - 1,200 Lbs Capacity

5" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - Part # P51052CIRBFCB

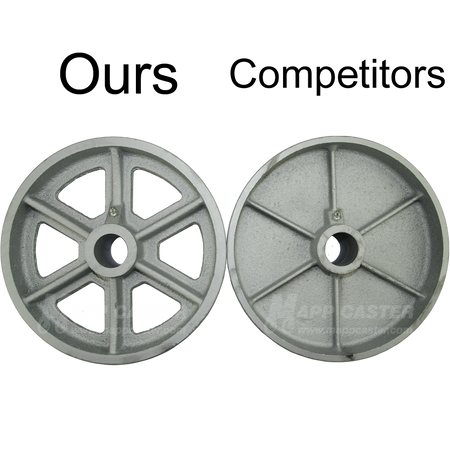

Cast iron is the industry standard metal caster wheel used across a wide range of heavy duty applications. This wheel differs from traditional cast iron designs because it is classified as semi-steel. With reduced carbon content & additional steel blended into the casting, it delivers improved capacities, strength, durability & impact resistance compared to standard cast iron wheels. In addition to its stronger material composition, this wheel also features heavier duty spokes for added reinforcement & durability.

While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our other steel casters caster options.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Capacity: 1,200 Lbs.	Mounting Plate: 4" x 4-1/2"

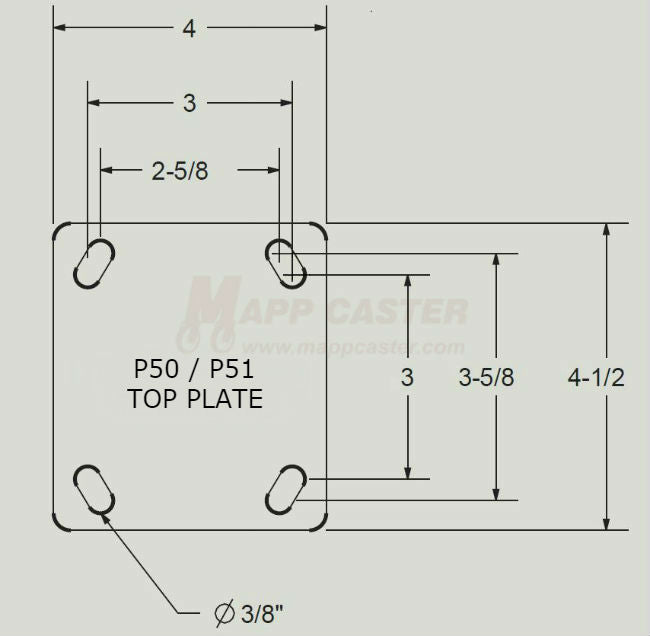

Wheel Diameter:5"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:6-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Cast Iron	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 6-3/8"
Wheel Color: Silver	Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45˚F to 180˚F	Weight: 9.176 Lbs
Link to Replacement Wheel: QSTL5MO	Link to Matching Rigid Brake Caster: P50052CIRBTLB

Capacity: 1,200 lbs.

Wheel Diameter:5"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Cast Iron

Wheel Durometer:Brinell 145

Overall Height:6-1/2"

Swivel Radius:6-3/8"

Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway

Caster Rig Material Type: AISI 1045 Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Silver

Temp Range:-45˚F to 180˚F

Weight:9.176 Lbs

Link to Replacement Wheel:QSTL5MO

Link to Matching Rigid Brake Caster:P50052CIRBTLB
