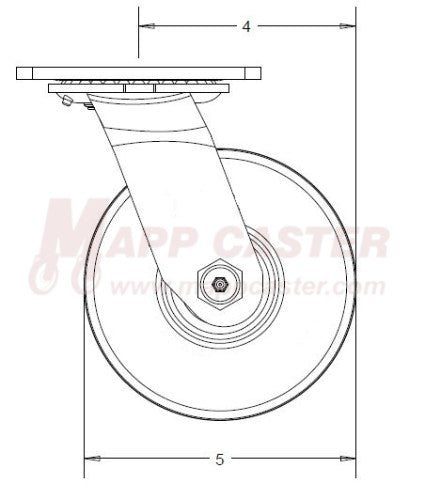

5" x 2" Cast Iron Wheel Wheel Swivel Caster Diagram engineering drawings

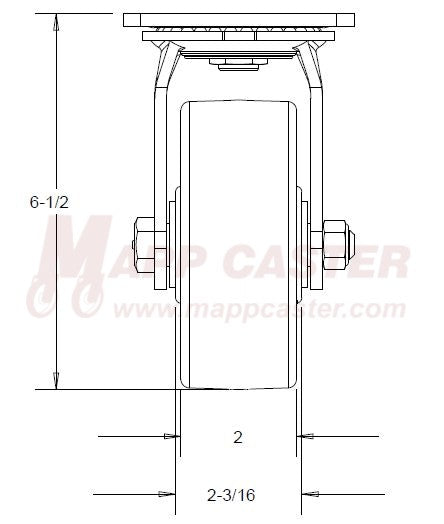

5" x 2" Cast Iron Wheel Wheel Swivel Caster front view diagram engineering Drawings
5" x 2" Cast Iron Wheel Kingpinless Swivel Caster - 1,200 Lbs Capacity Heavy Duty
5" x 2" Cast Iron Wheel Wheel Swivel Caster Thicker Wheel
5" x 2" Cast Iron Wheel Wheel Swivel Caster thicker tread comparision
5" x 2" Cast Iron Wheel Wheel Swivel Caster bottom view tread comparision
5" x 2" Cast Iron Wheel Wheel Swivel Caster thicker hub comparison
5" x 2" Cast Iron Wheel Wheel Swivel Caster Diagram engineering drawings
5" x 2" Cast Iron Wheel Wheel Swivel Caster front view diagram engineering Drawings

5" x 2" Cast Iron Wheel Kingpinless Swivel Caster - 1,200 Lbs Capacity

SKU

P51052CIRB
$86.20

5" x 2" Cast Iron Wheel Kingpinless Swivel Caster - Part # P51052CIRB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

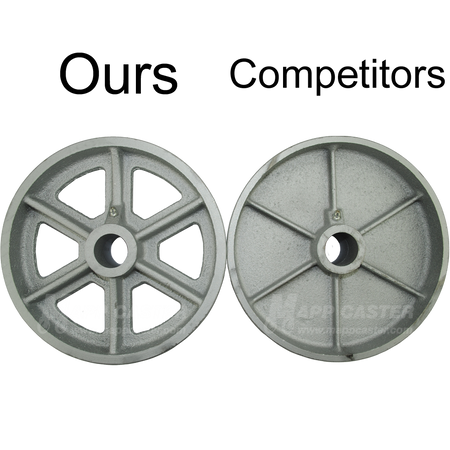

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.

Specifications:

Capacity: 1,200 Lbs.

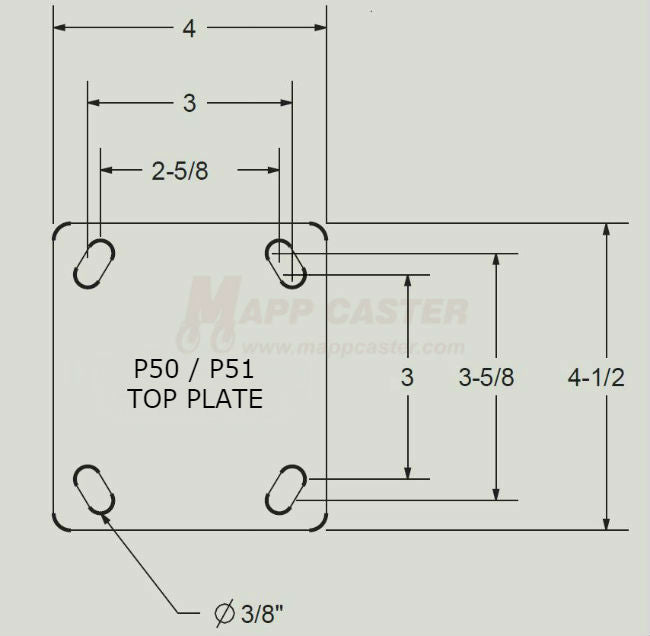

Mounting Plate: 4" x 4-1/2"
Wheel Diameter:5"
Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"

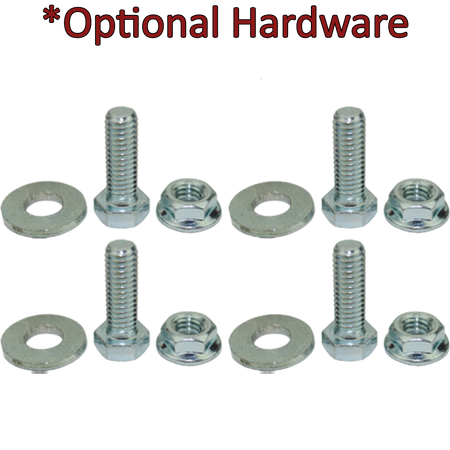

Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:6-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 4"
Wheel Color: Silver
Swivel Construction: Kingpinless - Heat Treated
Precision Machined Raceway
Temp Range: -45˚F to 600˚F
Weight: 8.472 Lbs
Link to Replacement Wheel: QSTL5MO
Link to Matching Rigid Caster: P50052CIRB
Capacity icon Capacity: 1,200 lbs.
Wheel Type iconWheel Diameter:5"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Flat
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Cast Iron
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:6-1/2"
Wheel Tread Shape iconSwivel Radius:4"
Wheel Tread Shape iconSwivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range icon Caster Rig Material Type: AISI 1045 Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45˚F to 600˚F
Weight icon Weight:8.472 Lbs
Wheel Color iconLink to Replacement Wheel:QSTL5MO
Weight icon Link to Matching Rigid Caster:P50052CIRB
