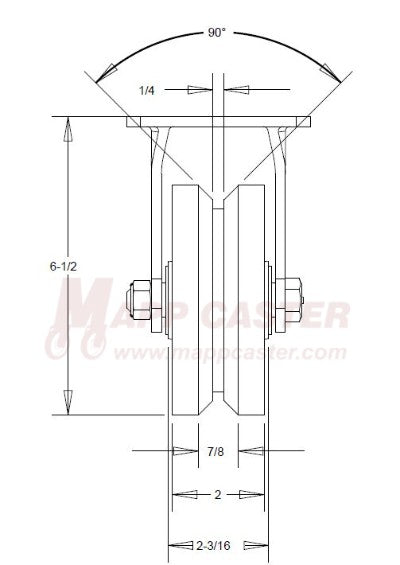

5" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster FRONT front view
5" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Caster - 900 Lbs Capacity Heavy Duty
5" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster - 900 Lbs Capacity TRACK
5" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster FRONT front view

5" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Caster

SKU

P50052VIRB
$26.79

5" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Caster - Part # P50052VIRB

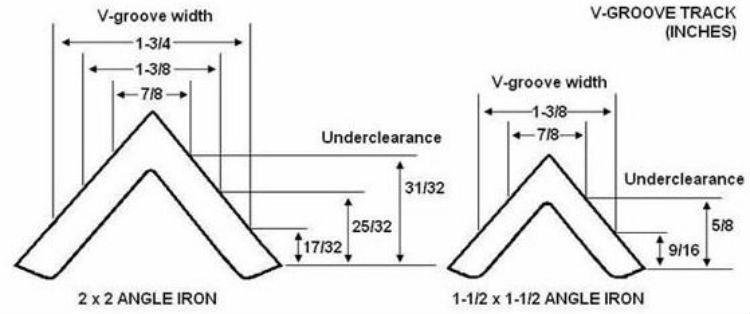

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 900 Link to Matching Swivel Caster: P51052VIRB
Wheel Diameter: 5" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearing Options Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction:  N/A

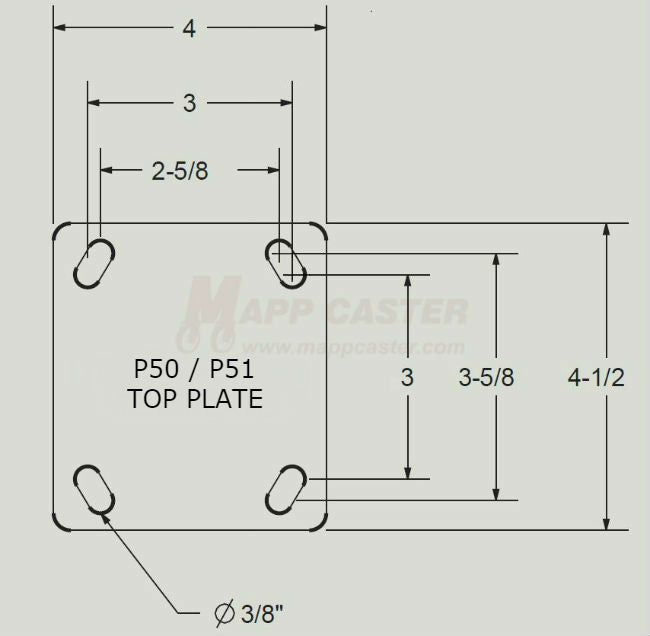

Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG520 Weight: 6.32 Lbs
