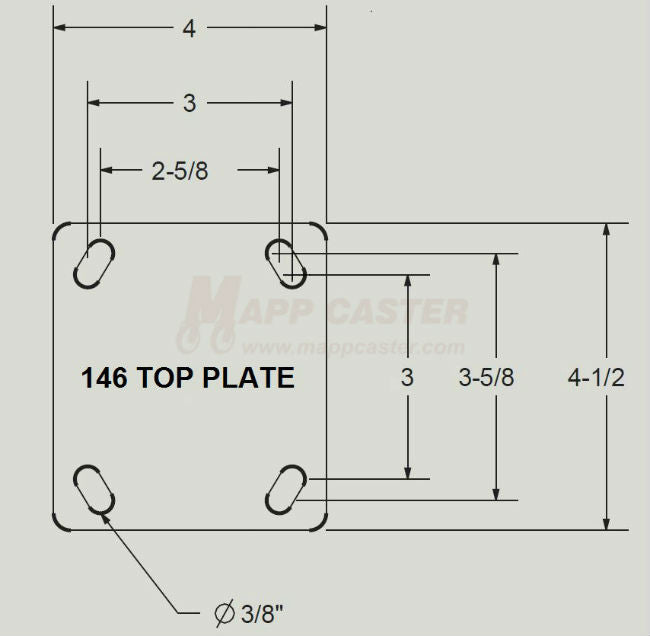

5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity top plate

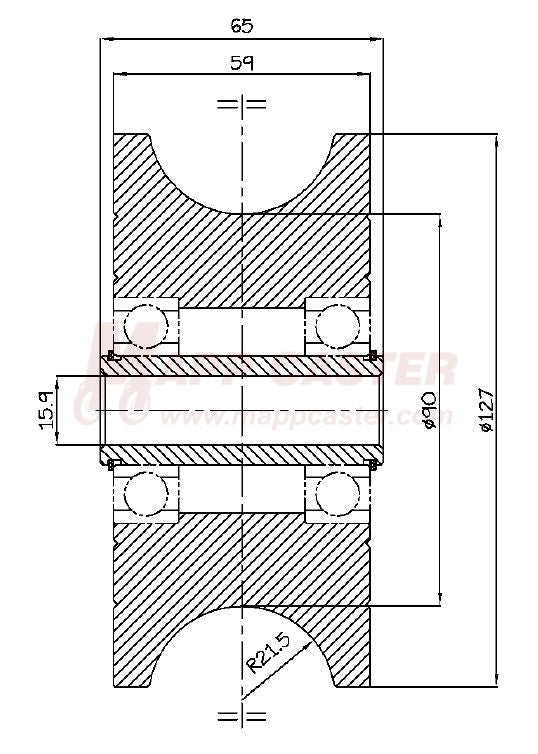

5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity wheel diagram

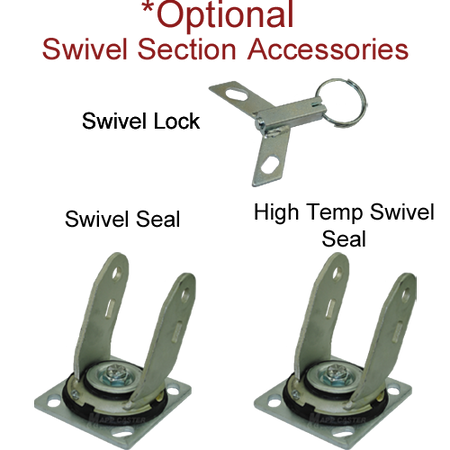

5" x 2" Orange Poly on Aluminum Wheel Swivel Caster - 900 Lbs Capacity optional swivel section accessories 146LUX520S

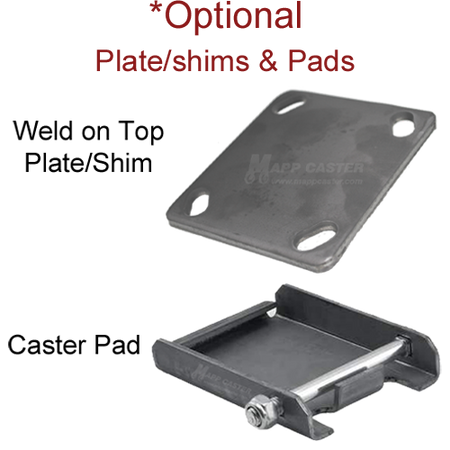

5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity SHIMS PLATES

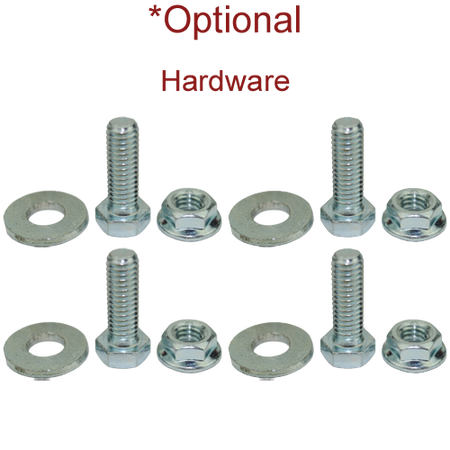

5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity HARDWARE
146PMUG520S 5" x 2-5/16" Forged U-Groove Wheel Swivel Caster - 1250 Lbs Capacity
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity top plate
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity wheel diagram
5" x 2" Orange Poly on Aluminum Wheel Swivel Caster - 900 Lbs Capacity optional swivel section accessories 146LUX520S
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity SHIMS PLATES
5" x 2-5/16" Forged U-Groove Wheel Rigid Caster - 1250 Lbs Capacity HARDWARE

5" x 2-5/16" Forged U-Groove Wheel Swivel Caster

SKU

146PMUG520S
$108.30

5" x 2-5/16" Forged U-Groove Wheel Swivel Caster - Part # 146PMUG520S

Forged steel wheels are the premium of all the steel caster wheels. This forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels.

Specifications:

Load Capacity (lbs.): 1250 Link to Matching Rigid Caster: 146PMUG520R
Wheel Diameter: 5" Wheel Durometer: N/A
Tread Width: 2-5/16" Wheel Color: Silver
Wheel Type: Forged Steel Swivel or Rigid Caster: Swivel
Wheel Bearing Type: Ball Bearing
 		Swivel Radius: 4"
Overall Height: 6-1/2" Swivel Construction:  Double Ball Raceway - 5/8" Kingpin
Temp Range: - 40°F to 180°F  Mounting Plate: 4" x 4-1/2"
U-Groove Width: 1.680" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 5/8" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: PMUG5050SB Weight: 11 Lbs
