5" x 2-5/16" Forged U-Groove Wheel Kingpinless Rigid Caster

SKU

P50052PMUG
$141.62

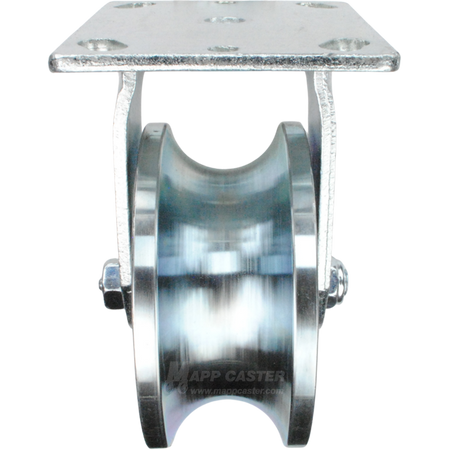

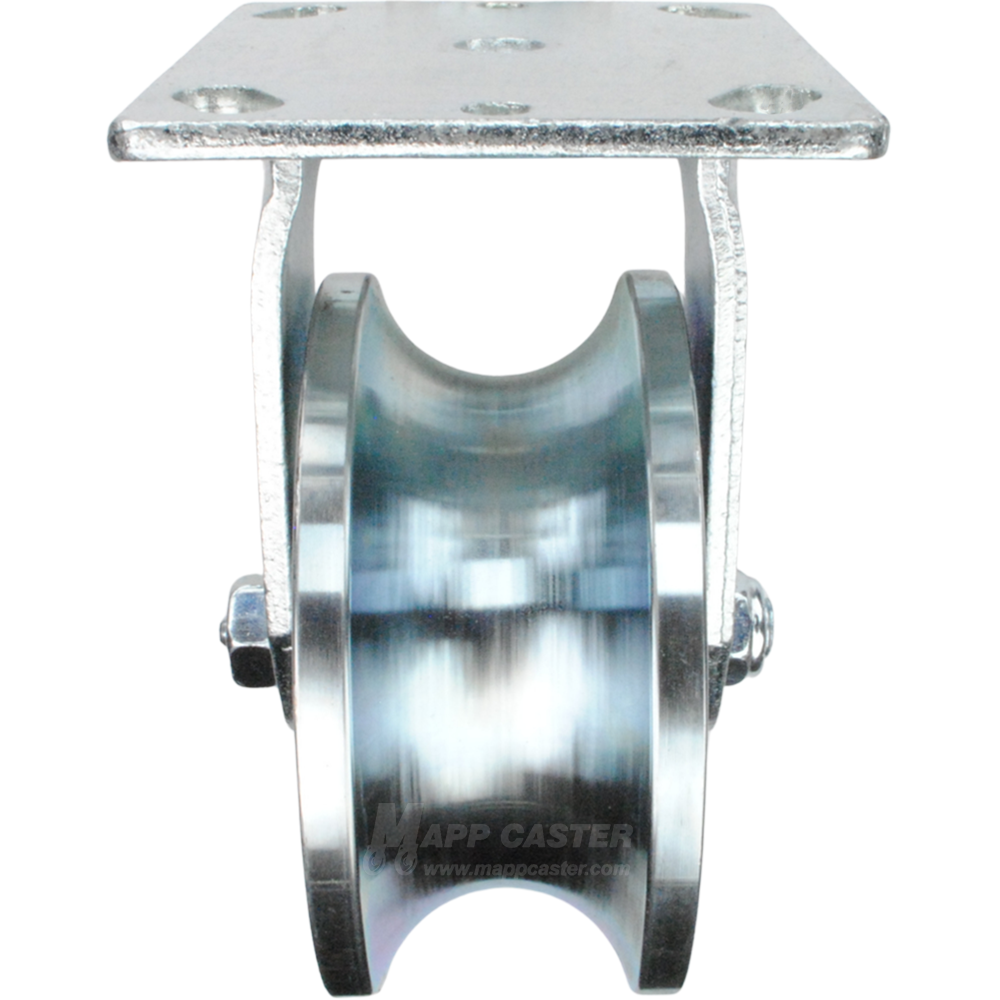

5" x 2-5/16" Forged U-Groove Wheel Kingpinless Rigid Caster - Part # P50052PMUG

U-Groove wheels are designed to guide equipment by rolling on pipe, however can also operate off a track thanks to the tread on either side of the U-groove. Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 2,000 Link to Matching Swivel Caster: Not Available Due to Dimensions of Wheel
Wheel Diameter: 5" Wheel Durometer: Rockwell 75B
Tread Width: 2-5/16" Wheel Color: Silver
Wheel Type: Forged Steel Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Ball Bearing
 		Swivel Radius: N/A
Overall Height: 6-1/2" Swivel Construction:  N/A
Temp Range: -40°F to 180°F  Mounting Plate: 4" x 4-1/2"

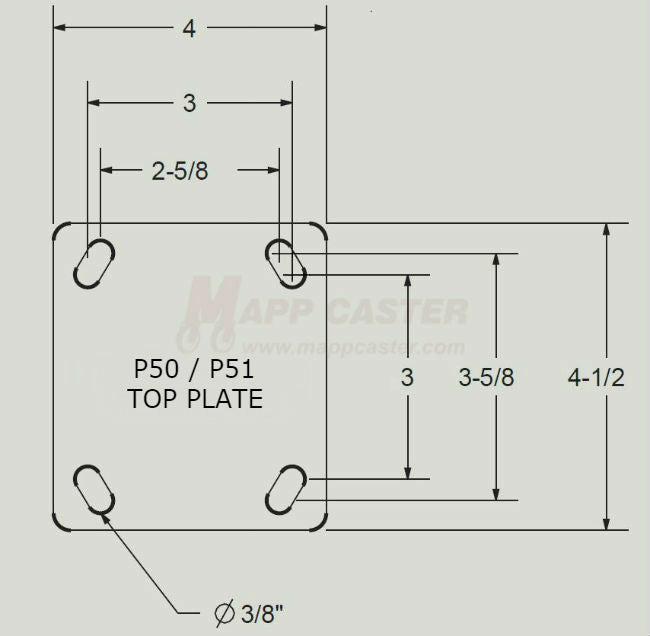

U-Groove Width: 1.680" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 5/8" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: PMUG5050SB Weight: 10.252 Lbs
