4" x 2" Forged Steel Wheel Kingpinless Rigid Brake Caster - 2,000 Lbs Capacity

SKU

P50042MSRBTLB
$98.82

4" x 2" Forged Steel Wheel Kingpinless Rigid Brake Caster - Part #: P50042MSRBTLB

Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane on iron wheels. For a metal wheel with similar capacities and durability, but is more economical, check out our ductile steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 2000 lbs. Link to Matching Swivel Caster: P51042MSRBTLB
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Forged Steel Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearing Options Swivel Radius: N/A
Overall Height: 5-5/8" Swivel Construction: N/A

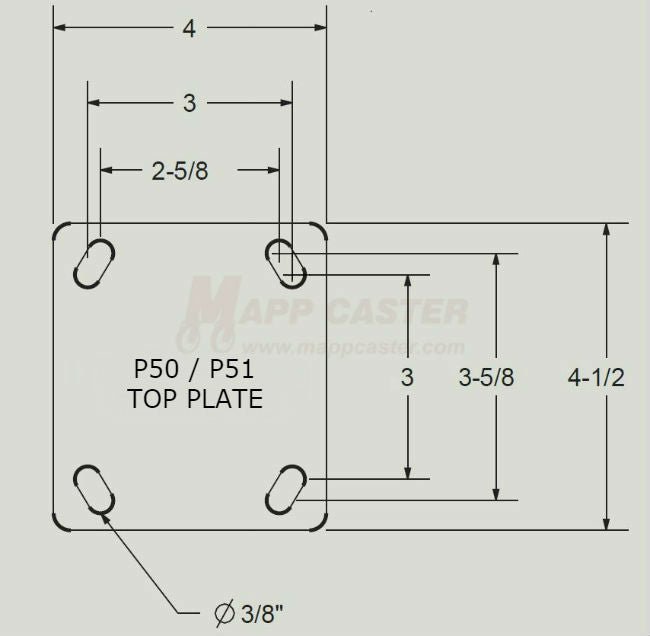

Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Rockwell 80B Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Silver Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel:  LMS40JS84 Weight:  9.411 lbs.
