4" x 2" Forged Steel V-Groove Wheel Swivel Caster with Total Locking Brake
SKU
146FVG420SBTLCouldn't load pickup availability
4" x 2" Forged Steel V-Groove Wheel Swivel Caster with Total Locking Brake - Part #: 146FVG420SBTL

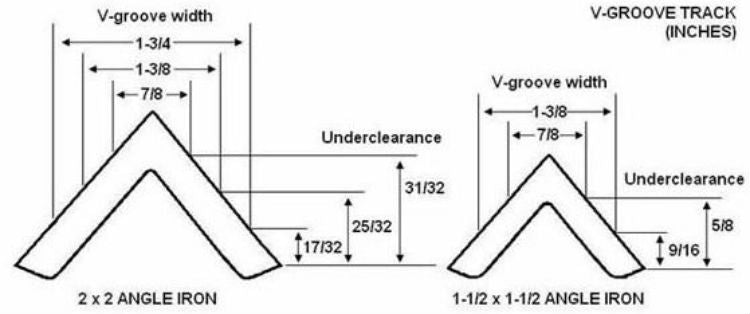

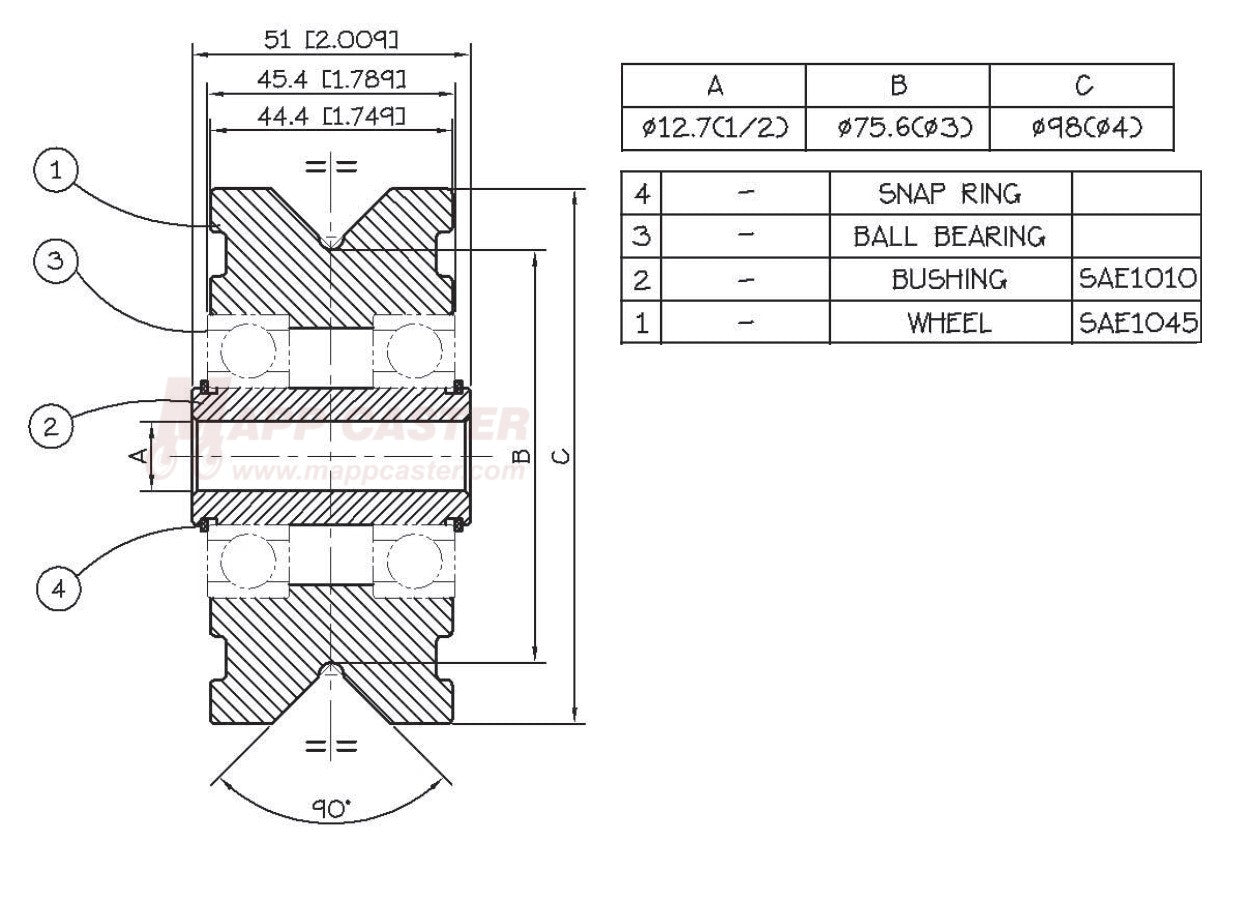

Forged V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-Groove. Made from forged steel, these wheels are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.
* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.
Specifications:
| Load Capacity (lbs.): 1250 |
Link to Matching Rigid Brake Caster:Â 146FVG420RB |
| Wheel Diameter:Â 4" | Wheel Durometer: N/A |
| Tread Width:Â 2" |
Wheel Color: Silver |
| Wheel Type: Forged Steel V-Groove | Swivel or Rigid Caster: Swivel |
|
Wheel Bearing Type: Precision Ball Bearing |
Swivel Radius: 7-11/16"Â |
| Overall Height:Â 5-5/8" | Swivel Construction:Â Â Double Ball Raceway - 5/8" Kingpin |

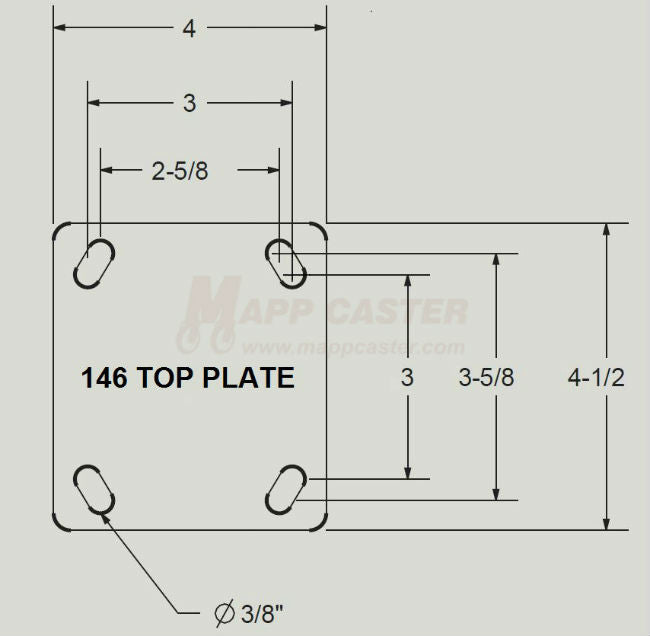

| Temp Range: - 45°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width:Â 7/8" | Bolt Hole Pattern:Â 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth:Â 7/16" | Mounting Bolt Size:Â 3/8" or Smaller |
| Link to Replacement Wheel: PAH108 | Weight: 8.39 Lbs |
